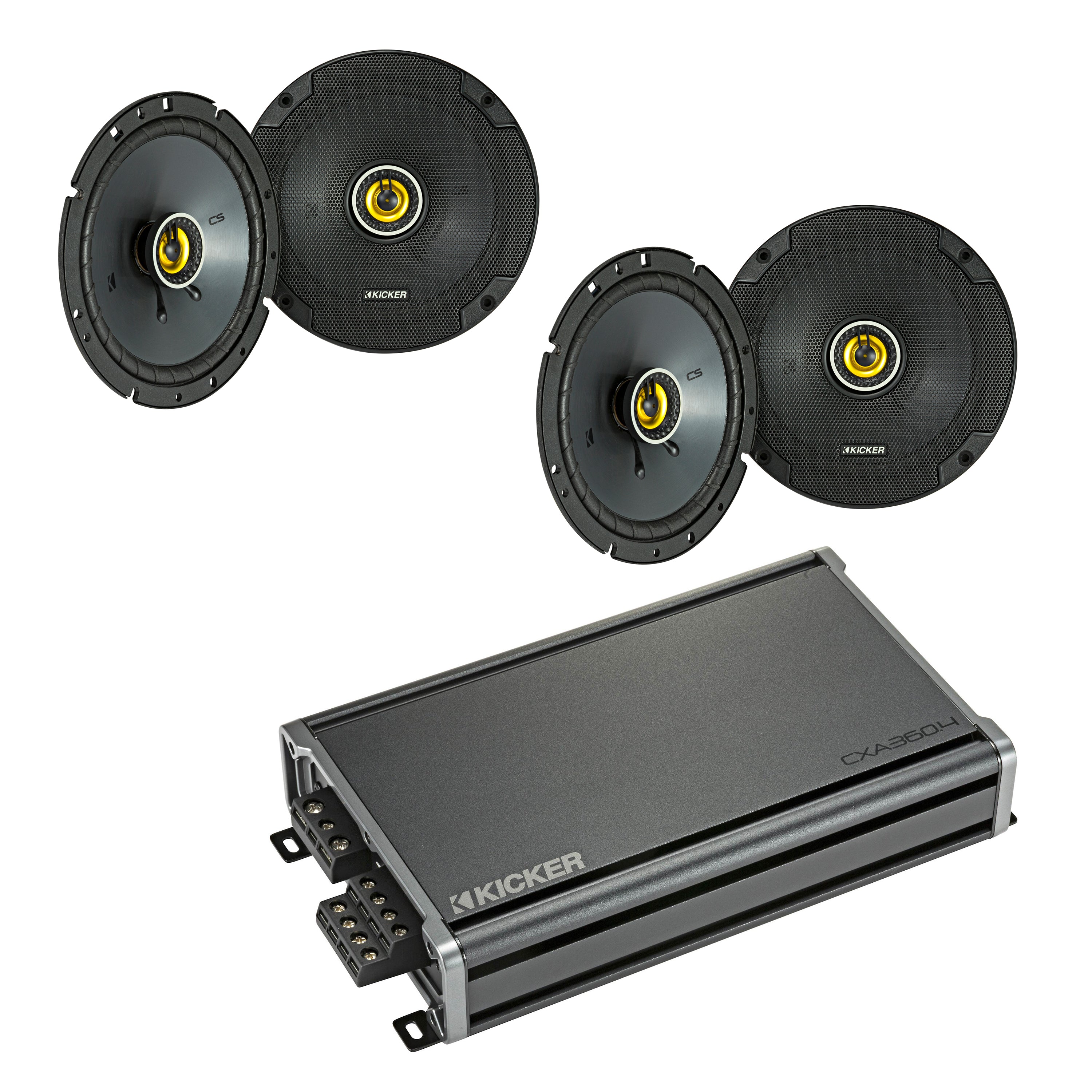

Kicker 46CSC674 6.75" x2 Pairs Speakers + Kicker 46CXA360.4T Amplifier Bundle
- Speaker Highlights
- Speaker Features
- Speaker Specifications
- Amplifier Highlights
- Amplifier Features
- Amplifier Specifications
- Fit Guide - Vehicle Compatibility Lookup
- Returns & Shipping

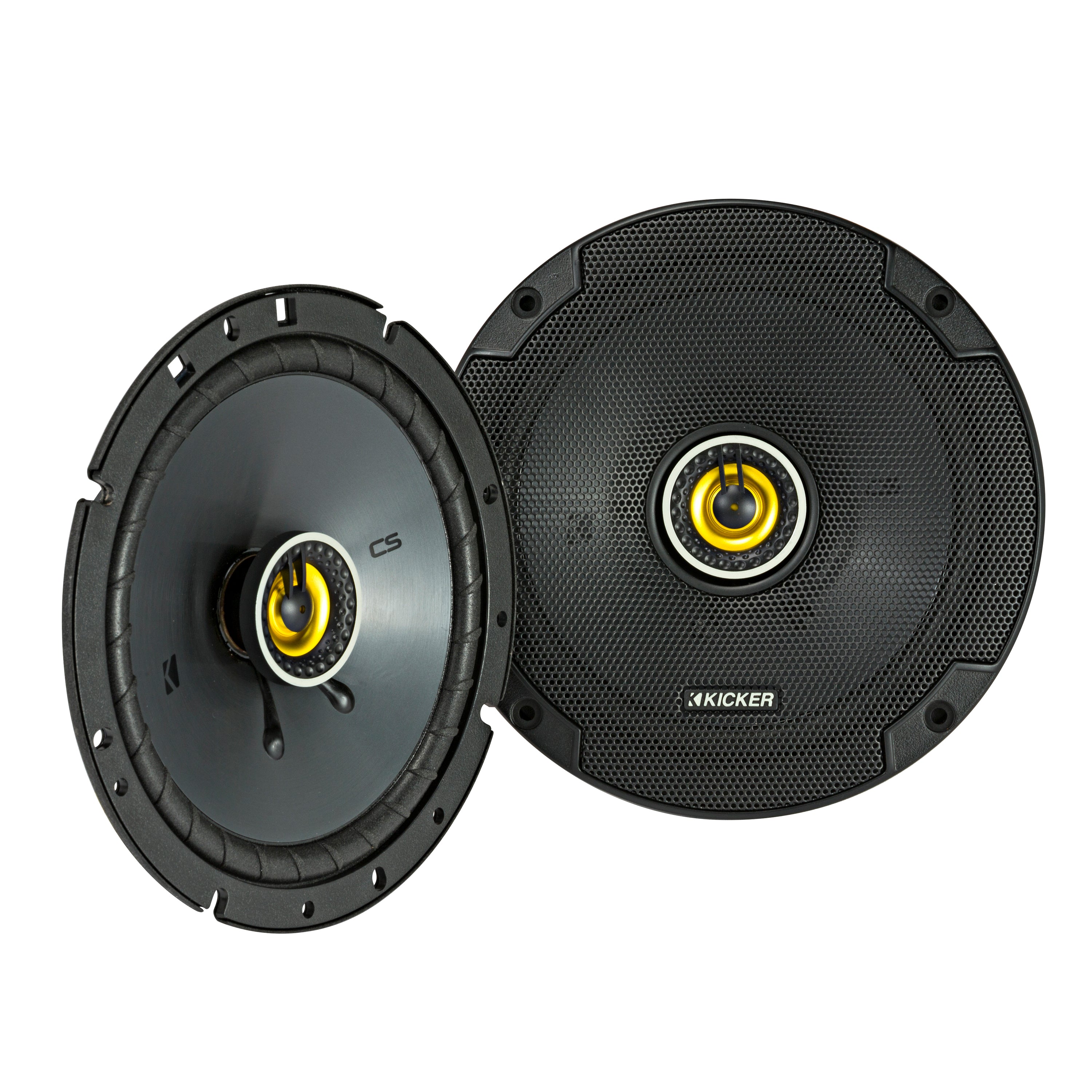

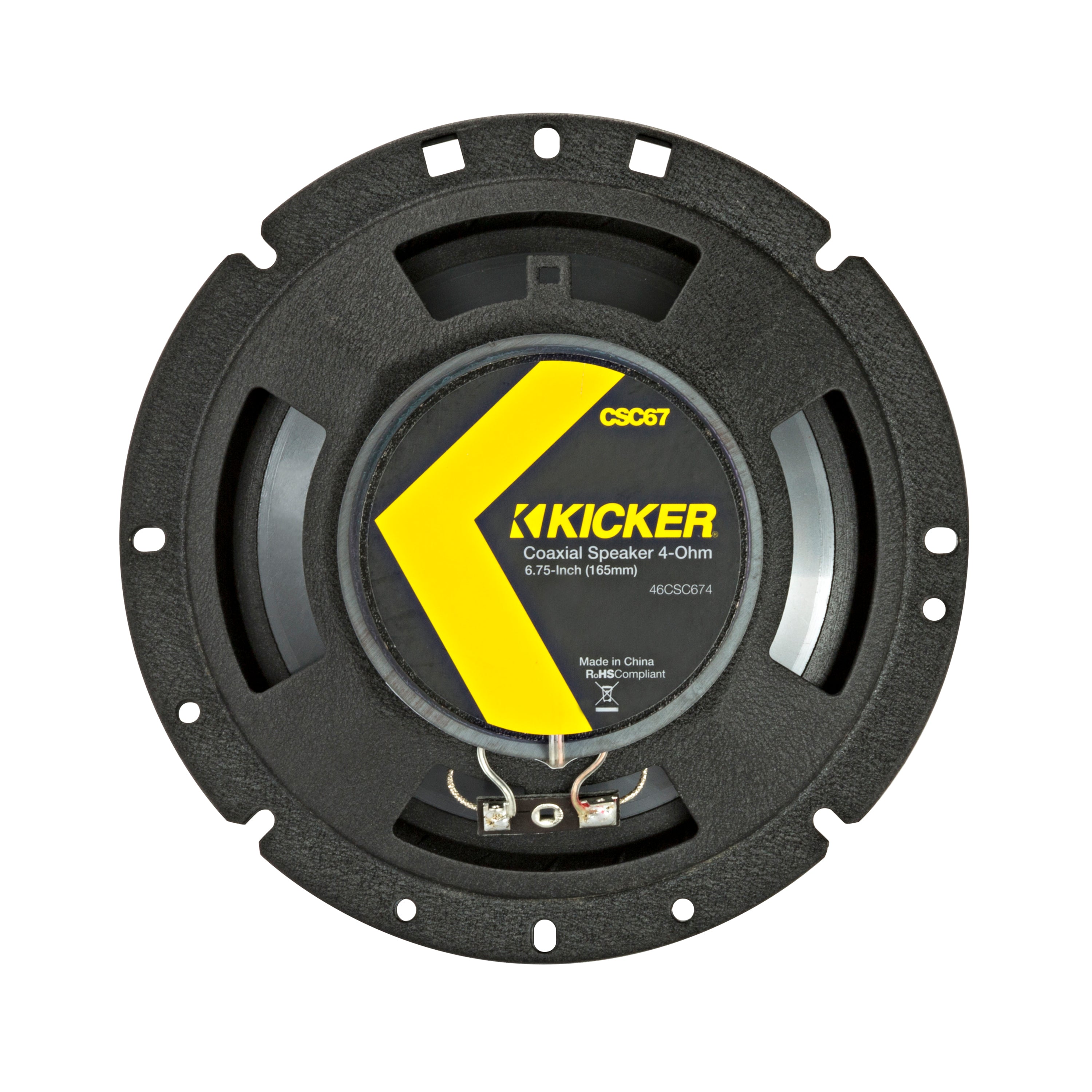

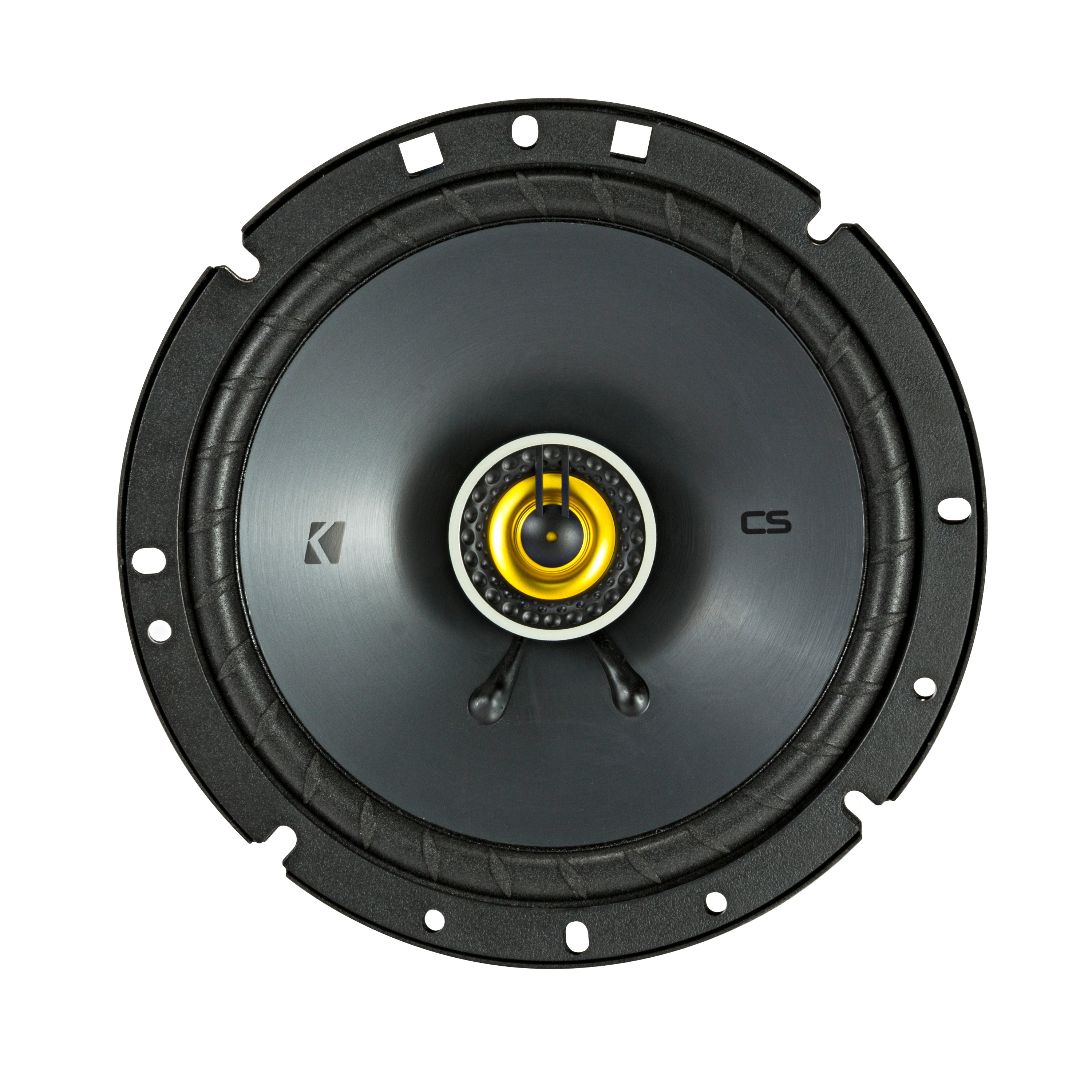

CS-Series 6.75-inch Coaxial Speakers are the perfect way to upgrade your factory speakers.
CS-Series Coaxials deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. The stamped-steel framework supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.
These CS speakers work best with 100 watts of recommended power.
- Fits nearly every car made
- Zero-protrusion tweeters to fit nearly any factory depth
- Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
- UV-treated poly-foam surround resists heat or direct sunlight
- Large woofer magnet in a heavy-duty motor for ultra-clean bass
- PEI-tweeter construction provides superb clarity
- Neodymium tweeter magnets allow for increased volume in high frequencies

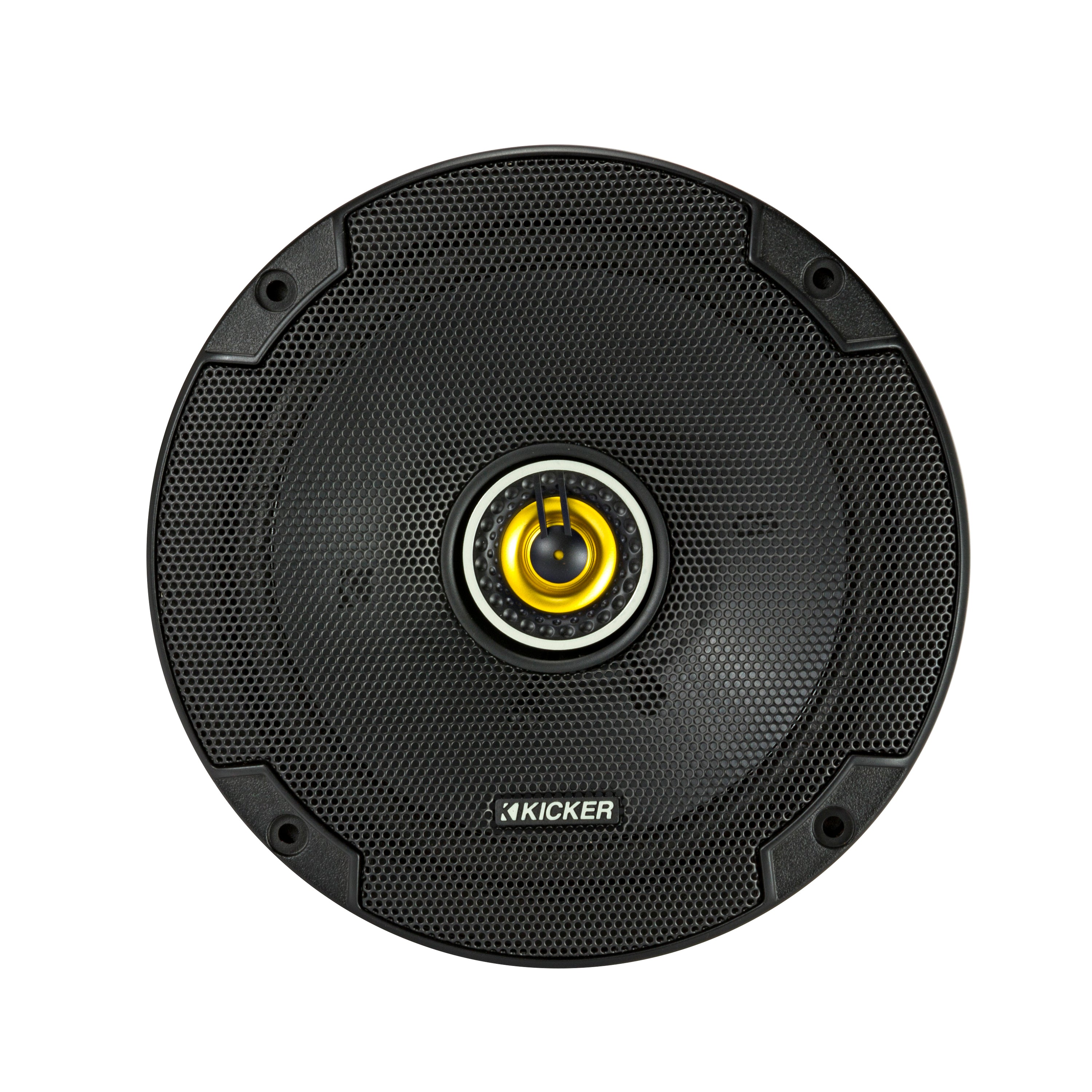

- Steel mesh grilles included for speaker protection
|Woofer Size||6 ¾ in / 165 mm|
|Tweeter Size||½ in / 13 mm|
|DC Resistance||3.3 ohms|
|Peak Power||300 Watts|
|Continuous Power||100 Watts RMS|
|Sensitivity||dB @ 1W, 1m: 90|
|Effective Frequency Range||40-20k Hz|
|Mounting Hole diameter||5.5 in / 140 mm|
|Top Mount Depth||³⁄₁₆ in / 4 mm|
|Bottom Mount Depth||1 ¹³⁄₁₆ in / 47 mm|
|Tweeter Magnet Material||Neodymium|
|Tweeter Dome Material||PEI|
|Tweeter Design||Balanced dome|
|Woofer Cone Material||Polypropylene|
|Woofer Surround Material||Polyester foam|

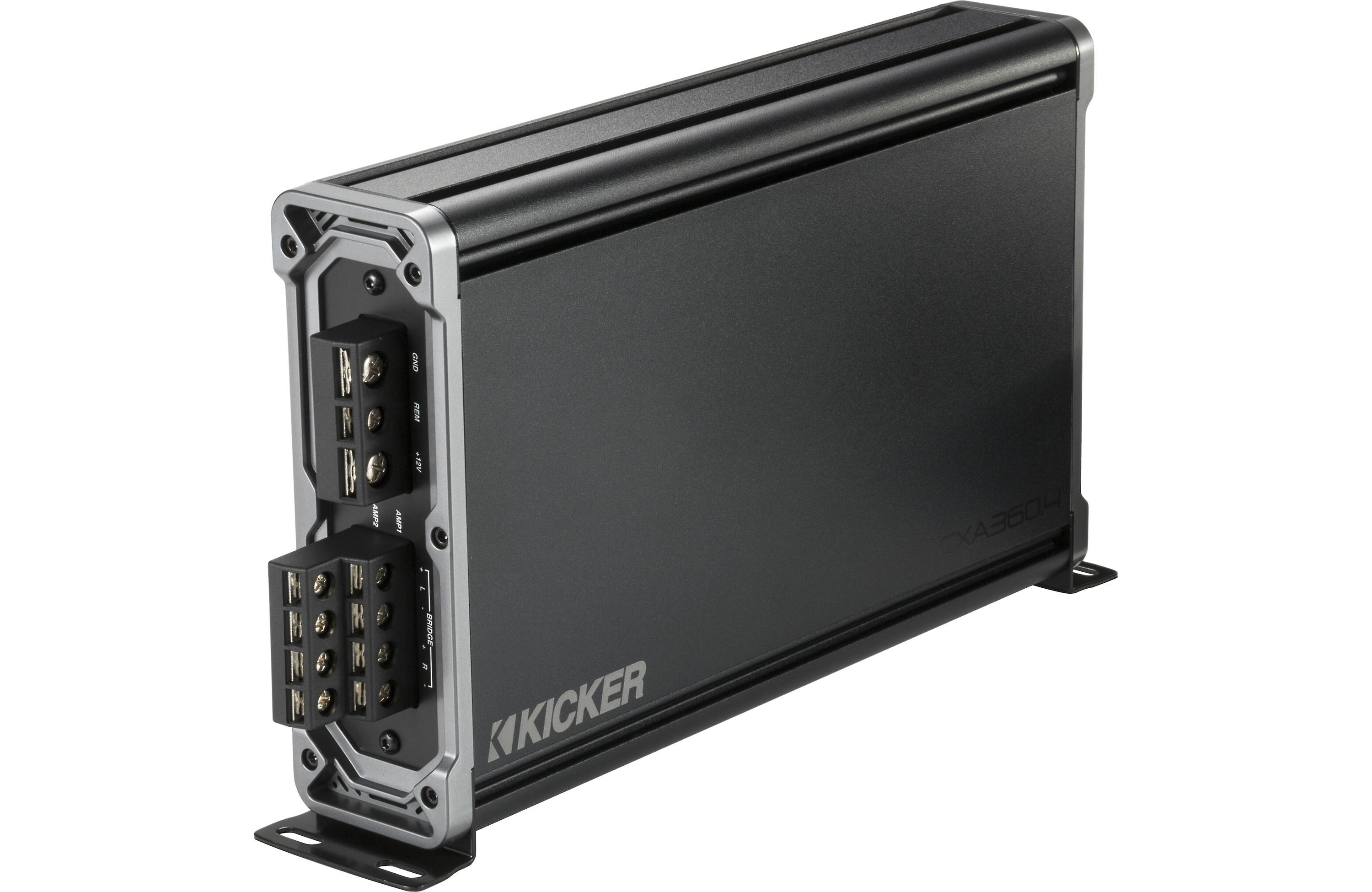

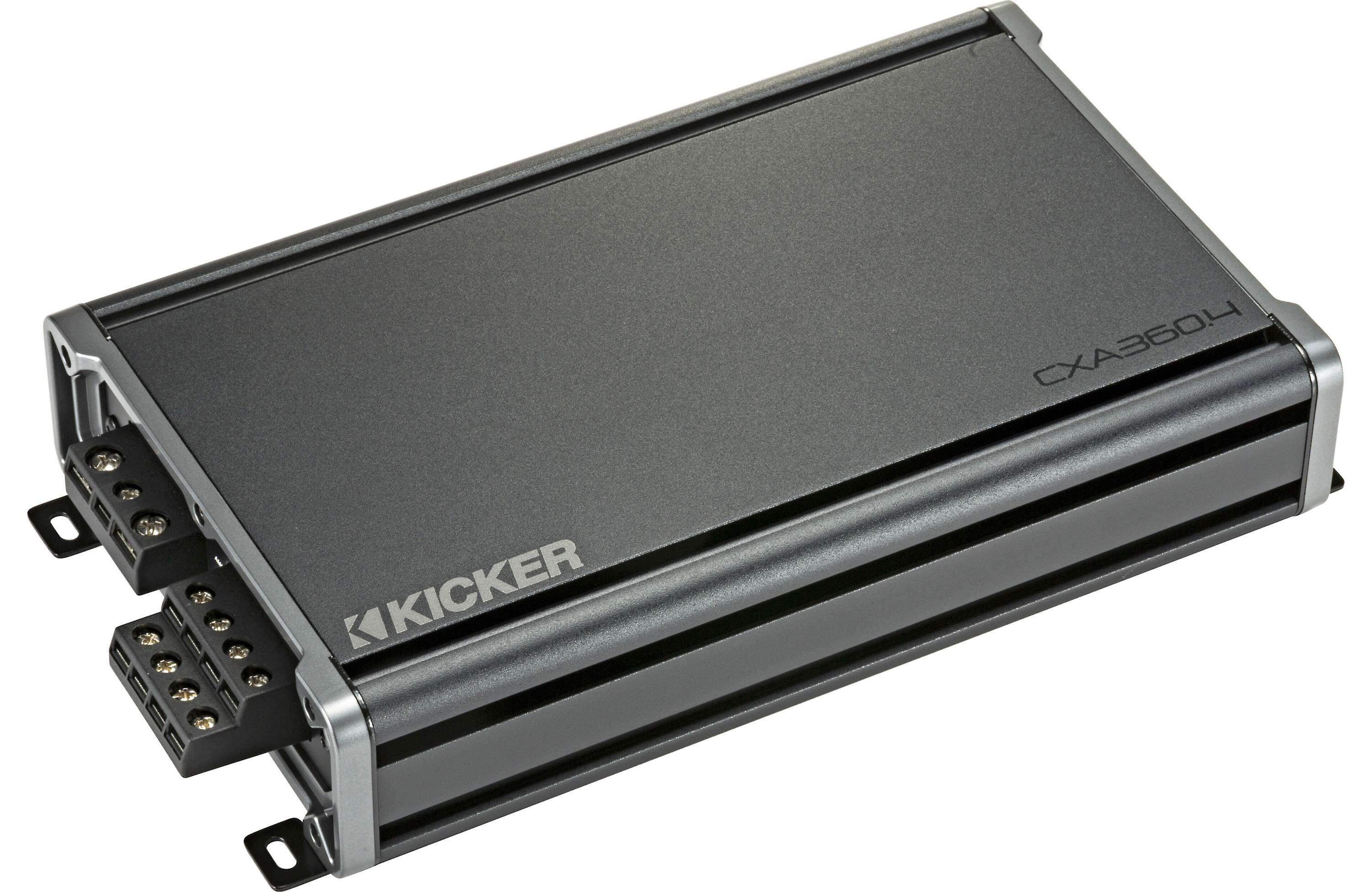

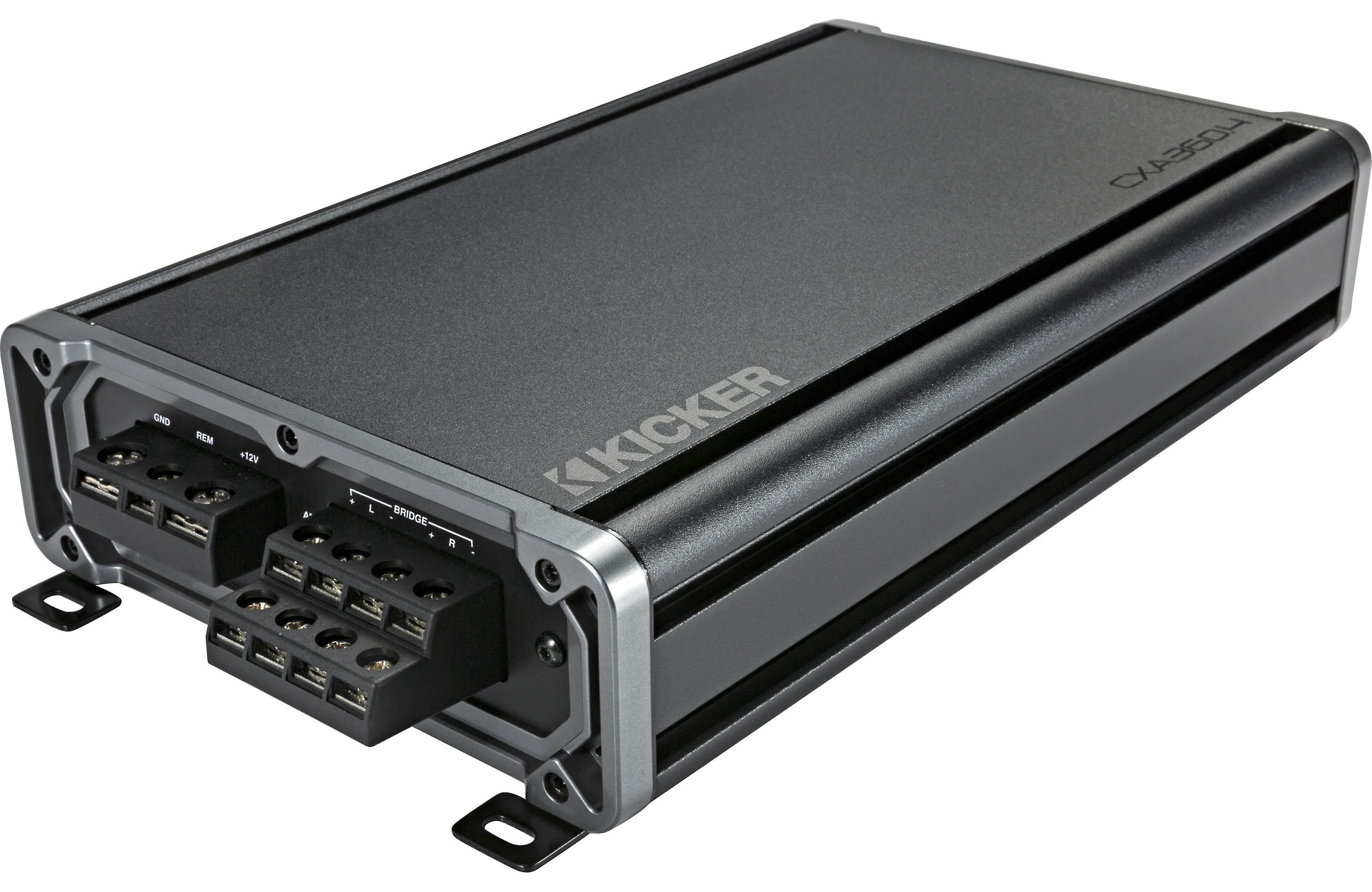

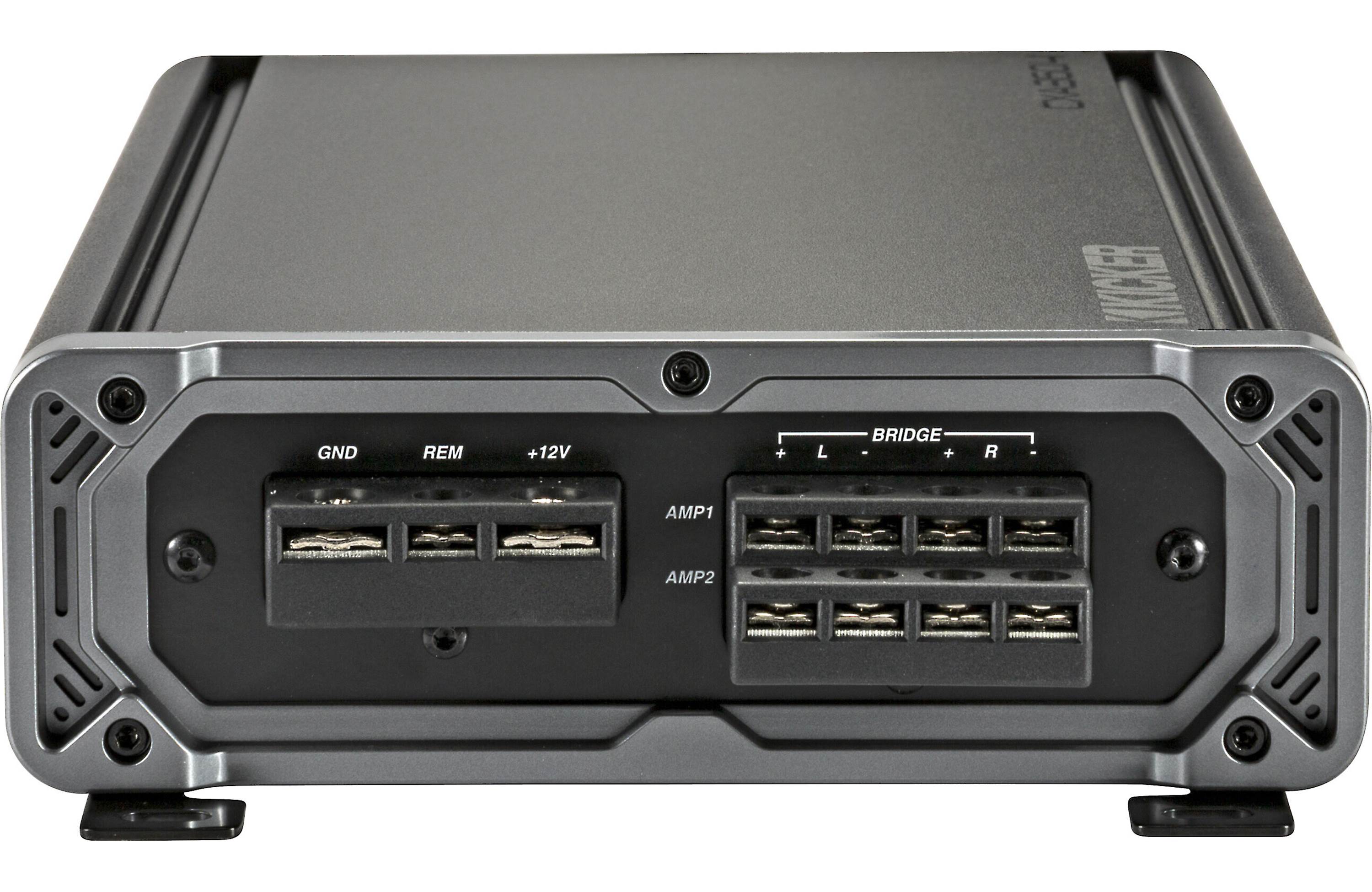

- 4-channel car amplifier
- 65 watts RMS x 4 at 4 ohms (90 watts RMS x 4 at 2 ohms)
- 180 watts RMS x 2 bridged at 4 ohms (4-ohm stable when bridged)
- CTA-2006 compliant
- Class AB amp technology
- Frequency response: 10-20,000 Hz

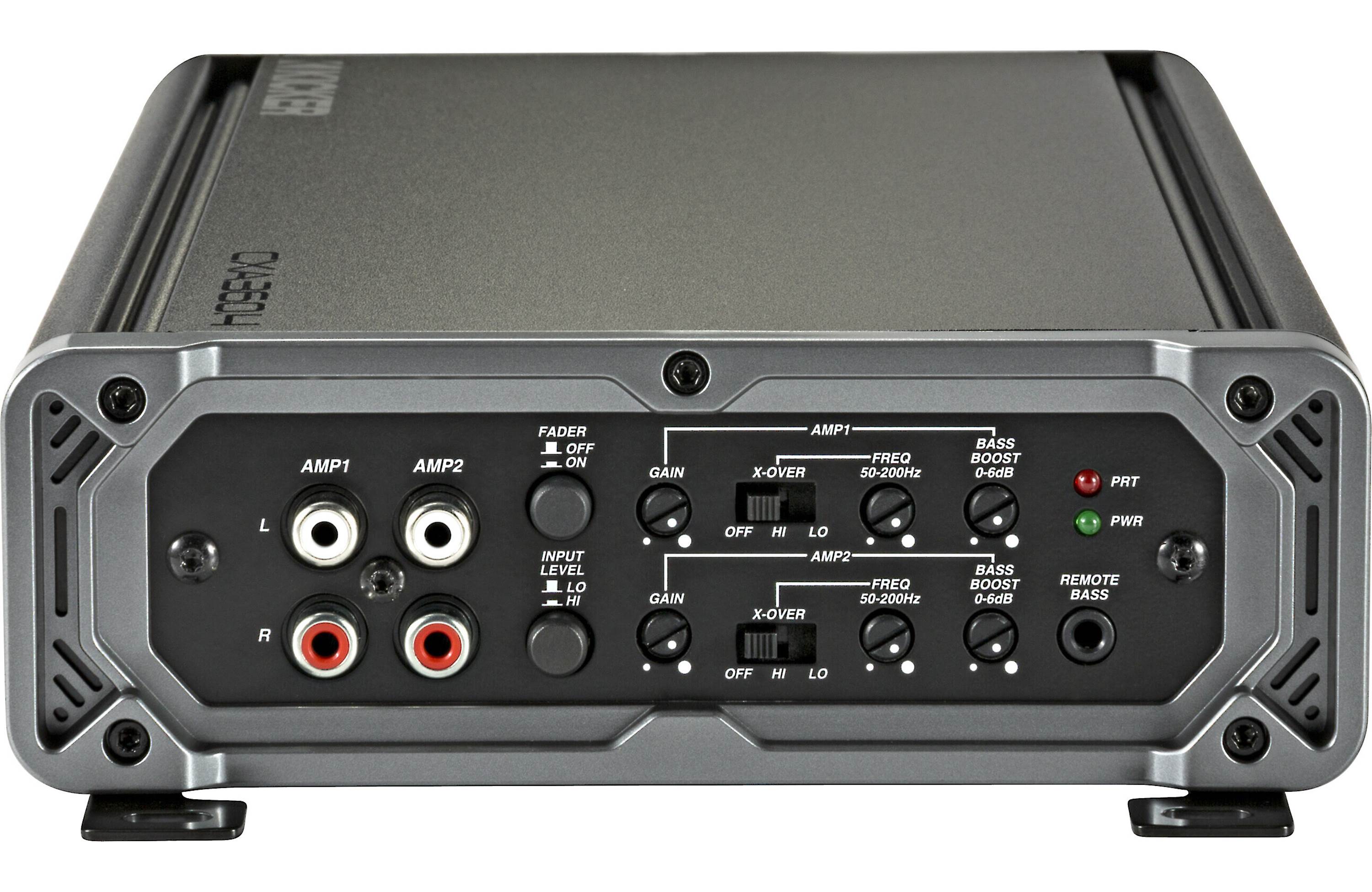

- Variable high- and low-pass filters (50-200 Hz, 12 dB/octave)
- Variable bass boost (0-6 dB at 40 Hz)
- Preamp and speaker-level inputs
- speaker-level inputs require speaker wire to RCA adapters
- Optional remote bass level controller available for rear channels
- 3-second delay for turn-on and turn-off
- Includes hardware for vertical mounting
- Wiring, fuse, and hardware not included with amplifier
- 8-gauge power and ground leads and a 40-amp fuse recommended
- Dimensions: 12 ⅞"W x 2 ⅜"H x 6 ¾"D
- Warranty: 2 years
|Low-Pass Crossover Frequency||50-200 Hz|
|Low-Pass Slope||12 dB / octave|
|High-Pass Crossover Frequency||50-200 Hz|
|High-Pass Slope||12 dB / octave|
|Bass Boost||0-6 dB|
|Bass Boost Frequency||40 Hz|
|Speaker Level Inputs||RCA|
|RMS Power Output (Watts x Channels)||65 x 4
|Peak Power Output (Watts x Channels)||180 x 4|
|Power at 2 Ohms (Watts x Channels)||90 x 4|
|Bridged Power (Watts x Channels)||180 x 2|
|Minimum Impedance Bridged||4|
|Minimum Impedance Unbridged||2|
|Best Frequency Response||10-20000 Hz|
|THD at Rated RMS Power||1%|
|Signal to Noise Ratio||75 dB|
