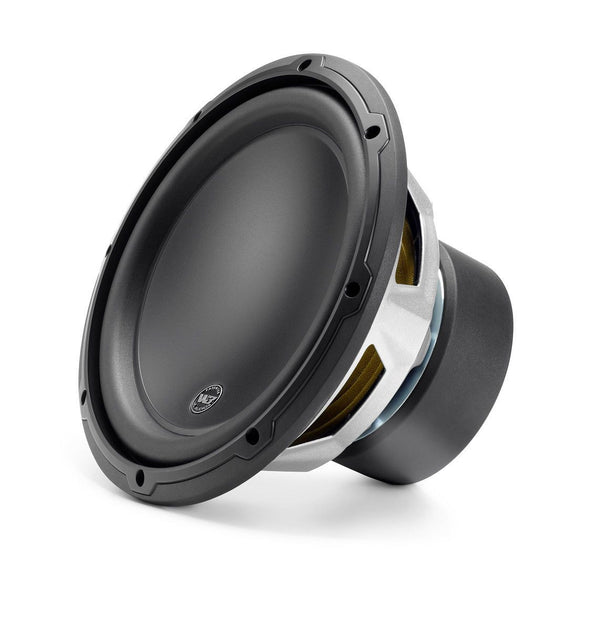

The 10W0v3 is a rugged performer with excellent excursion capability and linearity and an overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.

The 10W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

Specifications

General Specifications

Power Chart for 10W0v3 Subwoofer with ideal Power Range of 75 - 300 W

Continuous Power Handling (RMS)	300 W
Recommended Amplifier Power (RMS)	75 - 300 W
Nominal Impedance (Znom)	4 Ω

Physical Specifications

Lineart Bottom-View and Side-View of 10W0v3 Subwoofer with dimension labels A-E

Nominal Diameter	10.0 in / 250 mm
Overall Diameter (A)	10.52 in / 267 mm
Mounting Hole Diameter (B)	9.0625 in / 230 mm
Bolt Hole Circle Diameter (C)	9.7 in / 246.5 mm
Motor Outer Diameter (D)	5.05 in / 128 mm
Mounting Depth (E)	4.90 in / 124 mm
Driver Displacement	0.034 cu ft / 0.96 L
Net Weight	7.50 lb / 3.40 kg

Parameters

Free Air Resonance (Fs)	32.09 Hz
Electrical “Q” (Qes)	0.64
Mechanical “Q” (Qms)	10.752
Total Speaker “Q” (Qts)	0.604
Equivalent Compliance (Vas)	1.095 cu ft / 31.01 L
One-Way Linear Excursion (Xmax)*	0.45 in / 11.4 mm
Reference Efficiency (no)	0.15%
Efficiency (1 W / 1 m)**	84.07 dB SPL
Effective Piston Area (Sd)	48.909 sq in / 0.0316 sq m
DC Resistance (Re)	4.280 Ω
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. ** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Sealed Enclosure Specifications

Lineart diagram of empty sealed enclosure with Height (H), Width (W) and Depth (D) and port length (L) and port inner-diameter (ID) dimension labels

Wall Thickness	0.75 in / 19 mm
Front Baffle Thickness	0.75 in / 19 mm
Volume (net int.)	0.65 cu ft / 18.41 L
External Width (W)	18 in / 457 mm
External Height (H)	11 in / 279 mm
External Depth (D)	9 in / 229 mm
F3	42.4 Hz
Fc	53.23 Hz
Qtc	1.002
Enclosure Notes * The W0v3’s employ a pole vent to remove heat and pressure from the inside of the speaker. This vent is located within the JL Audio badge at the rear of the speaker. A minimum distance of 0.5 in (13 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent. * The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure. * All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. * When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. * We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance. * All specifications are subject to change without notice. Safety Notice Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity. When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

Ported Enclosure Specifications

Lineart diagram of empty slot ported enclosure with physical specification labels

Wall Thickness	0.75 in / 19 mm
Front Baffle Thickness	0.75 in / 19 mm
Volume (net int.)	1.125 cu ft / 31.86 L
External Width (W)	23 in / 584 mm
External Height (H)	12 in / 305 mm
External Depth (D)	13.625 in / 346 mm
Internal Slot Port Width (SW)	1.25 in / 32 mm
Internal Slot Port Height (SH)	10.5 in / 267 mm
Internal Slot Port Length (SL)	32 in / 813 mm
Port Extension Length (EL)	18.25 in / 464 mm
Tuning Frequency (Fb)	30 Hz
F3	29.6 Hz
Enclosure Notes * The W0v3’s employ a pole vent to remove heat and pressure from the inside of the speaker. This vent is located within the JL Audio badge at the rear of the speaker. A minimum distance of 0.5 in (13 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent. * The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure. * All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. * When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. * We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance. * All specifications are subject to change without notice. Safety Notice Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity. When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
