Highlights

HIGH PERFORMANCE PARTS

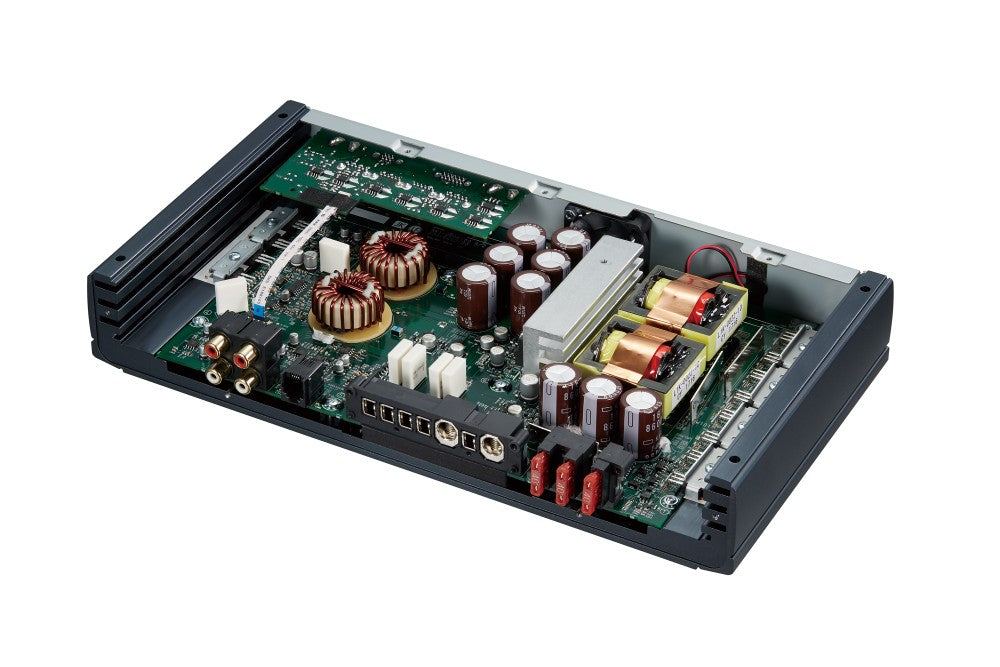

Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving high resolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.

DEEP BASS SOUND

By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.

ENHANCED SIGNAL TO NOISE RATIO

The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

SPECIALIZED CIRCUIT DESIGN

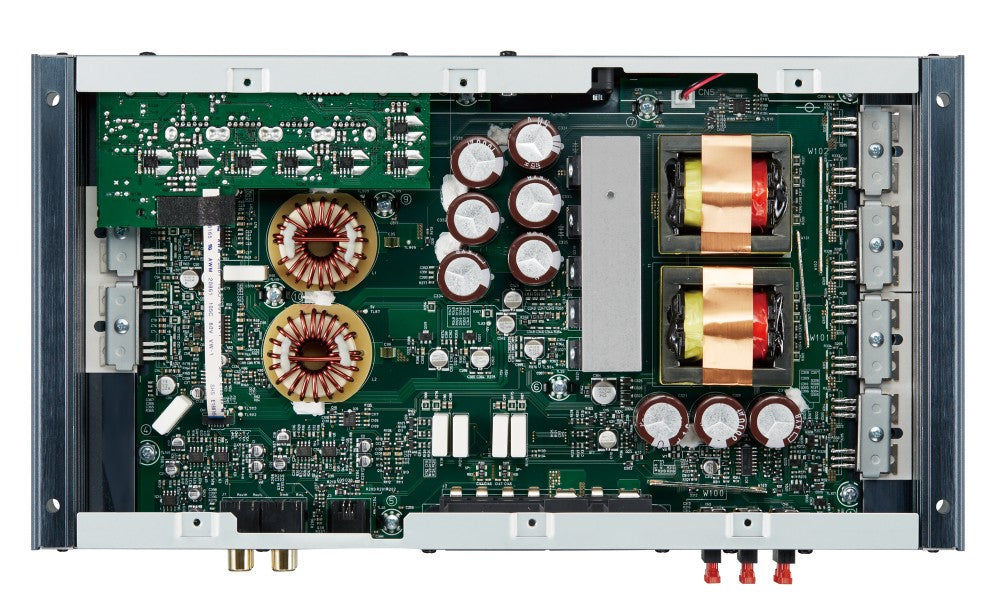

The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.

WIRED REMOTE CONTROL

The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.


Specifications
Amplifier Type Class D Mono Power Amplifier
Series eXcelon
Maximum Dynamic Power 600W at 4ohms and ≤ 10% THD + N
Continuous Power Output 500W at 4ohms and ≤ 1% THD + N
Signal to Noise 85dBA reference 1 Watt RMS
Maximum Power Output 2000W
RMS Power Output 1000W x 1 @ 1 ohm
600W x 1 @ 2 ohms
500W x 1 @ 4 ohms
Power Output (Rated Power at 14.4V)  500Watts RMS x [ch] (4 Ohms, 20-200Hz, ≤1.00% THD)
1000Watts RMS x [ch] (2 Ohms, 100Hz, ≤1.00% THD)
Signal to Noise Ratio 100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20Hz-200Hz (+0dB, -3dB)
Input Impedance 10k ohm
Speaker Impedance Bridged connection 4Ω (2Ω to 8Ω allowable)
Low-Pass Filter Built in Variable Low-Pass Filter (50Hz-200Hz, -12/-24dB/oct)
Infrasonic Filter Built in Variable Infrasonic Filter (15Hz-40Hz, -24dB/oct)
Bass Boost Built in Bass Boost Control (40Hz, 0dB-+18dB)
RCA Input Sensitivity 0.2[V] - 5.0[V]
Speaker Level Input Sensitivity 4.0[V] - 12.0[V]

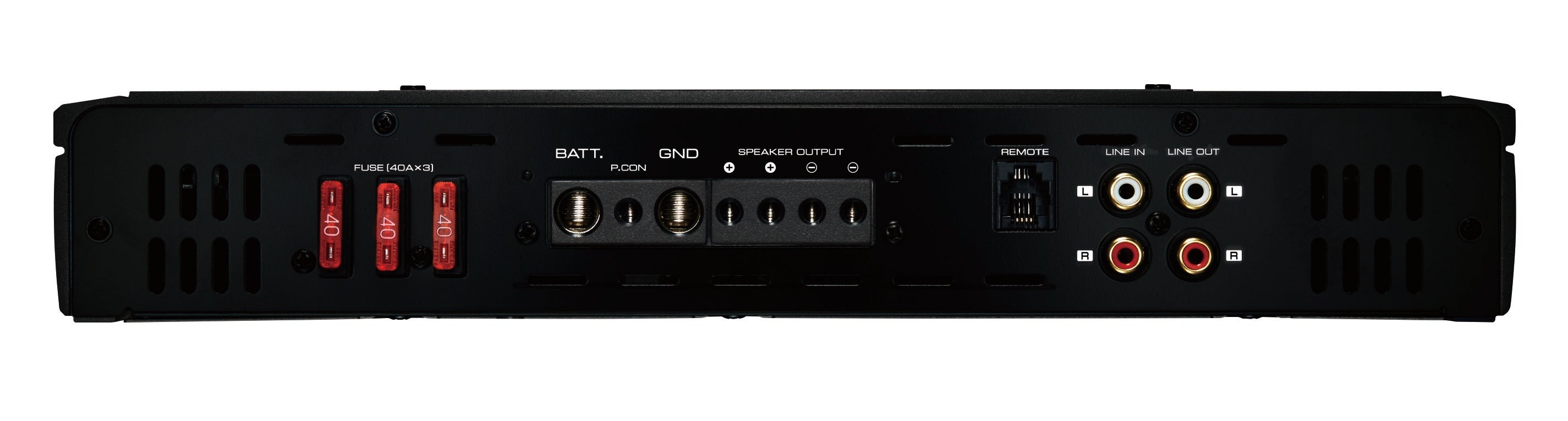

Battery & Ground XR Series Type Terminal (capable for 4 guage)(Ni)
P.CON XR Series Type Terminal (capable for 8 guage)
Speaker Output XR Series Type Terminal (capable for 8 guage)
Line In RCA (Gold Colored)
Line Out RCA (Gold Colored)
Speaker Input RCA IN A Channel
Dimensions(WxHxD) 320 [mm] x 51 [mm] x 169 [mm]
12-5/8 inch x 2 inch x 6-5/8 inch
Operating Voltage 14.4V(11-16V allowable)
Current Consumption 60 [A]
Warranty 2 Years (Authorized eXcelon Dealer)



In-Store Purchases

We greatly appreciate your business. To guarantee your total satisfaction, we offer the following return, warranty, and repair policies for in-store purchases:

Our staff has been directed to meet every customers’ expectations and make sure they are completely satisfied.  If for some reason they have failed to meet your and our expectations, we want to hear from you.  Please contact us online or by phone at (704) 398-1822.  We value the opportunity to serve you and are committed to your total satisfaction.

If you would like to contact the store where you made your purchase please click here

30-day refund on new factory sealed products, 30-day exchange on installed products.  Defective products covered by the manufacturer’s warranty will be exchanged within the first 30 days of purchase.  After 30 days, exchange versus repair is determined by the manufacturer’s warranty and varies by manufacturer.  We will exchange products beyond 30 days when the manufacturer’s warranty allows us to do so.

We offer a 30-day upgrade on purchased products.  You will be issued full credit towards an upgrade. Additional labor charges may apply.

Labor is non-refundable.  Installation parts such as amp kits, interconnect cables, dash kits, wiring harnesses and other installation items are non-refundable.

We offer a lifetime warranty on installation for as long as you own your car.  All warranties of labor and product are guaranteed to the original purchaser.

No refunds on SPECIAL ORDERED products.  A 20% deposit is required for all special orders, which is non-refundable.

We offer a layaway service that requires a 10% deposit.  Layaways must be picked up within 90-days.  If not picked up within 90 days the layaway deposit will become a store credit.  All layaway deposits are non-refundable, but may be used to purchase other products at the store.

Buyer assumes responsibility for all non DOT approved products, including but not limited to: Neon Lighting, Fog Lamps, Headlights, Taillights, and Window Tint.

We offer in-house repairs on most car audio equipment.  All repairs whether they are factory or aftermarket will have a 90-day warranty.  Product repairs are performed at a flat rate. Most repairs are covered under this flat rate though some exceptions may apply. You will be notified if there is going to be any additional charges.

Many products that we carry can be repaired in-house if.  Items purchased from us will be given express service when repaired in house. Any item purchased and installed by us will receive free removal of product for repair.

Gift cards are non-refundable and can only be used towards a purchase or purchases.

If you are not 100% satisfied with our products or service, please contact us immediately at the corporate level.


Online Purchases

Purchases made on freemanscarstereo.com are eligible for a return request within 30 days of order delivery. A return authorization number is required for all returns: any return that does not contain a return authorization number will be refused and returned to the sender. Full refunds are only issued for unopened and unused products. Carrier and shipment damaged items must be reported within 5 days of the package or product being received. Any package or product damaged claims will not be honored by us or the carrier if not reported within that time period.

Refunds

> Full Refunds

In order to be eligible for a refund, item(s) must be unused, unopened, and in the same condition in which it was received. There is no restocking fee for brand new/unopened/sealed items.

Customers will receive a return confirmation email within 1-2 business days that will confirm receipt of their return and confirm whether or not that return will be eligible for a refund. Approved refunds will be processed automatically via a credit back to the customer’s original payment method.

> Partial Refunds

Any item that is damaged, has missing parts, or is not in its original condition is subject to a restocking fee of up to 50% of the order total. If the box or seal is opened there is a 20% restocking fee.

Installed, used, or damaged items may not be eligible for return or, will incur a restocking fee. These situations include but are not limited to the following:

  • Any sign of use - including signs of installation, scratches, physical marking, screw holes, or similar.
  • Tags, stickers, or other manufacturer labels removed or tampered with.
  • Missing parts or the original product packaging is damaged.
  • A product that is returned bearing a serial number that does not match the serial number of the product shipped by Freeman’s Car Stereo.
  • Physical damage from drops, liquid, mishandling or similar.
  • Damage due to improper return packing by customer.
  • Mounted or used subwoofer enclosures and speaker boxes.
  • Blown, punctured or fried speakers, subwoofers, and amplifiers.



> Late or Missing Refunds

Refunds can take a week or longer to post to your account depending on your bank. If you haven’t received a refund yet, please contact your credit card company or bank. If your refund has still not been posted within 2 weeks of being issued please contact us via email: esales@freemanscarstereo.com.



> Online Gift Returns

If the item was marked as a gift when purchased and shipped directly to the gift recipient, the gift recipient will receive a store credit for the value of the return. Once the returned item is received, a freemanscarstereo.com gift certificate will be mailed.



> How to Request A Return

1. Complete the Return Request Form to receive a return authorization number (RMA#). 2. All returns must have the return authorization number written on the outside of the box or the return may be refused. 3. Carefully package items and ship to the following address:

Freeman’s Car Stereo
Attn: Returns (RMA#)
18624 Northline Drive
Cornelius, NC 28031

All approved authorized returns are to be sent to this address for return processing and inspection. Customer is responsible for paying for return shipping costs.

Warranty Exchanges*

We follow all manufacturer’s policies regarding the processing of warranties. Warranty exchanges or repairs are subject to eligibility periods based on purchase date as well as specific manufacturer policy.

Missing serial numbers, physical damage, or customer abused products will void warranties, repairs, and exchanges.

Send all approved authorized warranties for return processing and inspection to:

Freeman’s Car Stereo Attn: Returns (RMA#) 18624 Northline Drive Cornelius, NC 28031

Items That Cannot Be Returned

  • Gift cards
  • Opened and/or used installation parts will not be accepted for return or refund.
  • Products past it's return date window (30 days from when order is placed).

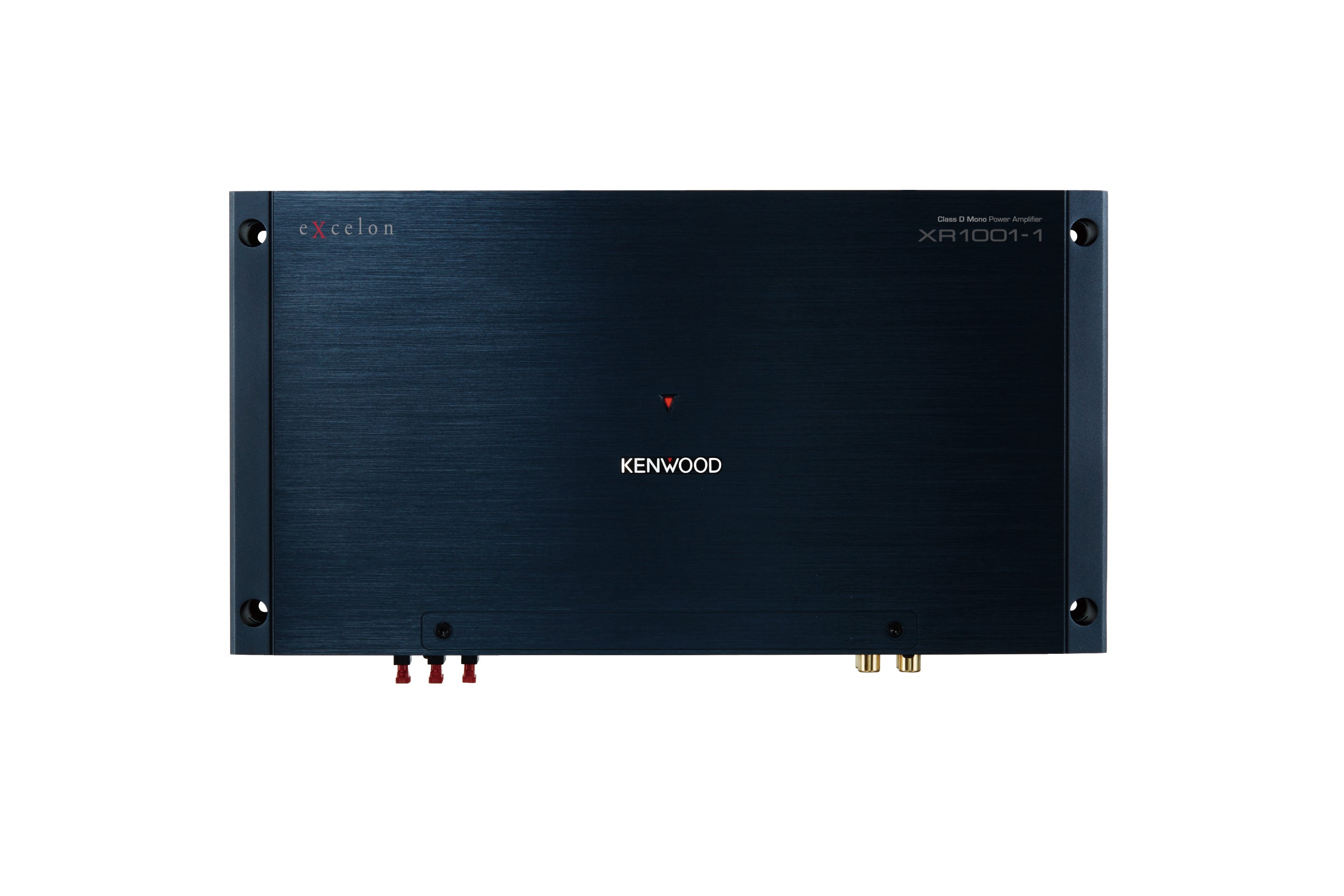

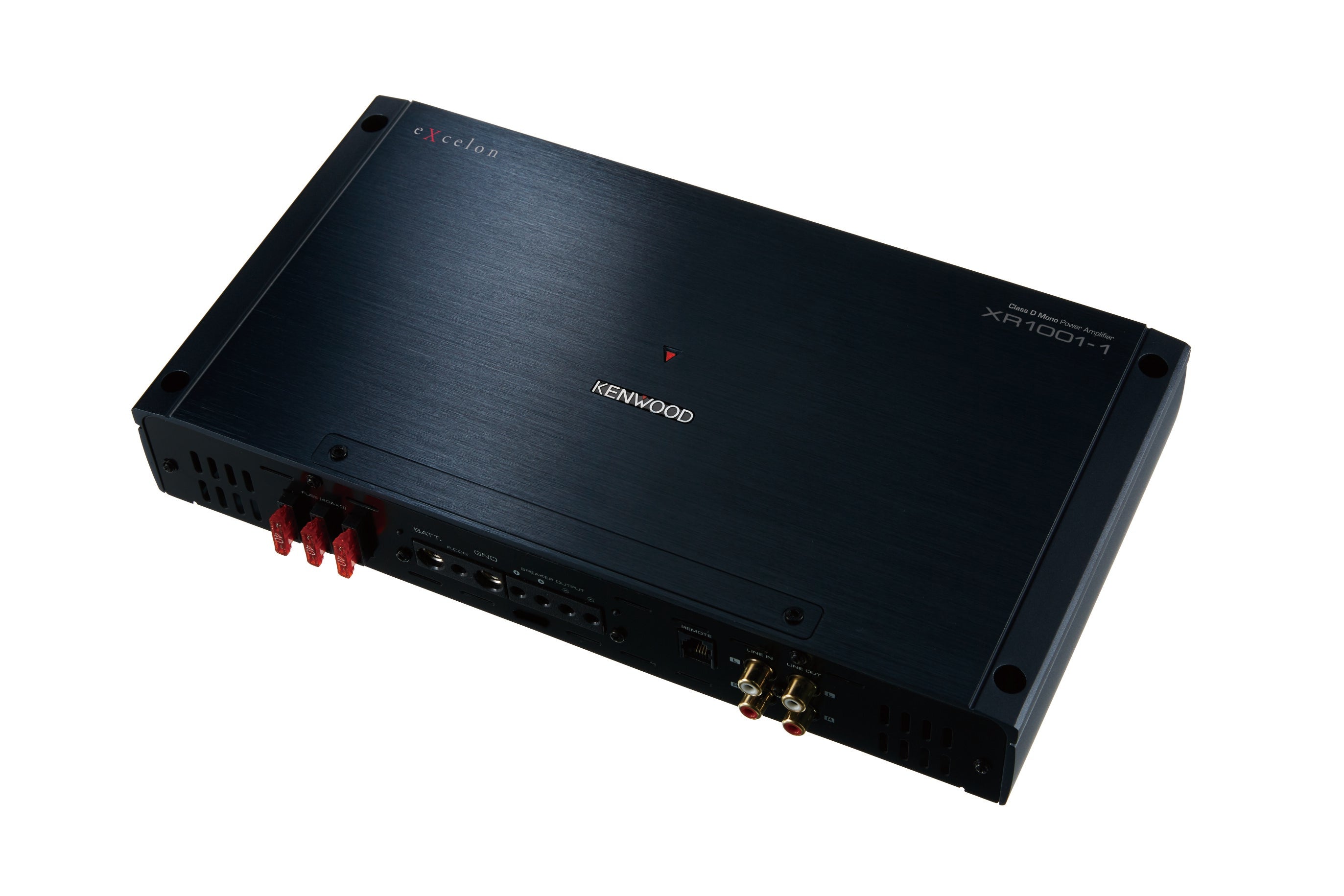

Kenwood XR1001-1 eXcelon Mono Subwoofer Amplifier 1000W RMS
