Availability: 5 In Stock
  • Peak Power 1300W
  • PP X-motif Cone with Diamond Array Pattern
  • Closed Yoke with Advanced Airflow Control
  • Stress Controlled Spider
  • Robust Thermal Management System
    Impedance (Ω) 4
    Peak Input Power (W) 1300
    RMS Power (W) 300
    Sensitivity (dB at 1m) 84
    Frequency Response (Hz) 33 ~ 300
    Size 250mm 10 inch
    Diaphragm Paper
    Cap Injection PP
    Surround Urethane
    Basket Steel
    Gasket ABS
    Magnet Ferrite φ134-φ70-t30
    Width 275mm 10 - 13/16 inch
    Height 275mm 10 - 13/16 inch
    Cut-out Diameter 230mm 9 - 1/16 inch
    Depth 142.2mm 5 - 5/8 inch
    Mounting Depth 124mm 4 - 7/8 inch
    Woofer without Gasket 4.0 kg 8.8 lb
    Gross Weight 4.6 kg 10.1 lb
    Weight of Magnet 1560 g 54.9 oz
    ACCESSORY Instruction Manual
    Warranty Card
    SPECIAL FEATURE Injection PP X-motif Cone with
    Diamond Array Pattern
    Closed Yoke with Advanced
    Airflow Control
    Aluminum Bobbin

    X-Motif Cone with Diamond Array Pattern

    X-Motif Cone controls resonance frequency and cuts unnecessary frequency, delivering powerful and solid bass response.

    Closed Yoke with Advanced Airflow Control

    The KFC-XW1041 has a robust thermal management system implemented. with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control.

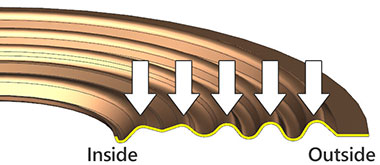

    Stress Controlled Spider

    Computer-optimized damper controls stress and increases mechanical durability.

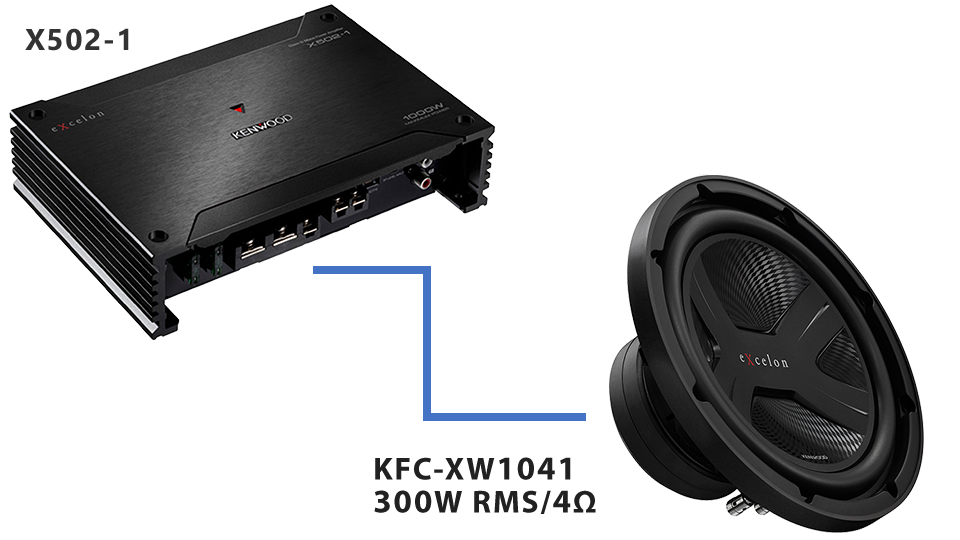

    The Best Match

    KFC-XW1041 Subwoofer is precisely power matched with the eXcelon X502-1 amplifier.

    Optional CA-101G Subwoofer Grille Ready

    Model Type Inner Volume W H D Mounting Hole SW SH SL
    KFC-XW1041 Sealed 0.65cft (18.4 liter) 14-3/4" (375mm) 12-3/4" (324mm) 9" (229mm) 9-3/16" (233mm)
    Ported 0.9 cft (25.5 liter) 18-1/4" (464mm) 12-1/4" (311mm) 13" (330mm) 1-1/8" (29mm) 10-3/4" (273mm) 25-1/2" (648mm)
