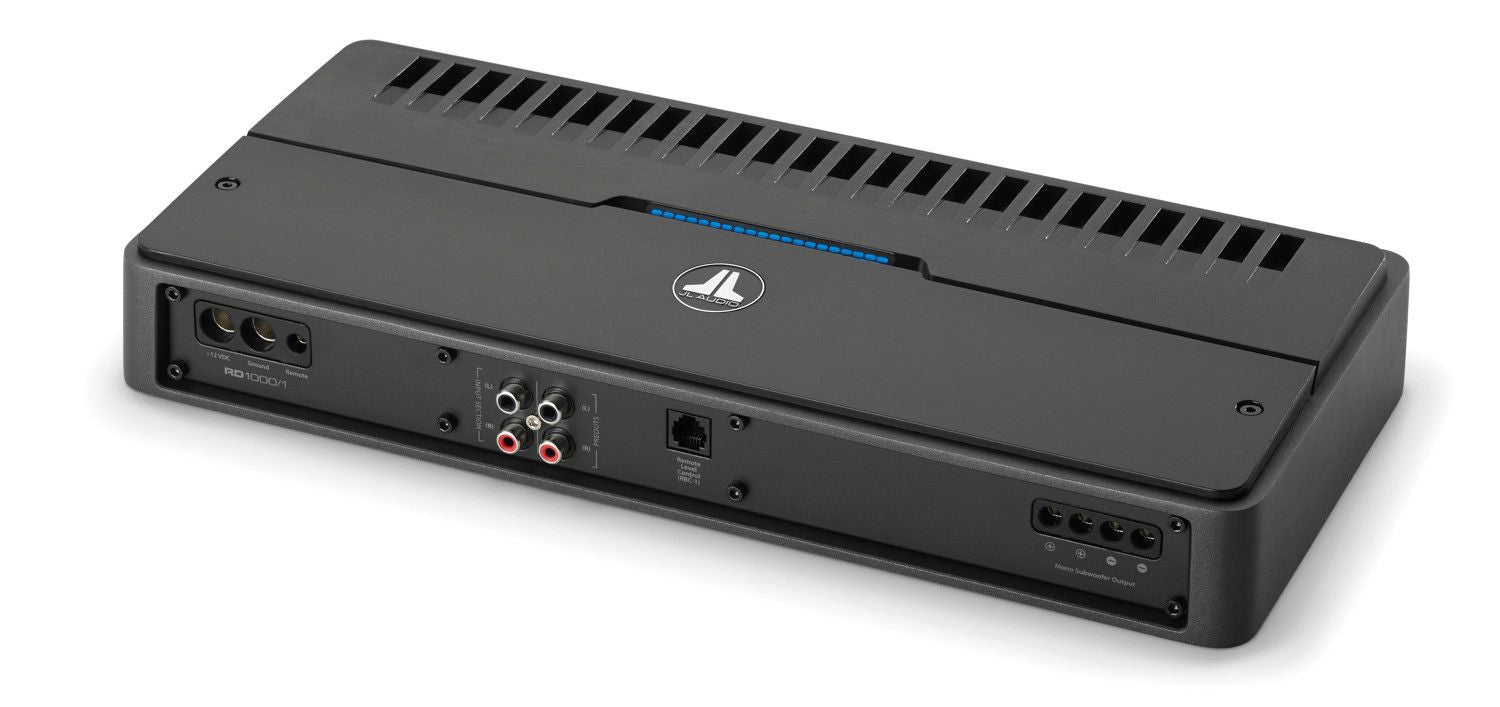

Monoblock Class D Subwoofer Amplifier, 1000 W x 1 @ 2 Ω / 600 W x 1 @ 4 Ω - 14.4V
Purpose-built for subwoofer applications, the RD1000/1 monoblock amplifier delivers 1000 watts of jaw-dropping bass output into 2 ohms (14.4V, 1% THD). At the heart of this ultra-sleek and compact power plant is JL Audio’s exclusive NexD™ Class D technology, permitting high power output with exceptional efficiency and low distortion.
For your convenience, all of the RD1000/1’s controls are located on top of the amplifier, beneath a protective cover, with all connections found along one side of its chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balance inputs are also onboard, capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.
The RD1000/1 is also equipped with an onboard LED-clipping indicator. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity setting, quickly and accurately, with no special equipment needed. The RD1000/1 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. Control of the subwoofer level from the driver’s seat is easily accomplished with the addition of the optional RBC-1 remote level control (sold separately).
Rated Continuous (RMS) Power @ 14.4 V
|@ 4 Ω||600 W RMS x 1|
|@ 3 Ω||800 W RMS x 1|
|@ 2 Ω||1000 W RMS x 1|
|@ 1.5 Ω||N/A|
Rated Continuous (RMS) Power @ 12.5 V
|@ 4 Ω||500 W RMS x 1|
|@ 3 Ω||650 W RMS x 1|
|@ 2 Ω||800 W RMS x 1|
|@ 1.5 Ω||N/A|
|Frequency Response||7 Hz - 500 Hz (+0, -1dB)|
|S/N Ratio, referred to highest rated power||>80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|S/N Ratio, referred to 1 W||>50 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|Damping Factor @ 4 Ω||>1000 / 50 Hz|
|Damping Factor @ 2 Ω||>500 / 50 Hz|
|THD+N @ Rated Power||<1% @ 2 Ω per Ch.|
|Input Voltage Range @ RCA Inputs||Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)|
|Min.Copper Power / Ground Wire Gauge||4 AWG wire|
|Fuse Rating||80 A (AFS, AGU or MaxiFuse™)|
|Filter Mode(s)||Low-Pass only|
|Filter Slope(s)||12 dB/octave|
|Filter Frequency Range||50 Hz - 500 Hz|
|Detented, Calibrated Filter Freq. Potentiometer||No|
|Filter Defeat Function||No|
|Infrasonic Filter||30 Hz, defeatable|
|Bass Boost EQ||Yes|
|Output Polarity Switch||No|
|Remote Subwoofer Level Control||Optional (RBC-1)|
|Remote Bass EQ Boost Control||No|
|Pass-Through Preamp Output||Buffered|
|Height (H)||2.13 in / 54 mm|
|Width (W)||14.66 in / 372 mm|
|Depth (D)||6.96 in / 177 mm|
