x2 Pairs of JL Audio M3-650X-C-GW Marine Speakers + JL Audio MM50 Marine Source Unit

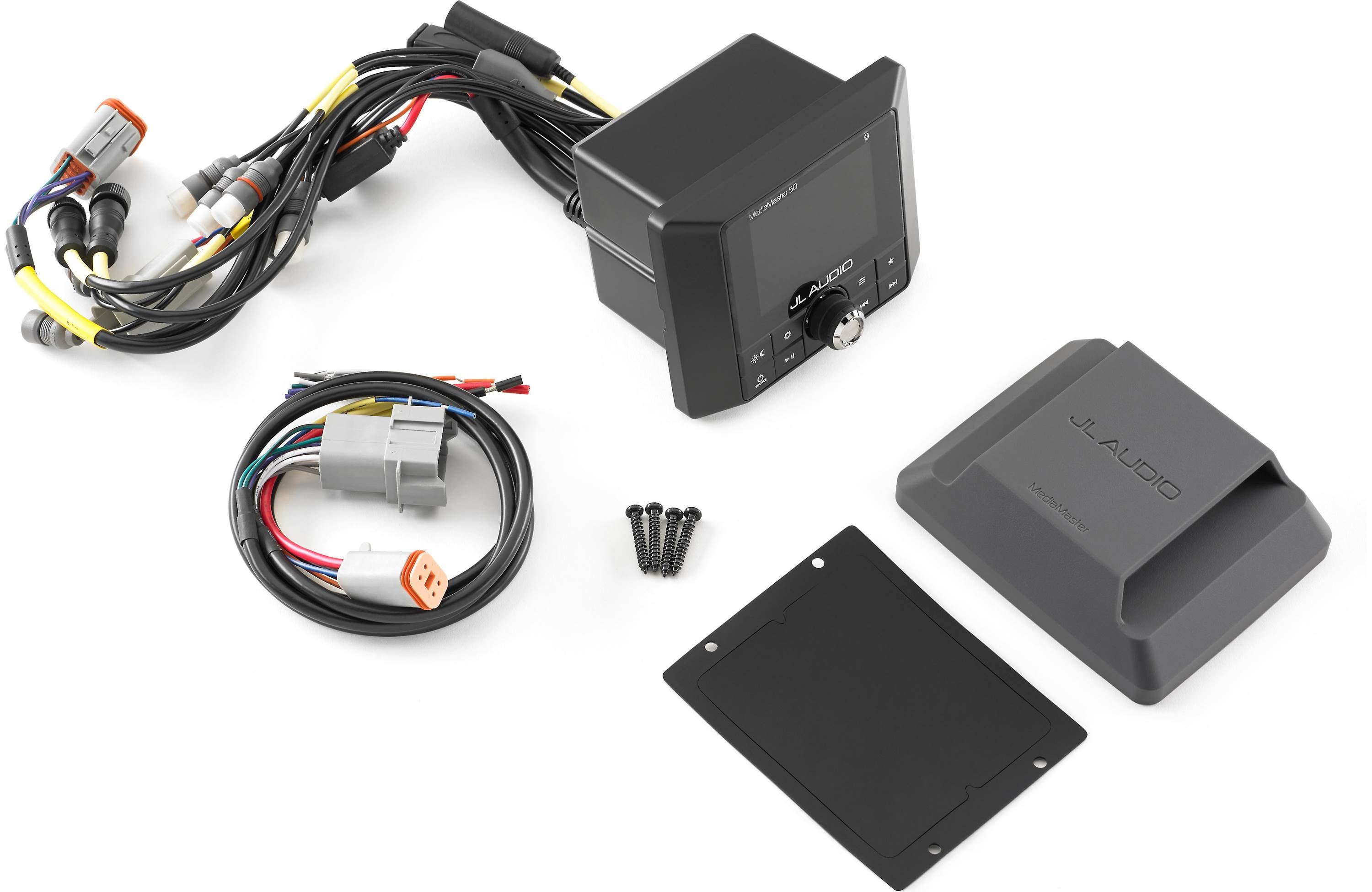

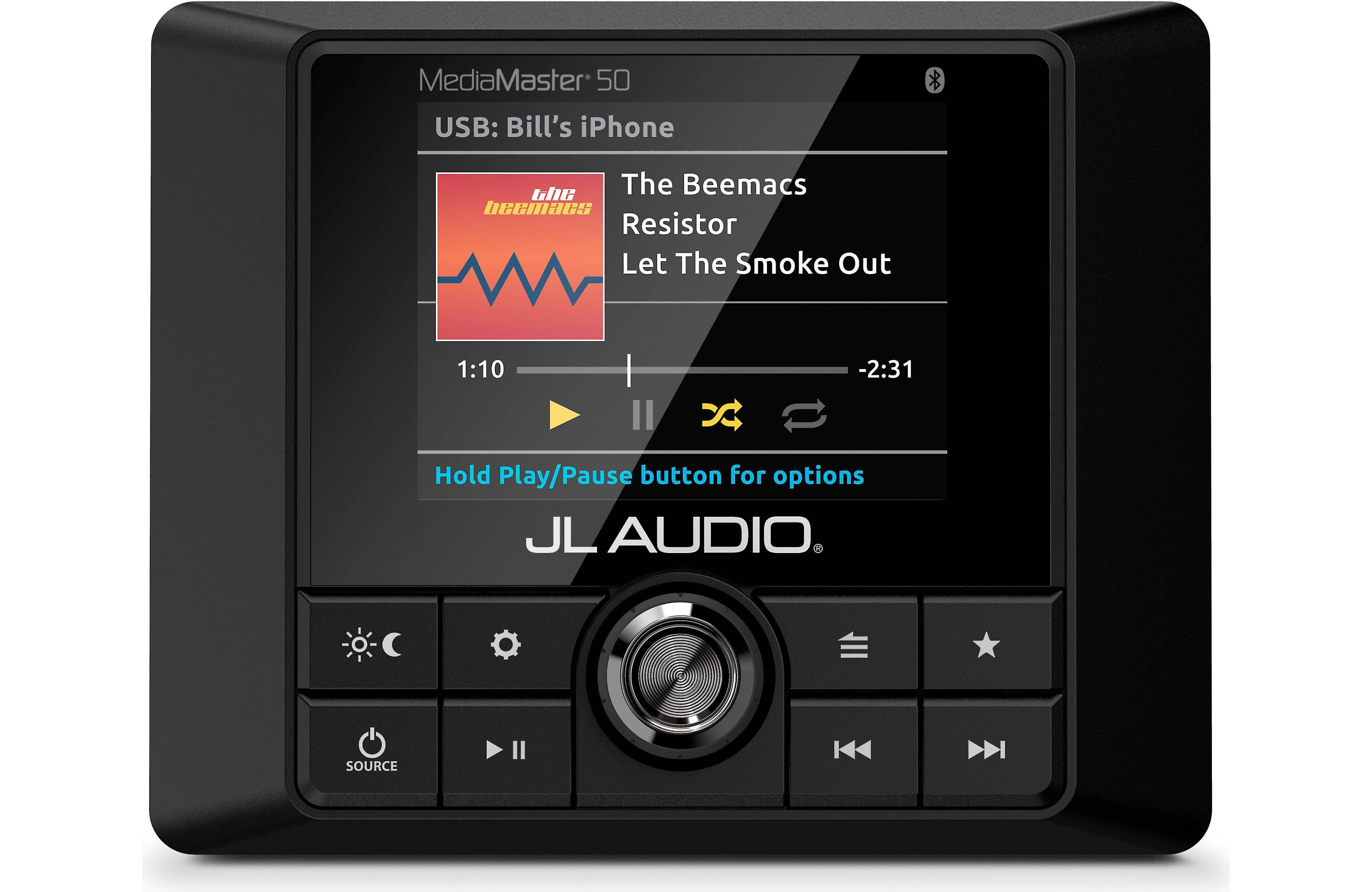

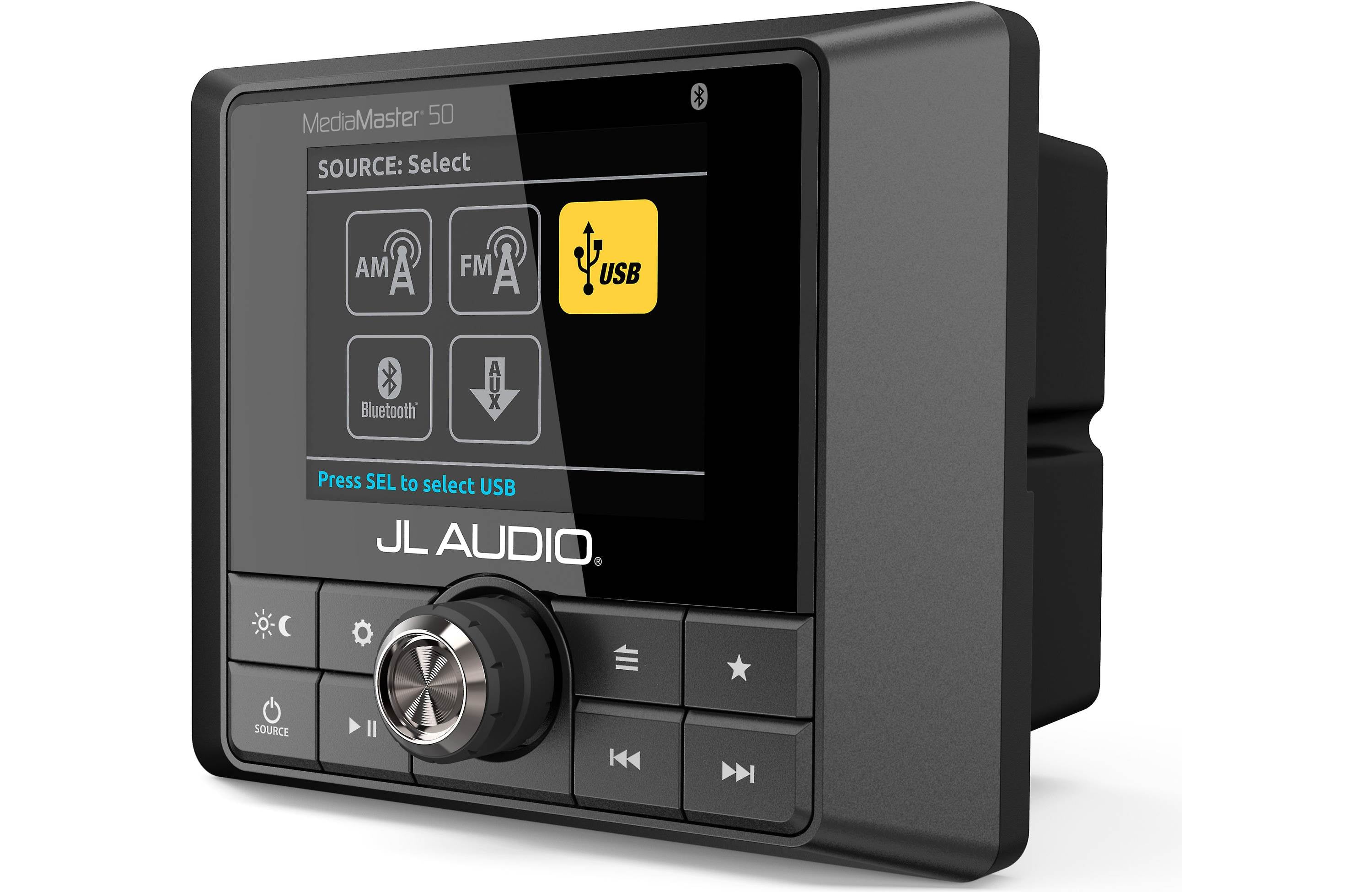

Source Unit Highlights
- Digital AM/FM Tuner with RDS (Radio Data System) – Displays extended FM program info, where available
- 18 Favorites – Store up to 18 of your favorite AM/FM stations for quick access
- Bluetooth® v2.1 – Receive top-quality wireless audio from compatible devices with playback control, from up to 35 ft. (11 m) away
- USB 2.0 direct digital connection for an iPhone® or USB storage device, with album cover art support and folder browsing capabilities
- Auxiliary inputs accept audio signals from any source with line-level outputs
- Conveniently charge your phone or media player with a 2.1 amp USB output
- NMEA 2000® Certified – Equipped with a NMEA 2000® connector (Micro-C), the MM50 interfaces directly with existing vessel networks and offers control functionality via a compatible MFD (Multi-Function Display) from Garmin, Lowrance and Simrad (refer to MFD manufacturer for device compatibility info) or MMR-40 NMEA 2000® Network Controller (sold separately).
- Remote controller connection delivers auxiliary control functionality from extended locations
- IP66 rated for real marine duty
- Protective Sun Cover included
Customizable Controls over three separate audio zones:
Level Control Mode delivers on-the-fly volume adjustments of all zones, together or individually. Each zone includes independent feature/control options, including:
- Variable: The volume knob adjusts all zones simultaneously, with independent control of each zone’s relative offset level.
- Fixed: Sets the output level of selected zones at a specific output voltage (4V, 2V or 1V RMS) that is not affected by the volume control.
- Off: Disables the output level of selected zones.
- Volume Limit: Allows you to set a custom, maximum, allowable volume level for each zone.
- Rename Zone: Permits the creation of custom names for each zone, or choose from a list or preset vessel location names.
- Name this Device: Give your MediaMaster® a custom-name to easily recognize it on paired Bluetooth® devices and connected MFDs.
- Independently adjustable offset volume level for each zone
- Subwoofer zone’s level and tone controls can be linked or set to proportionally track (follow) Zone 1 or 2 or disabled.
Tone Control Mode options allow customization of treble, midrange bass and balance settings as:
- Same as Zone 1: Links the controls with Zone 1.
- Independent Tone Control: Permits distinct tone control adjustments for the selected zone.
Versatile audio output options with onboard signal processing:
- 6-channels of audiophile quality, 4V RMS preamp level outputs from two independent main zones, plus a dedicated subwoofer zone; all zones feature a zero-clipping audio circuit, with self-limiting tone controls to prevent speaker system damage
- Built-in amplifier generates 100 watts of high-fidelity output (25W RMS x 4) to power two main zones
- Both main zone output types (speaker and preamp level) include a high-pass crossover feature with selectable frequency selection (off/60/80/100/150 Hz)
- Subwoofer zone outputs equipped with a 500 Hz low-pass crossover
Three remote controller options (each sold separately):
- MMR-20-BE Wired Remote Controller: Connect up to three remotes for control functionality from distant vessel locations, up to 75 ft. away.
- MMR-10W Wireless Remote Controller: Waterproof, 2.4 GHz, key-fob style remote delivers handheld control from up to 150 ft. away.
- MMR-40 NMEA 2000® Network Controller: Full-function controller with LCD display delivers full MM50 display and control functionality via NMEA 2000® networks.
Specifications
| Input Operating Voltage | 10 - 16 VDC |
| Standby Current Draw | 100 mA |
| Operating Current Draw | 15 A |
| Recommended Fuse Value | 15 A |
| Remote Turn-on Capacity | 500 mA (max) |
| Operating Temperature Range | -4 F to +158 F (-20 C to +70 C) |
| Display Size / Type | 2.8-inch / TFT LCD backlighted |
| Display Resolution | 320 x 240 |
| Output Channels | Zones 1&2: Two stereo pairs of RCA plugs (4V RMS) Sub: One mono pair of RCA plugs (4V RMS) |
| Output Zones | Zones 1&2: Variable, Fixed or Off Sub: 500 Hz Low-Pass only |
| Maximum Output Voltage | 4V RMS (Variable), Selectable 4V/2V/1V RMS (Fixed) |
Connectivity
| Tuner | |
| FM Tuner with RDS | 87.5 MHz to 107.9 MHz (0.2 MHz step) |
| AM Tuner | 530 kHz to 1710 kHz (10 kHz step) |
| NOAA Weather Band Tuner | 162.400 MHz to 162.550 MHz (0.025 MHz step) |
| Favorites | 18 presets across all tuners |
| Bluetooth® | |
| Profile | A2DP v1.2, AVRCP v1.4 |
| Core Specification | Version 2.1 + EDR |
| Codec | SBC |
| Connection Range | Up to 35 ft / 11 m |
| USB | |
| Interface | USB 2.0 host |
| Maximum Current Output | 2.1 A |
| Supported Audio Formats | MP3, WAV, WMA |
| Apple Compatibility | iPhone 5 or beyond (functionality contingent upon compatible iOS release) |

| Height (H) | 3.74 in / 95 mm |
| Width (W) | 4.65 in / 118 mm |
| Depth (D1) | 2.36 in / 60 mm |
| Depth (D2) | 3.67 in / 93 mm |
| Mounting Hole Height (A) | 3.12 in / 80 mm |
| Mounting Hole Width (B) | 3.74 in / 95 mm |

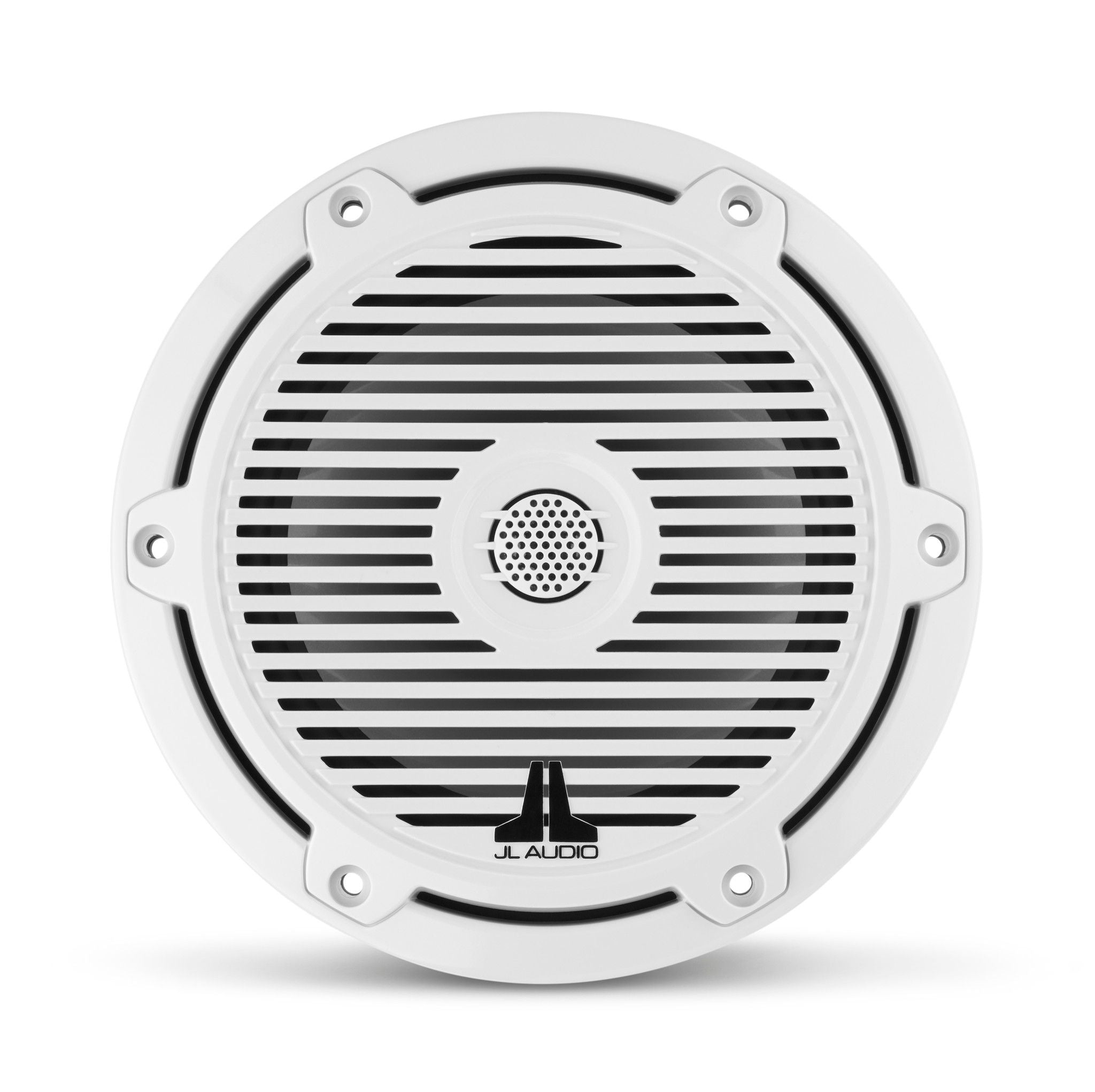

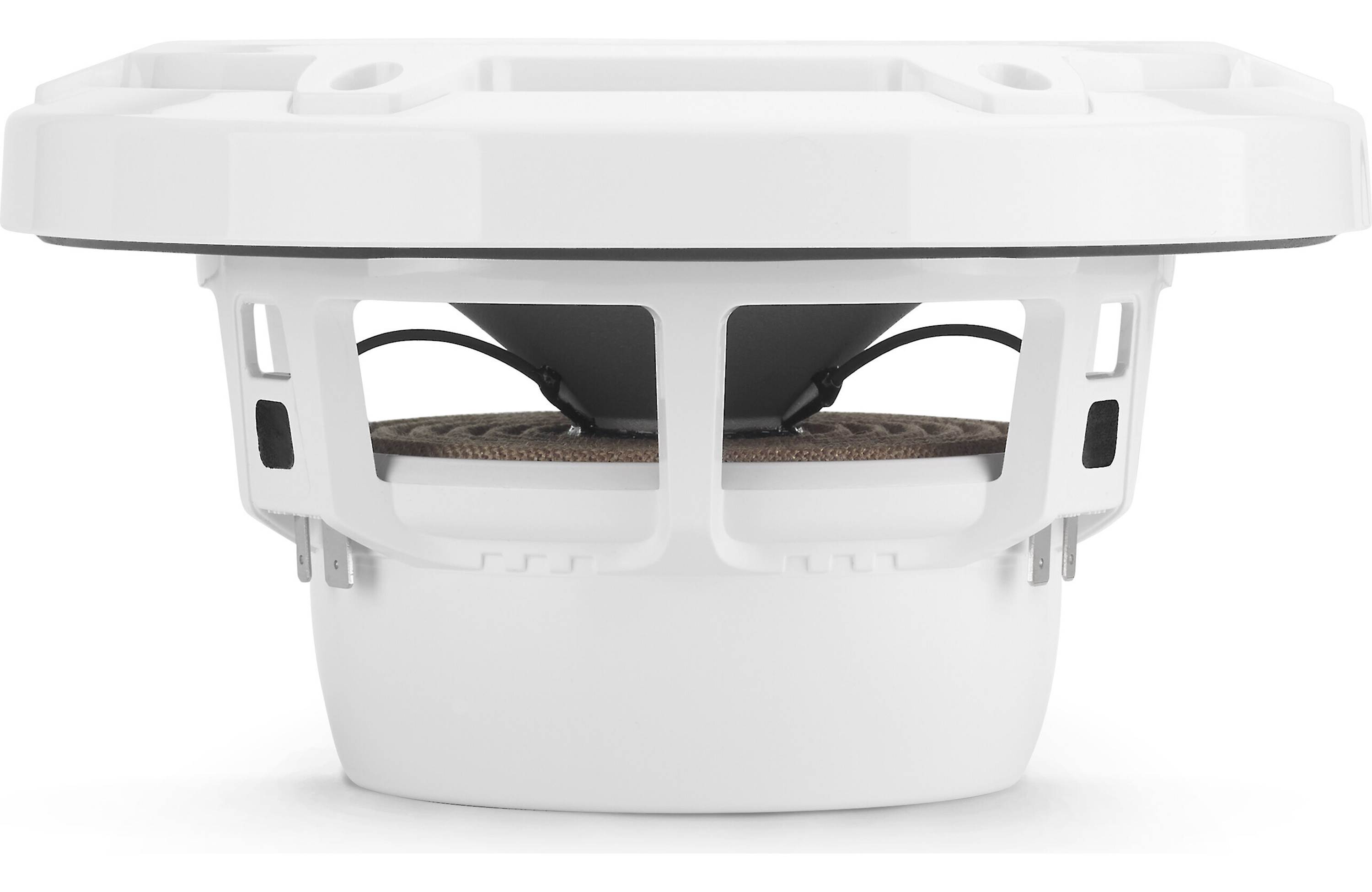

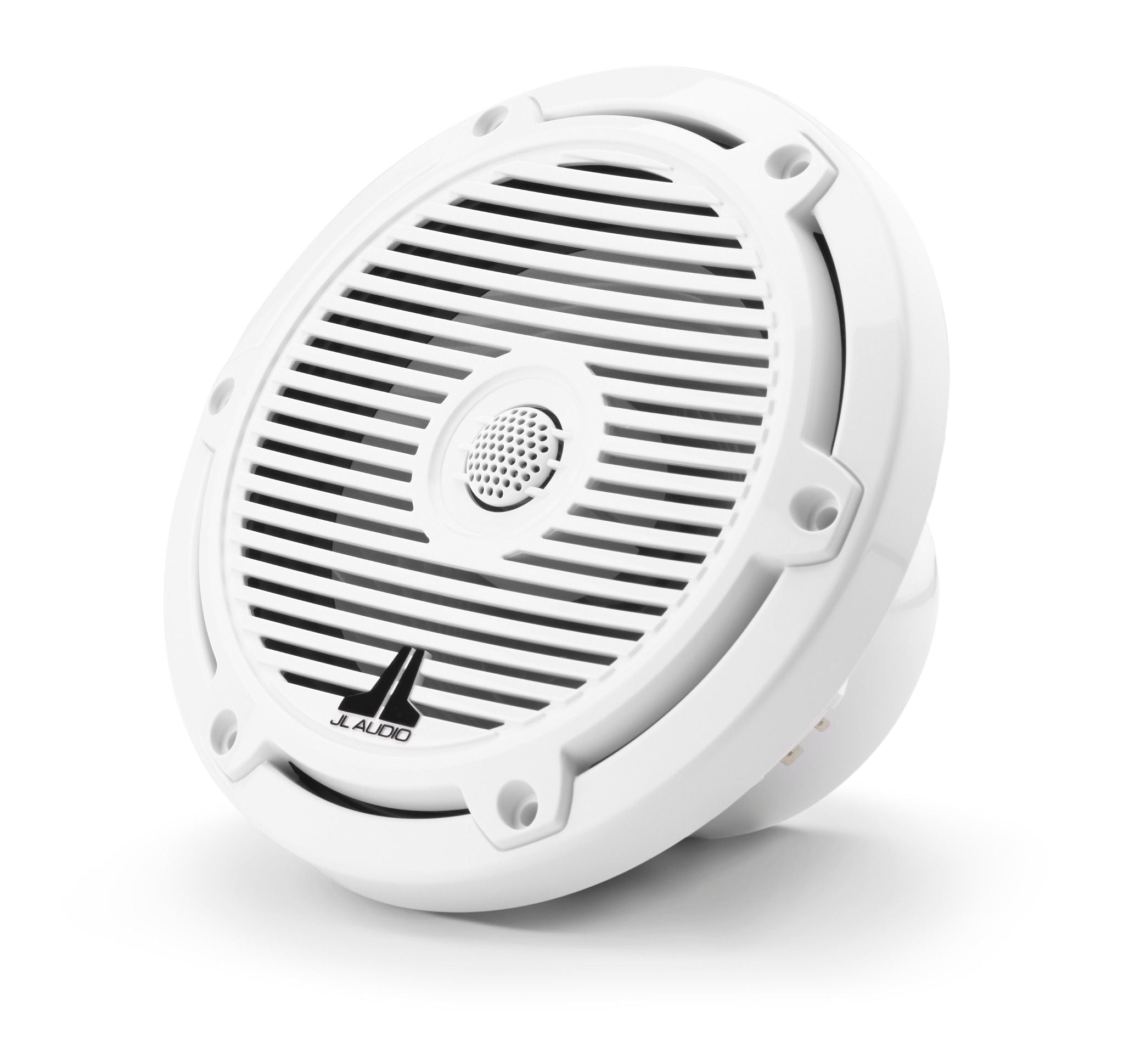

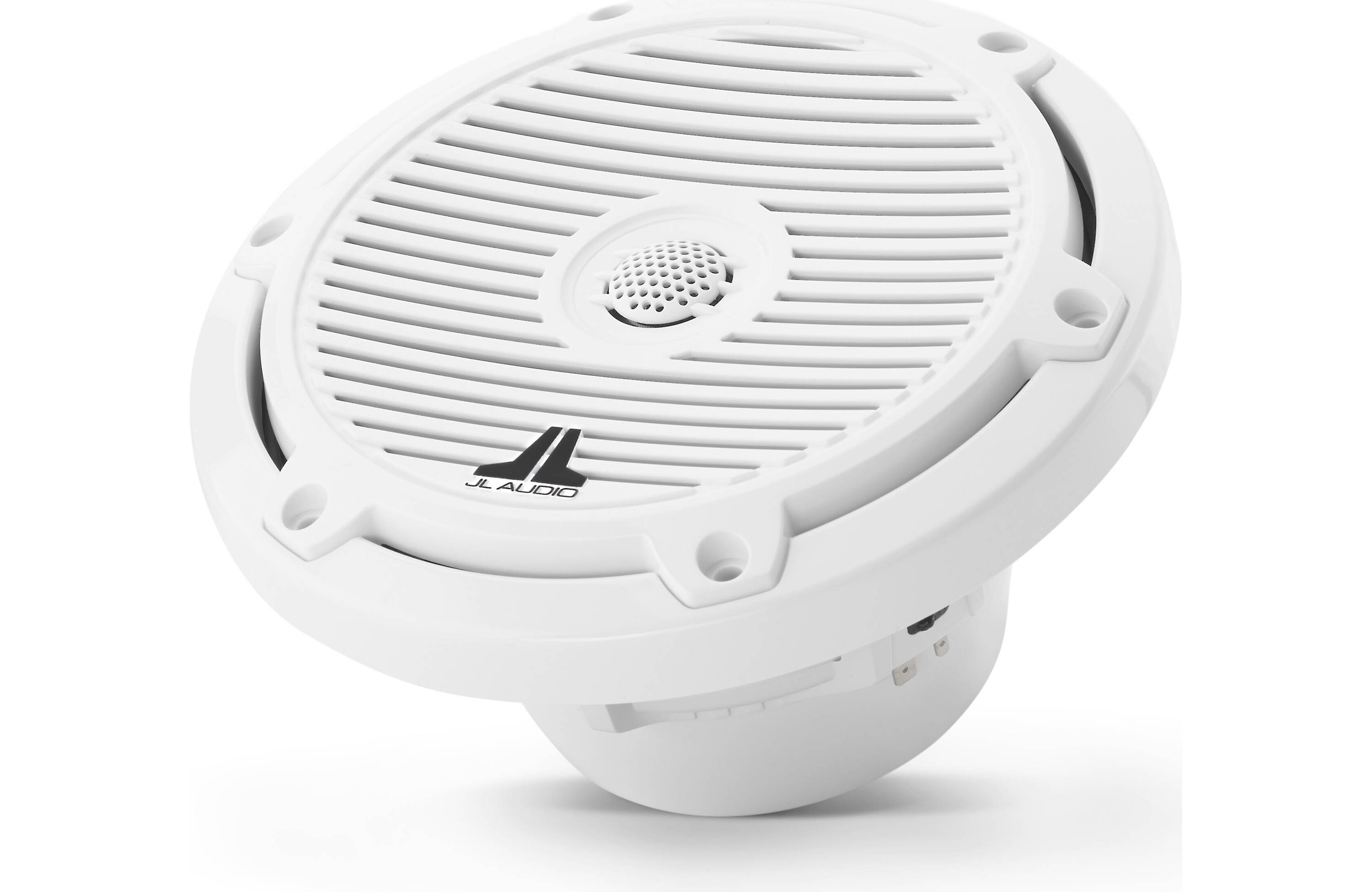

Speaker Highlights
- 6-1/2" 2-way marine speakers (pair)
- injection-molded, mica-filled polypropylene woofer with synthetic rubber surround
- 3/4" silk dome tweeter
- UV- and corrosion-resistant polymer baskets and grilles
- designed for free-air applications (no enclosures needed)
- for best performance, speaker needs at least 2 cubic feet of airspace
- handles up to 60 watts RMS (225 watts peak power)
- frequency response: 55-25,000 Hz
- sensitivity: 89.5 dB
- cutout diameter: 4.972
- frame diameter: 6.91
- mounting depth: 2.825
- warranty: 2 years
Speaker Features
| Speaker Size | 6 1/2 |
| Design | 2-way |
| Tweeter Design | 3/4" Dome |
| Tweeter Composition | Silk |
| Woofer Composition | Mica-Filled IMPP |
| Woofer Surround | Rubber |
| Parts Warranty | 2 Years |
| Labor Warranty | 2 Years |
Speaker Specifications
| Sensitivity | 89.5 dB at 1 watt |
| Frequency Response | 55 - 25k Hz |
| Max RMS Power Handling | 60 |
| Peak Power Handling (Watts) | 225 |
| Impedance (Ohms) | 4 |
| Top-mount Depth (Inches) | 2 7/8 |
| Bottom-mount Depth (Inches) | N/A |
| Cutout Diameter or Length (inches) | 5 |
