JL Audio MM105 + XDM400/4 + M6-650X-S-GMTI Marine Bundle

JL AudioSKU: MM105+XDM400/4+M6-650X-S-GMTI
No reviews

Price:
Sale price$2,609.96
Stock:
Temporarily Out of Stock, Please call us for alternatives!
 More payment options
Lease for as low as $13.33/week
Learn More

Description

JL Audio MM105 Marine Digital Media Receiver + JL Audio XDM400/4 4-Channel Class D Car and Marine Amplifier + JL Audio M6-650X-S-GMTI 6.5" Marine Speaker with Gunmetal Gray Sport Grilles Marine Bundle

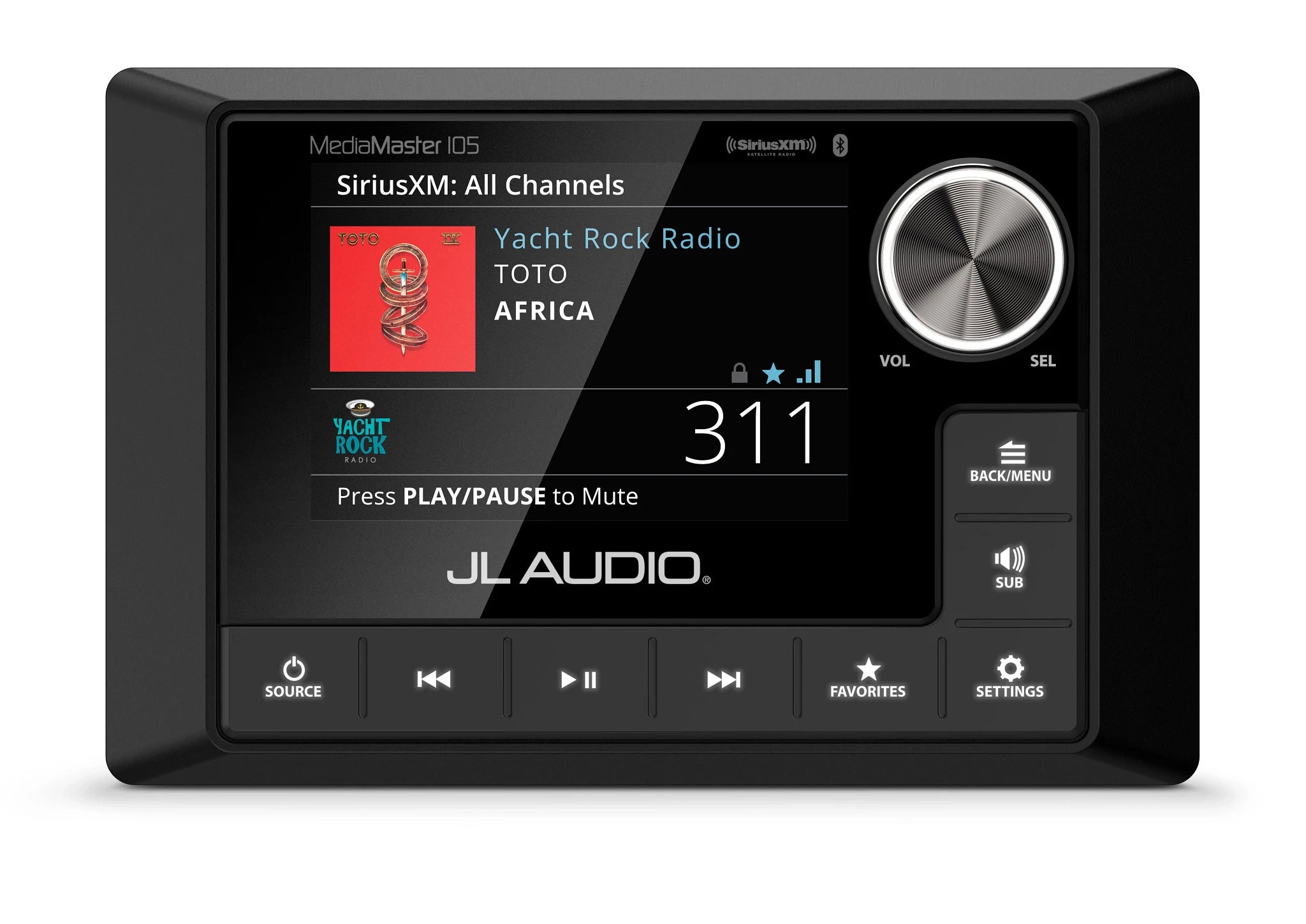

Source Unit Highlights

With the MediaMaster® 105, a Premium Source Unit designed to withstand anything Mother Nature can dish out. This source unit delivers top-flight sound performance and advanced audio features specifically designed for marine and powersports applications. Its rugged, weatherproof (IP67 rated) chassis houses an ultra-bright, 3.5-inch full-color LCD display, with separate Day / Night lighting themes for outstanding visibility, even in bright sunshine. When in motion, you will also appreciate the clean user interface with big text and large backlit controls.

  • Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds, specifically formulated with UV inhibitors for marine duty.
  • Marine-grade, synthetic fiber spiders with progressive roll designs to withstand high humidity.
  • Specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer's motor system to prevent corrosion.
  • Gold-plated, marine-grade brass connection terminals
  • Marine-grade stainless steel mounting hardware is included.
Source Unit Features
Input Operating Voltage 10 - 15.9 VDC
Standby Current Draw 120 mA
Operating Current Draw 1.5 A
Recommended Fuse Value 5 A
Remote Turn-on Capacity 500 mA (max)
Operating Temperature Range -4 F to +158 F (-20 C to +70 C)
Display Size / Type 3.5-inch / TFT LCD backlighted
Display Resolution 320 x 480
Output Channels One stereo pair and mono subwoofer RCA plugs per zone
Output Zones Relative, Absolute, Fixed or Off
Maximum Output Voltage 4V RMS (Relative or Absolute), Selectable 4V/2V/1V RMS (Fixed
Source Unit Specifications
 Tuner
FM Tuner with RDS 87.5 MHz to 107.9 MHz (0.2 MHz step)
AM Tuner 530 kHz to 1710 kHz (10 kHz step)
DAB+ Tuner 170 MHz to 230 MHz
Favorites 24 presets across all tuners
 Bluetooth®
Profile A2DP v1.2, AVRCP v1.4
Core Specification Version 2.1 + EDR
Codec SBC, Qualcomm® aptX™ audio
Connection Range Up to 35 ft / 11 m
 USB
Interface USB 2.0 host
Maximum Current Output USB1: 1 A / USB2: 500 mA
Supported Audio Formats MP3, MP4, WAV, AAC, M4A, M4B
Apple Compatibility iPhone 5 or beyond (functionality contingent upon compatible iOS release)
Source Unit Physical Specifications
Lineart Front-View and Side-View plus Back, Bottom and Top-View of MM105 MediaMaster with physical specification dimension labels
Height (H) 3.91 in / 99 mm
Width (W) 5.95 in / 151 mm
Depth (D1) 2.56 in / 65 mm
Depth (D2) 3.94 in / 100 mm
Mounting Hole Height (A) 3.27 in / 83 mm
Mounting Hole Width (B) 4.72 in / 120 mm

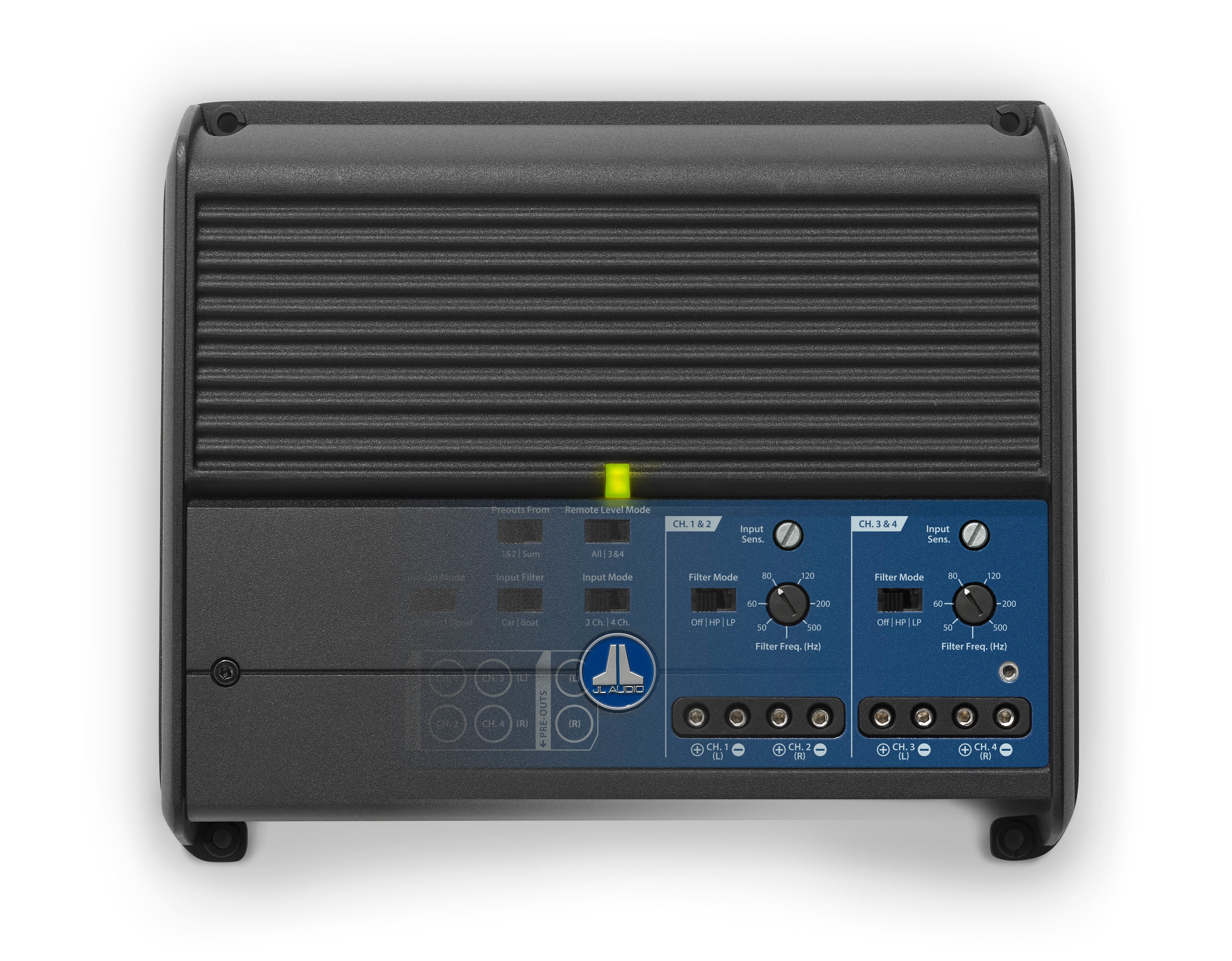

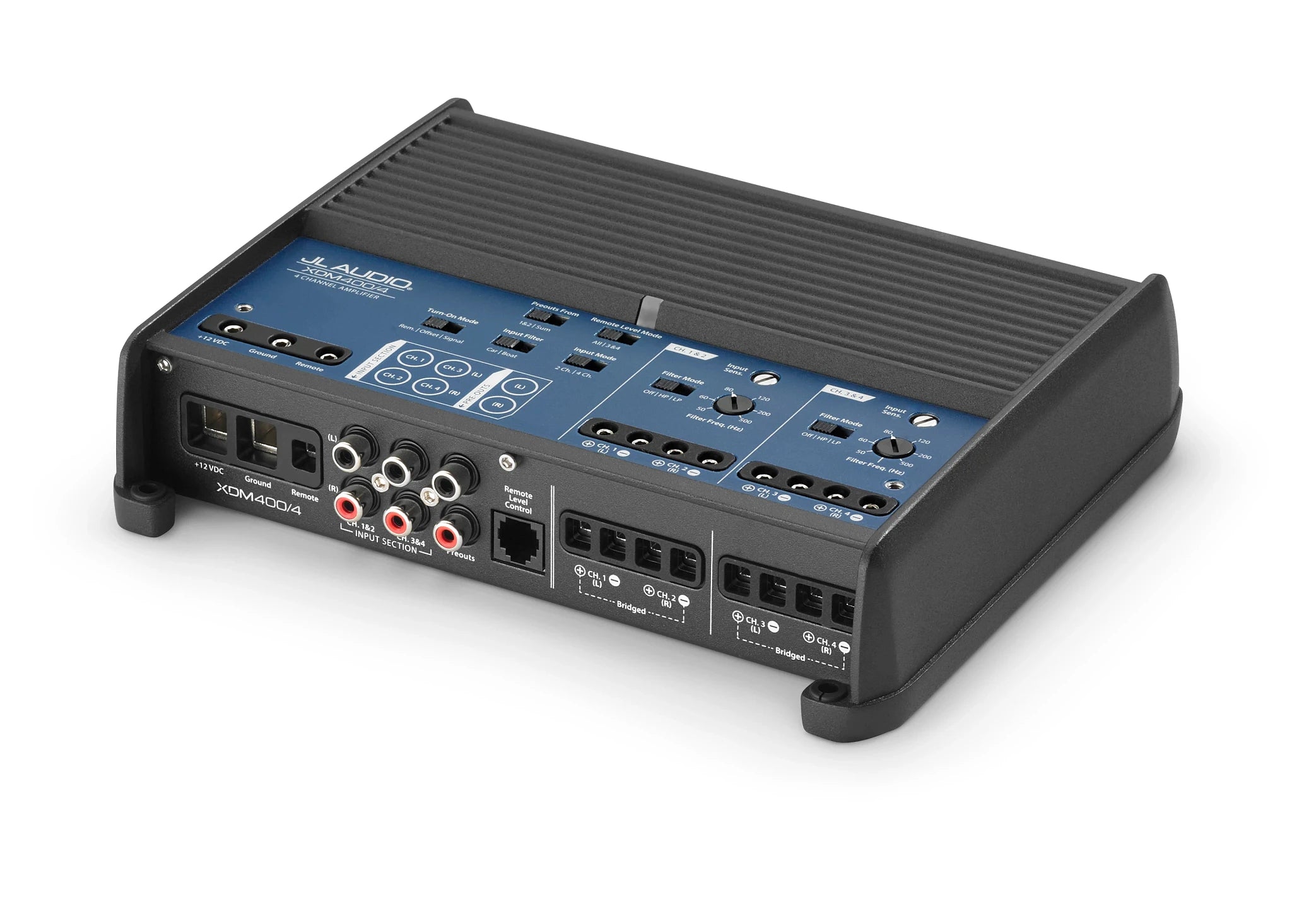

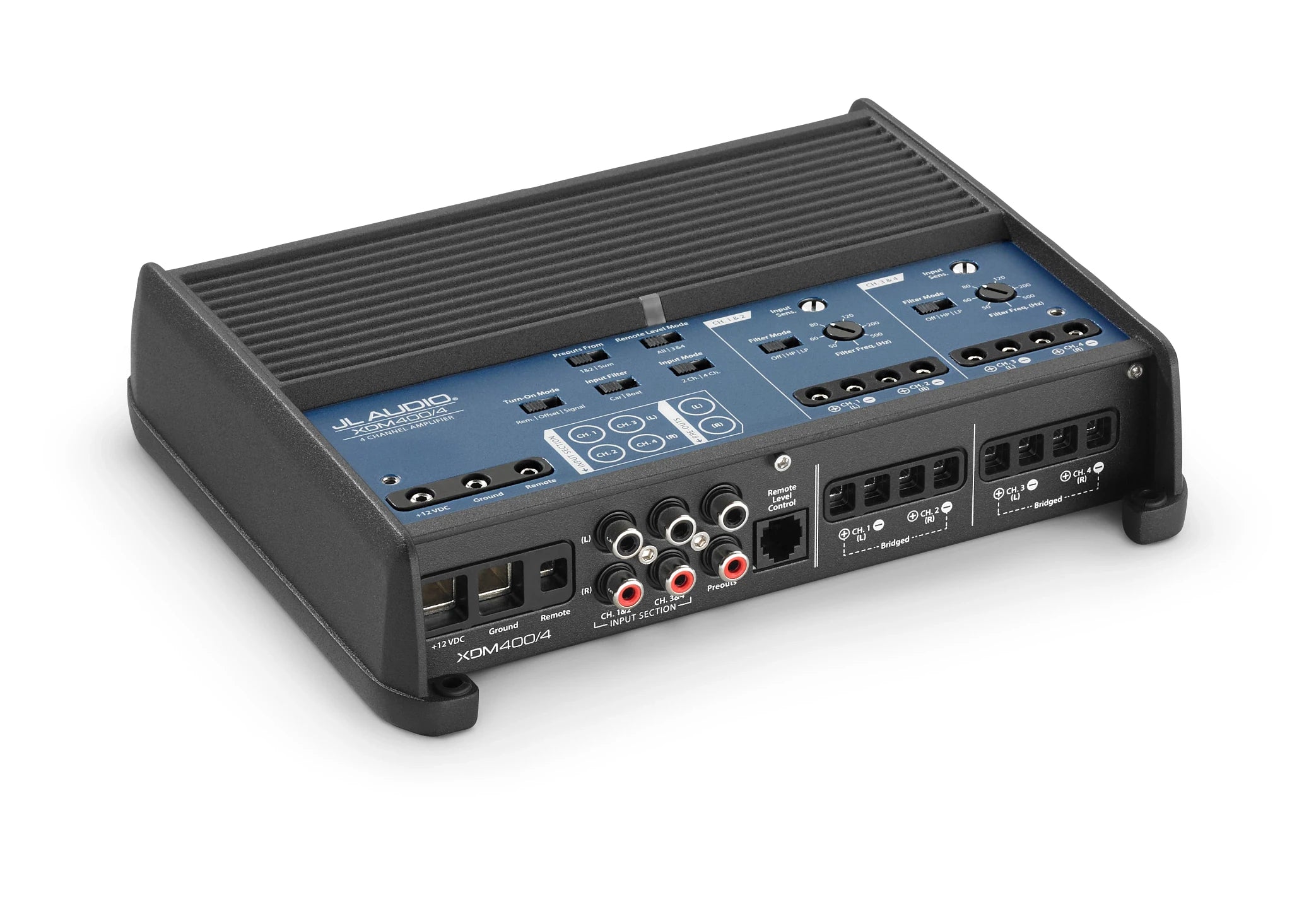

Amplifier Highlights

4-Channel Class D Full-Range Car / Marine Amplifier, 100 W x 4 @ 2 Ω / 75 W x 4 @ 4 Ω - 14.4V

The ultra-compact XDM400/4 packs a serious full-range punch, generating a whopping 100 watts to each of its four channels into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.

Suitable for car or boat installations, the XDM400/4 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

Combine the XDM400/4 with our XDM600/1 monoblock to build a stunning 1000 W amplification system to power four satellites and a subwoofer... and fit the whole thing under a seat or deck. Or, use the XDM400/4 by itself to power two satellites, plus a subwoofer.

The XDM400/4 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the rear channels directly from the driver's seat or cockpit.

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Amplifier Specifications
Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω 75 W RMS x 4
@ 2 Ω 100 W RMS x 4
Bridged @ 4Ω 200 W RMS x 2
Rated Continuous (RMS) Power @ 12.5 V
@ 4 Ω 60 W RMS x 4
@ 2 Ω 90 W RMS x 4
Bridged @ 4Ω 180 W RMS x 2
General Specifications
Frequency Response 12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >75 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 40 A (AFS, AGU or MaxiFuse™)
Signal Processing
Filter Mode(s) Low-Pass or High-Pass
Filter Slope(s) 12 dB/octave
Filter Frequency Range 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers Yes
Filter Defeat Function Yes
Remote Level Control Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes 2 or All channels
Channel Input Mode Switch Yes (2/4 ch.)
Pass-Through Preamp Output Buffered
Source Channel Selection for PreOuts Yes



Physical Specifications
Lineart Top-View and Side-View of XDM400/4 Amplifier with Height (H), Width (W) and Depth (D) dimension labels
Height (H) 2.05 in / 52 mm
Width (W) 8.52 in / 216 mm
Depth (D) 7.09 in / 180 mm
Net Weight 6.3 lb / 2.86 kg

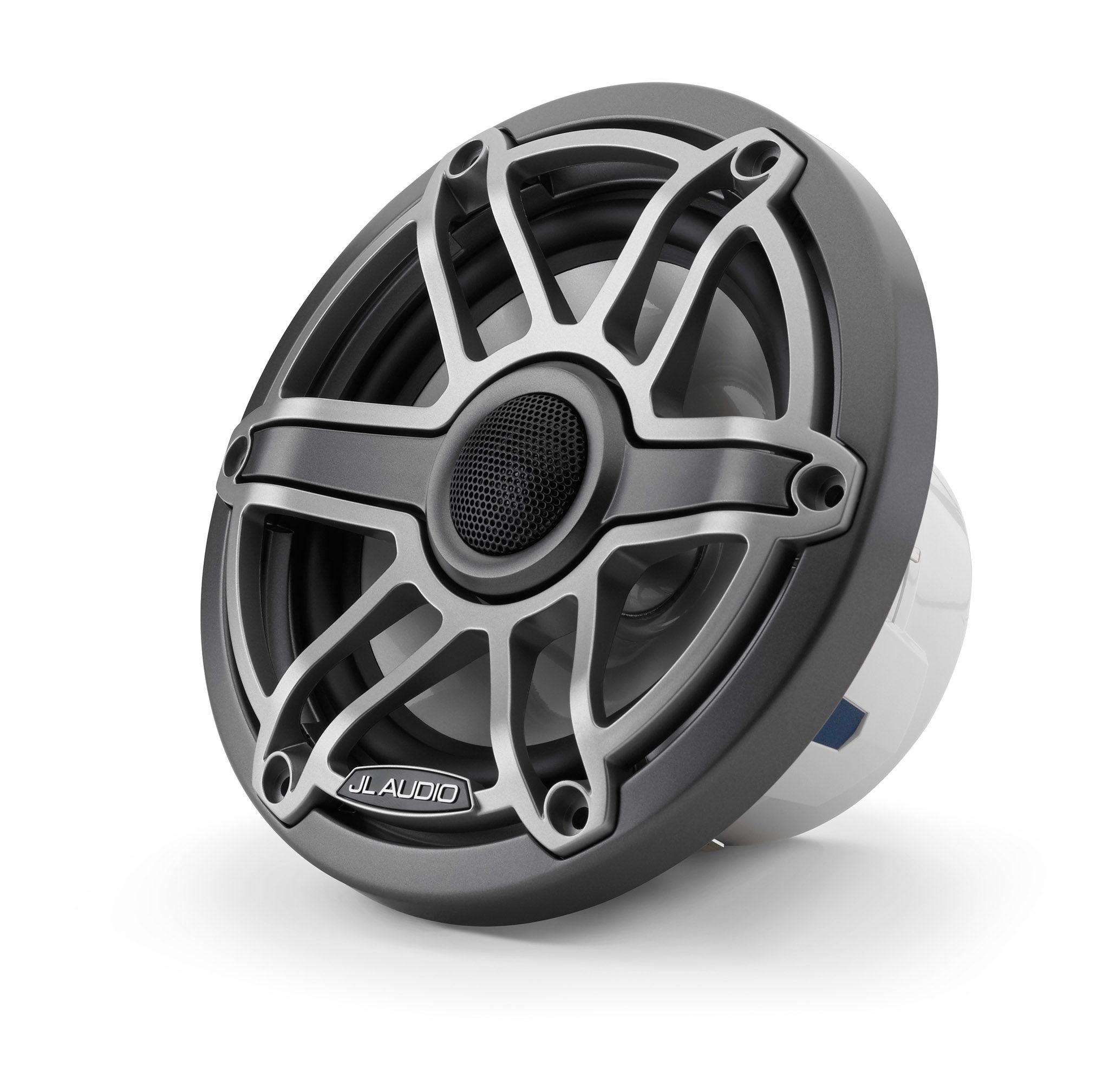

Speaker Highlights

M6 6.5-inch Marine Coaxial Speakers (75 W, 4 Ω) - Gunmetal Trim Ring, Titanium Sport Grille

Purpose-engineered and built for real marine duty, M6 coaxial systems deliver maximum audio performance in any open-air boating environment.

A DMA-optimized, long excursion woofer design and excellent power handling ensures your music will come through loud and clear at speed, or at anchor.

A 0.8-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels.

A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.

Although M6-650-X Coaxial Systems can be used with as little as 25 W per channel, for best audio performance we recommend amplifiers capable of between 75-150 W of continuous power per channel.

Sold as a pair.

General Specifications
Continuous Power Handling (RMS) 75 W
Recommended Amplifier Power (RMS) 25 - 150 W / Ch.
System Efficiency 89.5 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 55 Hz - 25 KHz ± 3 dB

Physical Specifications
M6_650X_S_Dimensions.svg
Frame Outer Diameter (A) 6.90 in / 175 mm
Bolt Hole Circle Diameter (B) 6.13 in / 156 mm
Frontal Grille Protrusion* (C) 0.94 in / 24 mm
Mounting Hole Diameter (D) 5.00 - 5.25 in / 127 - 133 mm
Mounting Depth (E) 3.00 in. / 76 mm
*Frontal grille protrusion measured from mounting surface
