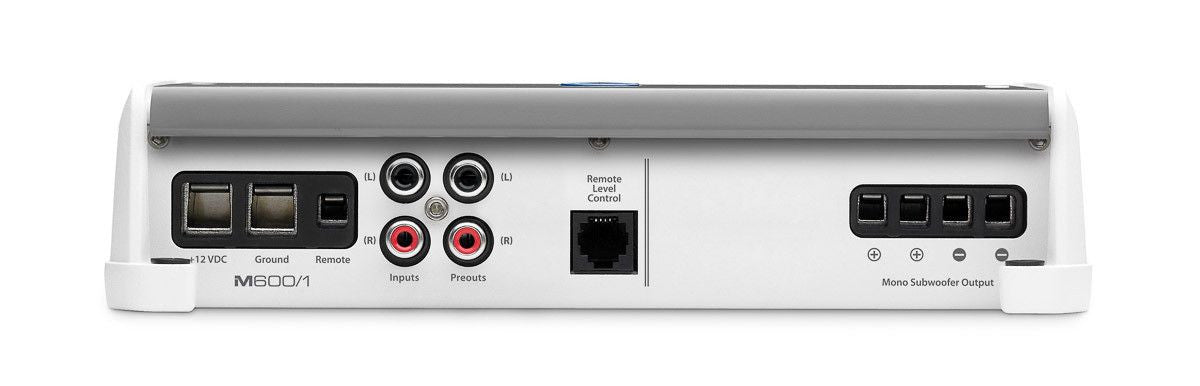

Monoblock Class D Marine Subwoofer Amplifier, 600 W x 1 @ 2 Ω / 400 W x 1 @ 4 Ω - 14.4V

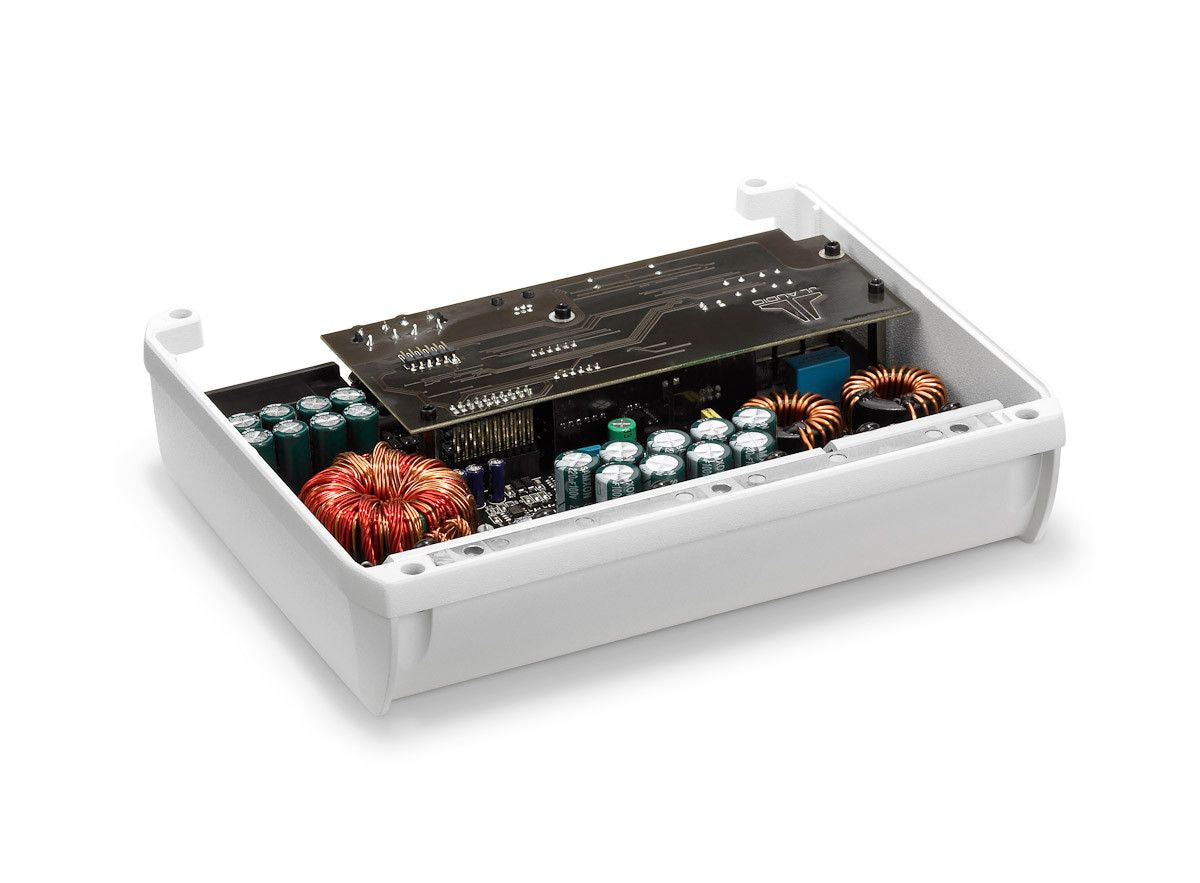

This potent monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious subwoofer power, delivering a full 600 W of continuous power into a 2 Ω load (14.4V, 1% THD).
Rated Continuous (RMS) Power @ 14.4 V
|@ 4 Ω||400 W RMS x 1|
|@ 3 Ω||500 W RMS x 1|
|@ 2 Ω||600 W RMS x 1|
|@ 1.5 Ω||N/A|
Rated Continuous (RMS) Power @ 12.5 V
|@ 4 Ω||300 W RMS x 1|
|@ 3 Ω||400 W RMS x 1|
|@ 2 Ω||500 W RMS x 1|
|@ 1.5 Ω||N/A|
|Frequency Response||7 Hz - 500 Hz (+0, -1dB)|
|S/N Ratio, referred to highest rated power||>87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|S/N Ratio, referred to 1 W||>59 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|Damping Factor @ 4 Ω||>1000 / 50 Hz|
|Damping Factor @ 2 Ω||>500 / 50 Hz|
|THD+N @ Rated Power||<1% @ 2 Ω per Ch.|
|Input Voltage Range @ RCA Inputs||100 mV - 4 V RMS|
|Min.Copper Power / Ground Wire Gauge||4 AWG wire|
|Fuse Rating||50 A (AFS, AGU or MaxiFuse™)|
|Filter Mode(s)||Low-Pass only|
|Filter Slope(s)||12/24 dB/octave|
|Filter Frequency Range||50 Hz - 500 Hz|
|Detented, Calibrated Filter Freq. Potentiometer||Yes|
|Filter Defeat Function||Yes|
|Infrasonic Filter||30 Hz, defeatable|
|Bass Boost EQ (0 to +12 dB @ 45 Hz)||No|
|Output Polarity Switch||No|
|Remote Subwoofer Level Control||Optional (HD-RLC)|
|Pass-Through Preamp Output||Buffered|
|Height (H)||2.05 in / 52 mm|
|Width (W)||8.52 in / 216 mm|
|Depth (D)||7.09 in / 180 mm|
|Net Weight||4.6 lb / 2.06 kg|
