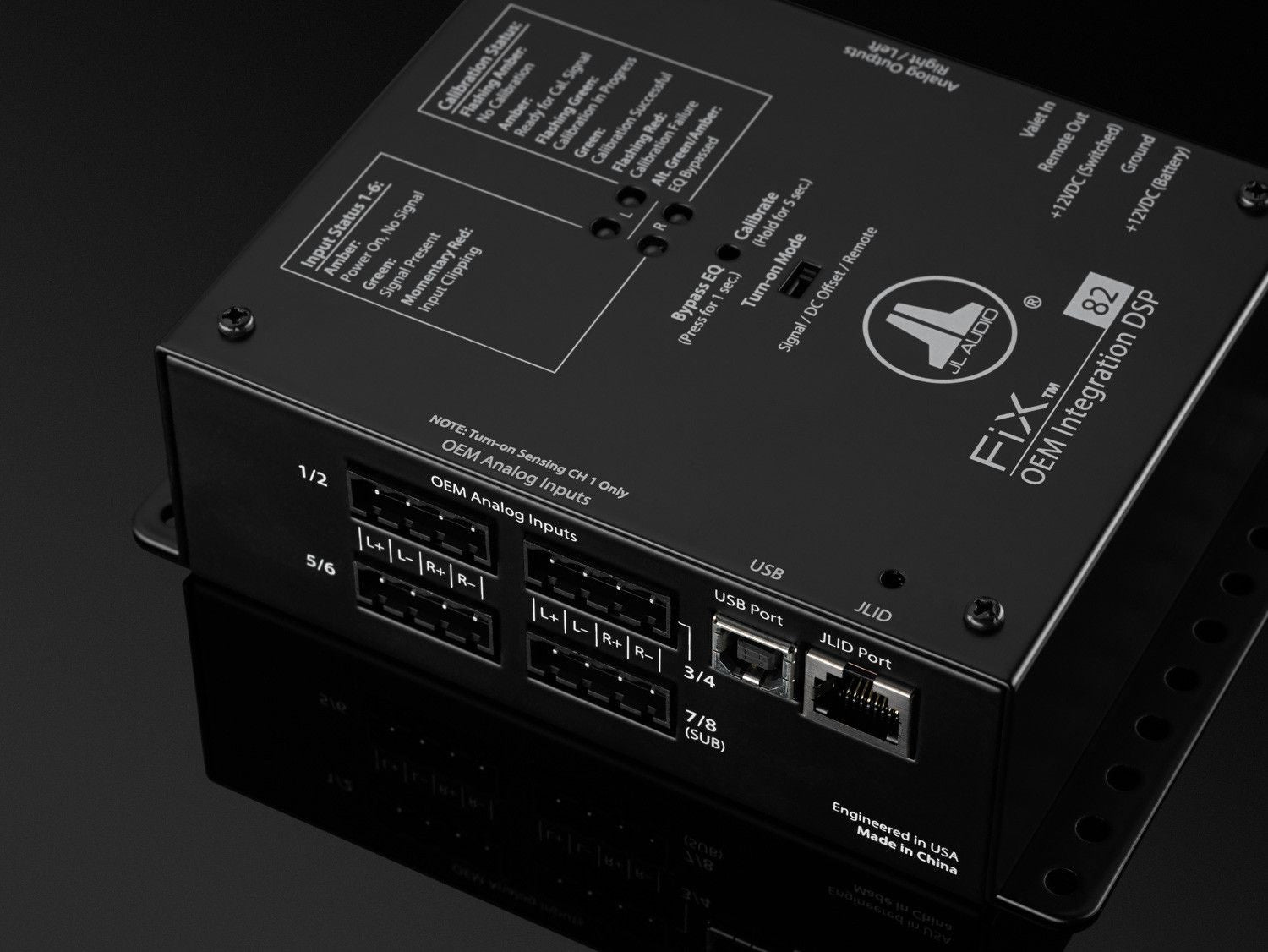

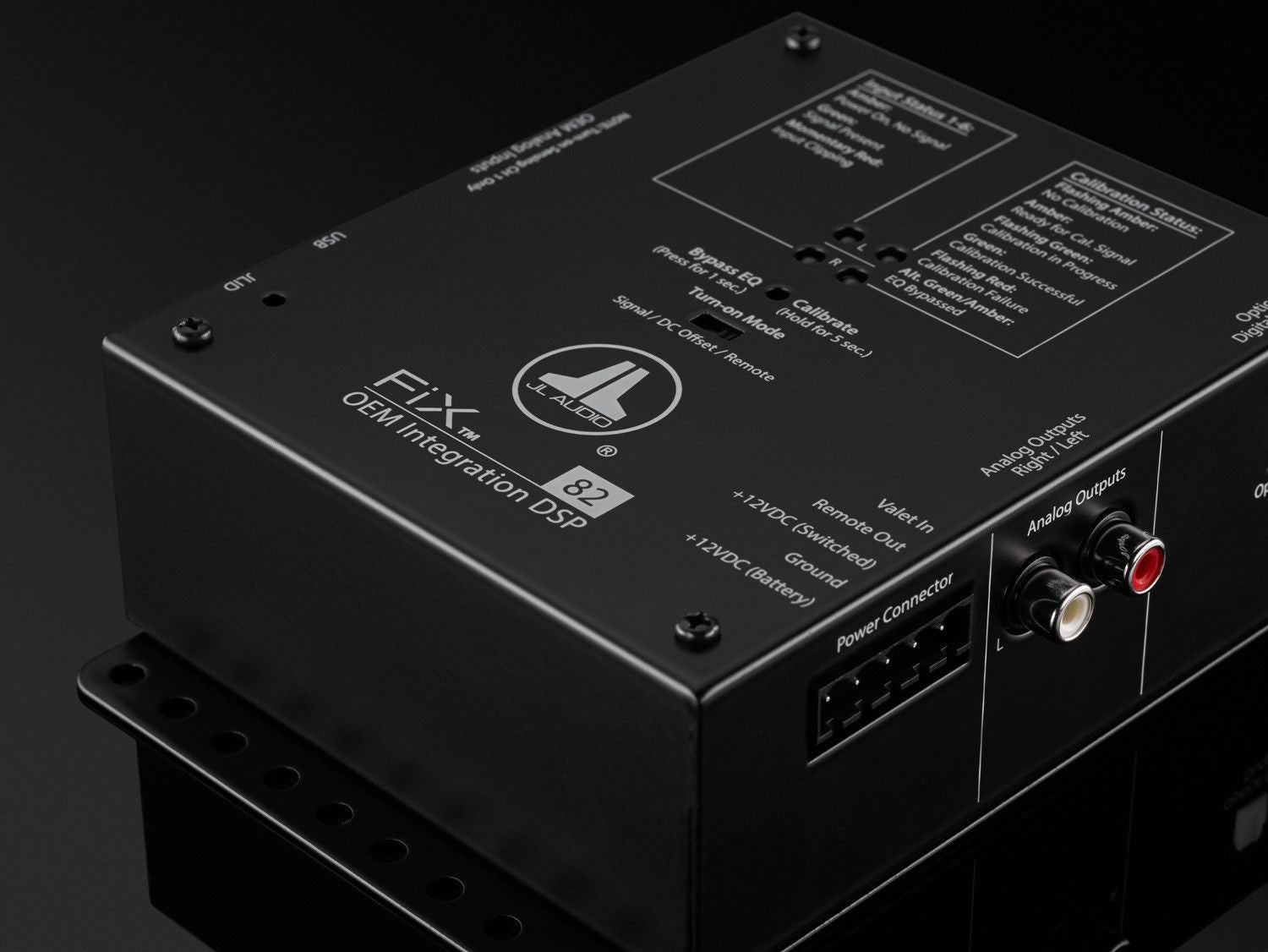

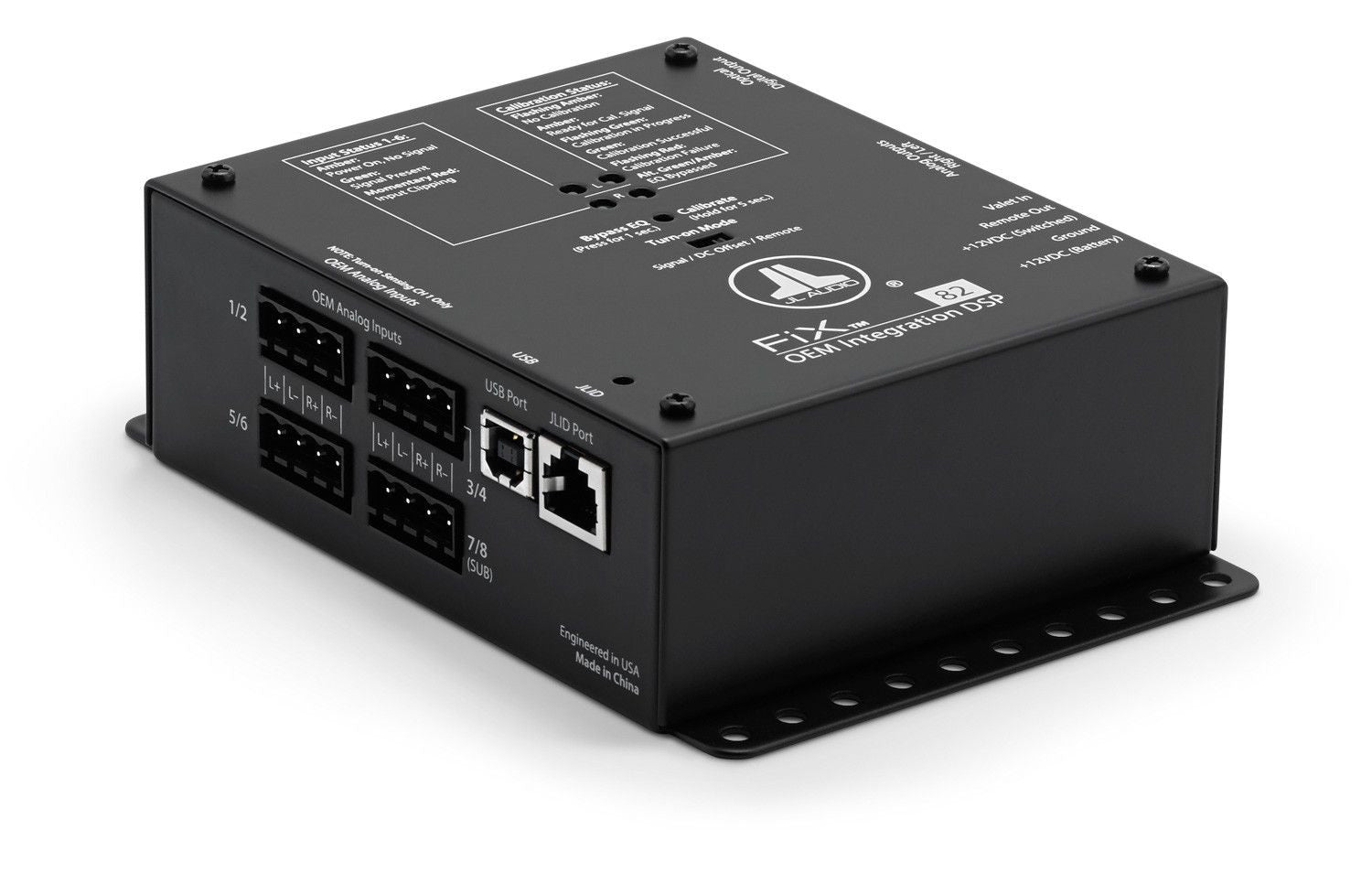

JL Audio FiX-82 - OEM Integration DSP with Automatic Time Correction and Digital EQ
OEM Integration DSP with Automatic Time Correction and Digital EQ. 8-ch. Inputs / 2-ch. Stereo RCA Outputs / 1 Digital Optical (Toslink) Output
The FiX™ 82 is a state-of-the-art digital signal processor engineered to deliver world-class sound from factory audio systems, without replacing the OEM source unit. Unlike other OEM interface products, the FiX™ 82 is the first DSP to automatically correct time delayed factory outputs prior to signal summing and EQ correction.
With a powerful 24-bit DSP processor and dual 1/3 octave equalizers onboard, complex 2-way, 3-way and 4-way factory audio outputs are combined and level-matched automatically into a flat, full-range stereo signal. Differential-balanced inputs accept virtually any OEM analog audio signal, from low-voltage, line-level to high-power, amplified speaker-level outputs (up to 30V RMS).
Calibration is initiated with just a single button press and takes only about 30 seconds to complete, with no special equipment needed. Output options include dual RCA jacks (4V RMS) or a digital optical (Toslink) output, supporting PCM audio (S/PDIF) 24 bit/48 kHz. Activation methods include 12-volt or automatic (Signal/DC-Offset Sensing), plus a dedicated remote turn-on output is on-hand for controlling your aftermarket equipment.
Connect the optional DRC-100 Digital Remote Controller (sold separately) to add Master Volume Control capabilities and preserve your vehicle’s handsfree calling features, if equipped, all from the driver’s seat. Clipped input signals and overall condition are also reported via the DRC-100's multi-color status LED.
Achieving great sound from your factory stereo has never been easier, or sounded better.
|Power Supply Type||Regulated DC-DC SMPS|
|Input Operating Voltage||10 - 16 VDC|
|Standby Current Draw||<1.5 mA|
|Operating Current Draw||0.7 A|
|Recommended Fuse Value||1 A|
|Input Voltage Range||250 mV - 30 V RMS|
|Minimum Input Voltage||10 mV RMS|
|Input Level Setting||Fully automatic|
|Analog Output||Unbalanced, stereo RCA jacks|
|Digital Output||Optical (Toslink) output (S/PDIF)|
|Output Impedance||450 Ω|
|S/N Ratio||96 dB (A-Weighted, referred to 4V RMS Output)|
|THD+N @ Rated Output||0.02% (20 Hz - 20 kHz)|
|Audio Resolution||24 bit / 48 kHz|
|Number of EQ Bands||30 x 2 channels|
|EQ Resolution||1/3 octave (25 Hz - 20 kHz)|
|Remote Level Control||Optional (DRC-100)|
|Remote Level Functions||Master Volume Control, Handsfree Optimization, LED Status Reporting|
|Height (H)||1.85 in / 47 mm|
|Width (W)||4.29 in / 109 mm|
|Depth (D)||6.14 in / 156 mm|
|Net Weight||2.58 lb / 1.17 kg|
