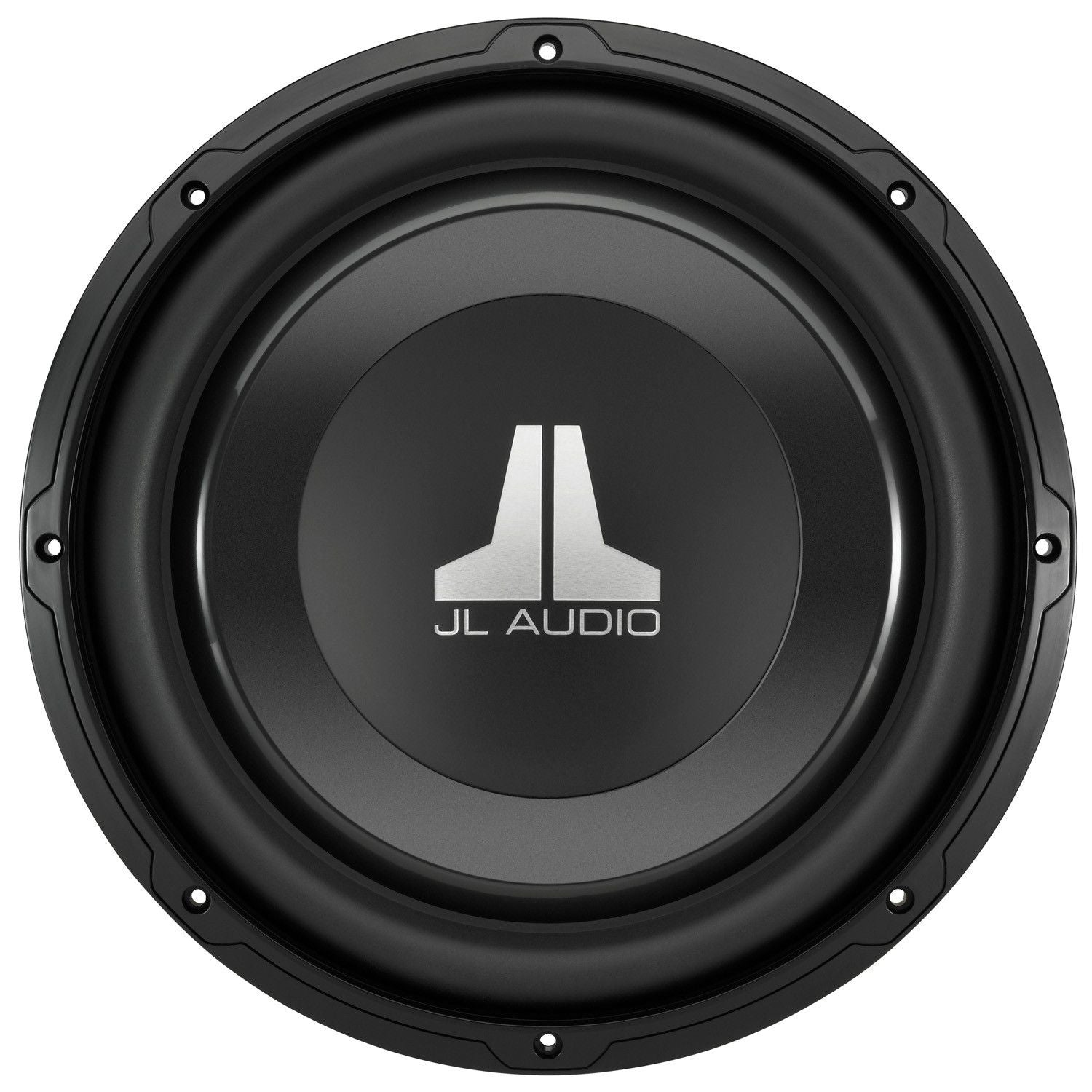

  • JL AUDIO 12W1v3-4 - W1v3 12-inch Subwoofer Driver (300 W, 4 Ω) - Freeman's Car Stereo

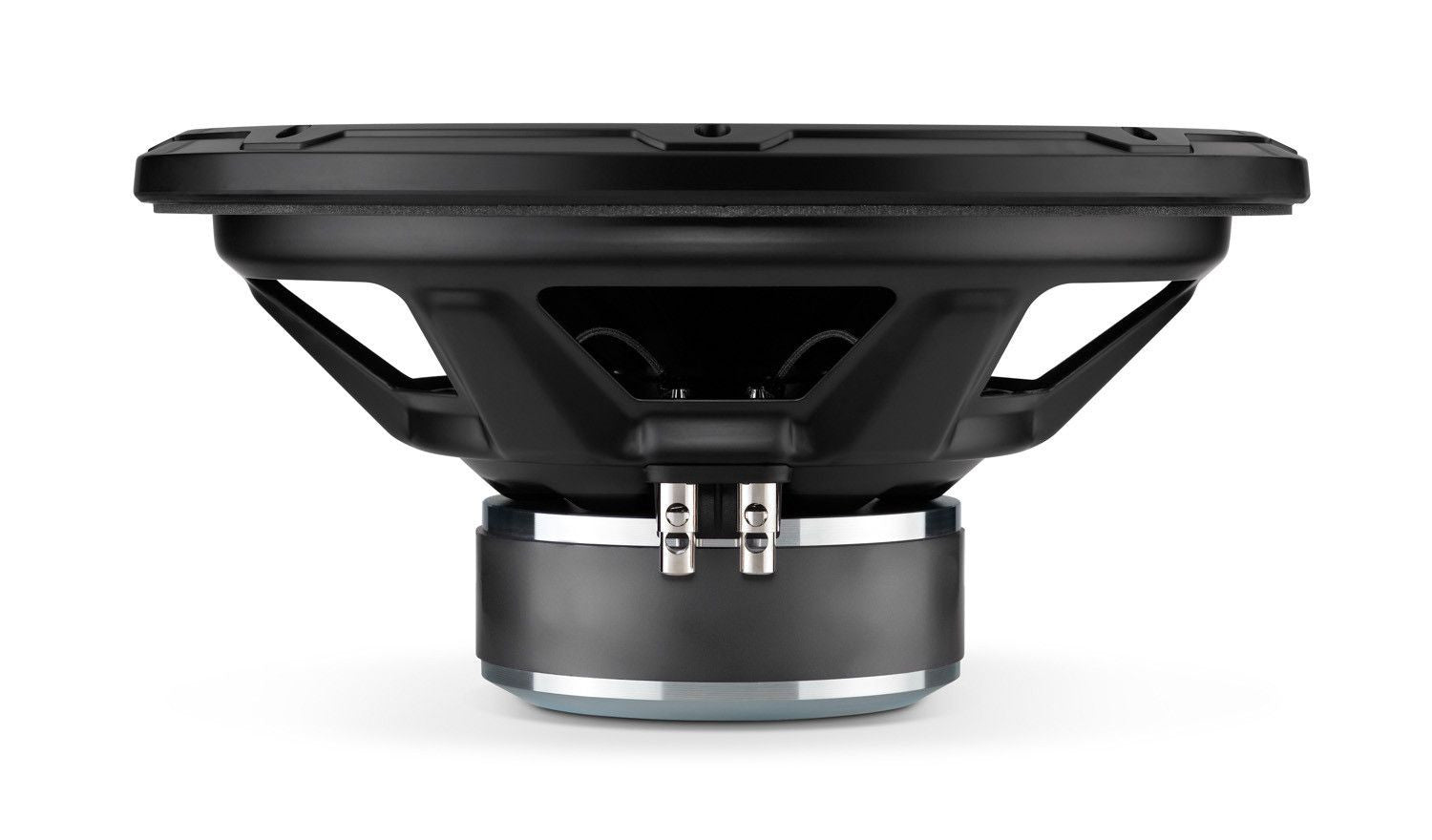

  • JL AUDIO 12W1v3-4 - W1v3 12-inch Subwoofer Driver (300 W, 4 Ω) - Freeman's Car Stereo

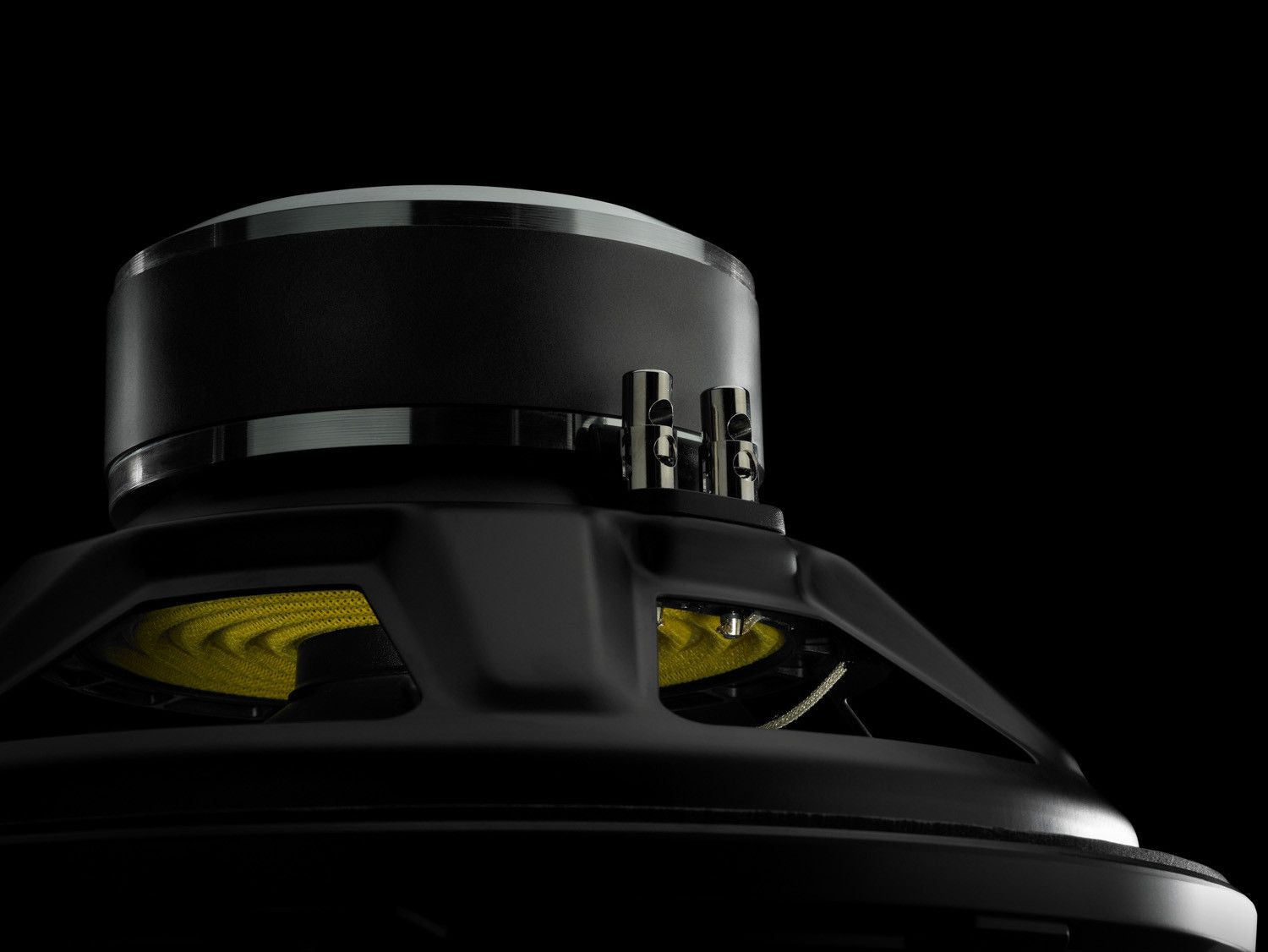

  • JL AUDIO 12W1v3-4 - W1v3 12-inch Subwoofer Driver (300 W, 4 Ω) - Freeman's Car Stereo
  • JL AUDIO 12W1v3-4 - W1v3 12-inch Subwoofer Driver (300 W, 4 Ω) - Freeman's Car Stereo
  • JL AUDIO 12W1v3-4 - W1v3 12-inch Subwoofer Driver (300 W, 4 Ω) - Freeman's Car Stereo

JL AUDIO

JL AUDIO 12W1v3-4 - W1v3 12-inch Subwoofer Driver (300 W, 4 Ω)

$199.99

Details

W1v3 12-inch Subwoofer Driver (300 W, 4 Ω)

The 12W1v3 is a lightweight 12-inch driver with excellent performance capabilities at moderate power levels. It features moderate mounting depth with no pole-vent, so the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.

The The 12W1v3-4 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

General Specifications

Table_Image
Continuous Power Handling (RMS) 300 W
Recommended Amplifier Power (RMS) 75 - 300 W
Nominal Impedance (Znom) 4 Ω

Physical Specifications

Nominal Diameter 12.0 in / 300 mm
Overall Diameter (A) 12.5 in / 318 mm
Mounting Hole Diameter (B) 11.0625 in / 281 mm
Bolt Hole Circle Diameter (C) 11.7 in / 297 mm
Motor Outer Diameter (D) 5.25 in / 133 mm
Mounting Depth (E) 5.41 in / 137 mm
Driver Displacement 0.052 cu ft / 1.47 L
Net Weight 12.2 lb / 5.5 kg

Parameters

Free Air Resonance (Fs) 26.21 Hz
Electrical “Q” (Qes) 0.535
Mechanical “Q” (Qms) 8.2
Total Speaker “Q” (Qts) 0.502
Equivalent Compliance (Vas) 2.706 cu ft / 76.63 L
One-Way Linear Excursion (Xmax)* 0.45 in / 11 mm
Reference Efficiency (no) 0.25%
Efficiency (1 W / 1 m)** 86.1 dB SPL
Effective Piston Area (Sd) 81.426 sq in / 0.0525 sq m
DC Resistance (Re) 3.915 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Sealed Enclosure Specifications

Table_Image
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 1.10 cu ft / 31.5 L
External Width (W) 16 in / 406 mm
External Height (H) 16 in / 406 mm
External Depth (D) 11 in / 279 mm
F3 39.63 Hz
Fc 48.75 Hz
Qtc 0.9338



Ported Enclosure Specifications

Table_Image
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 1.6 cu ft / 45.3 L
External Width (W) 25 in / 635 mm
External Height (H) 15.5 in / 394 mm
External Depth (D) 13 in / 330 mm
Internal Slot Port Width (SW) 1.5 in / 38 mm
Internal Slot Port Height (SH) 14 in / 356 mm
Internal Slot Port Length (SL) 30.75 in / 781 mm
Port Extension Length (EL) 17 in / 432 mm
Tuning Frequency (Fb) 31.79 Hz
F3 31.41 Hz
