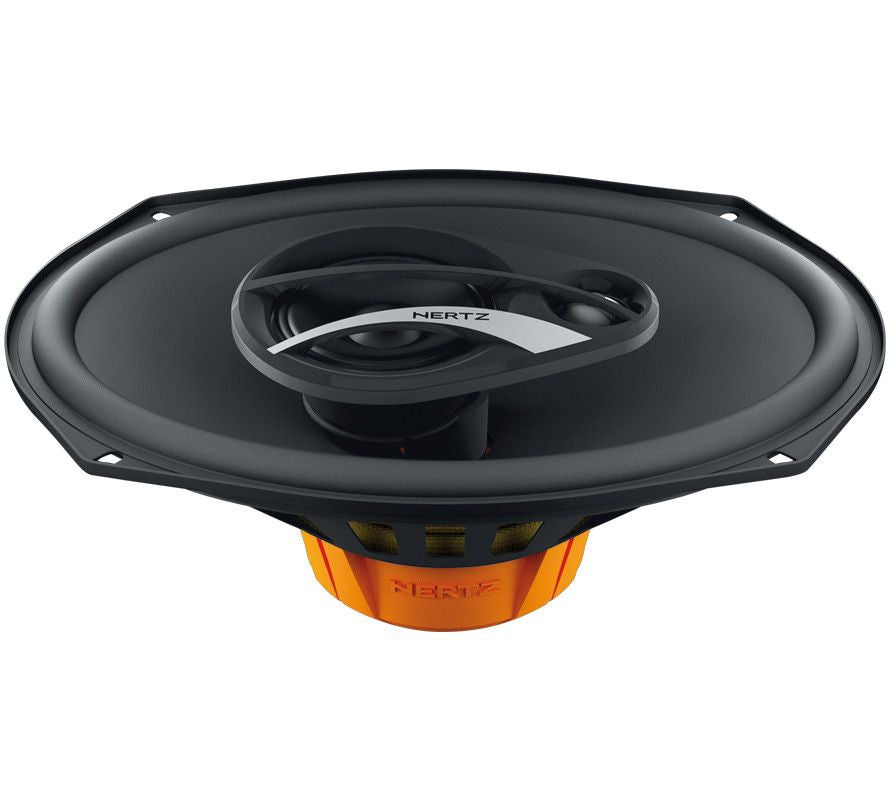

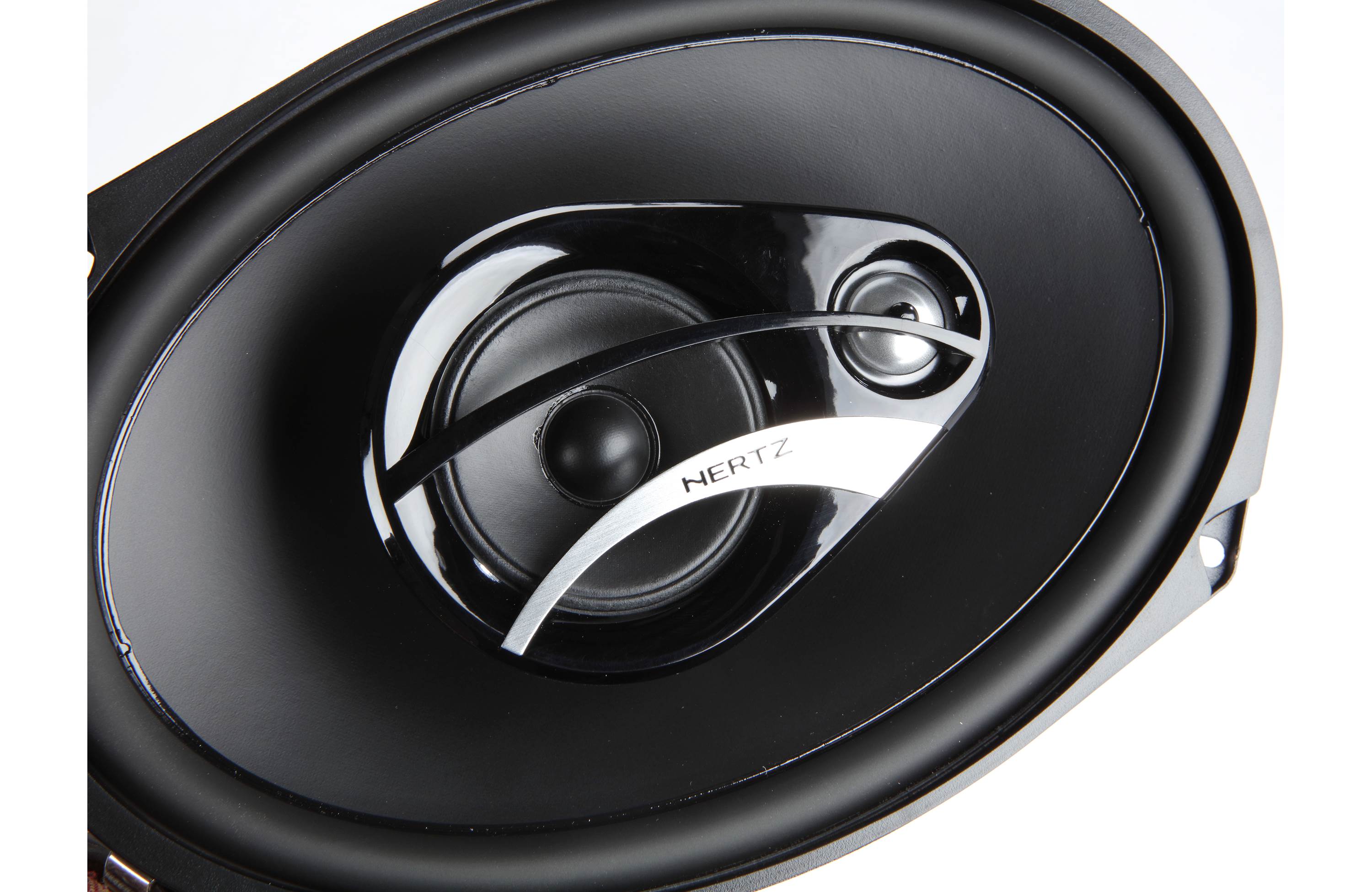

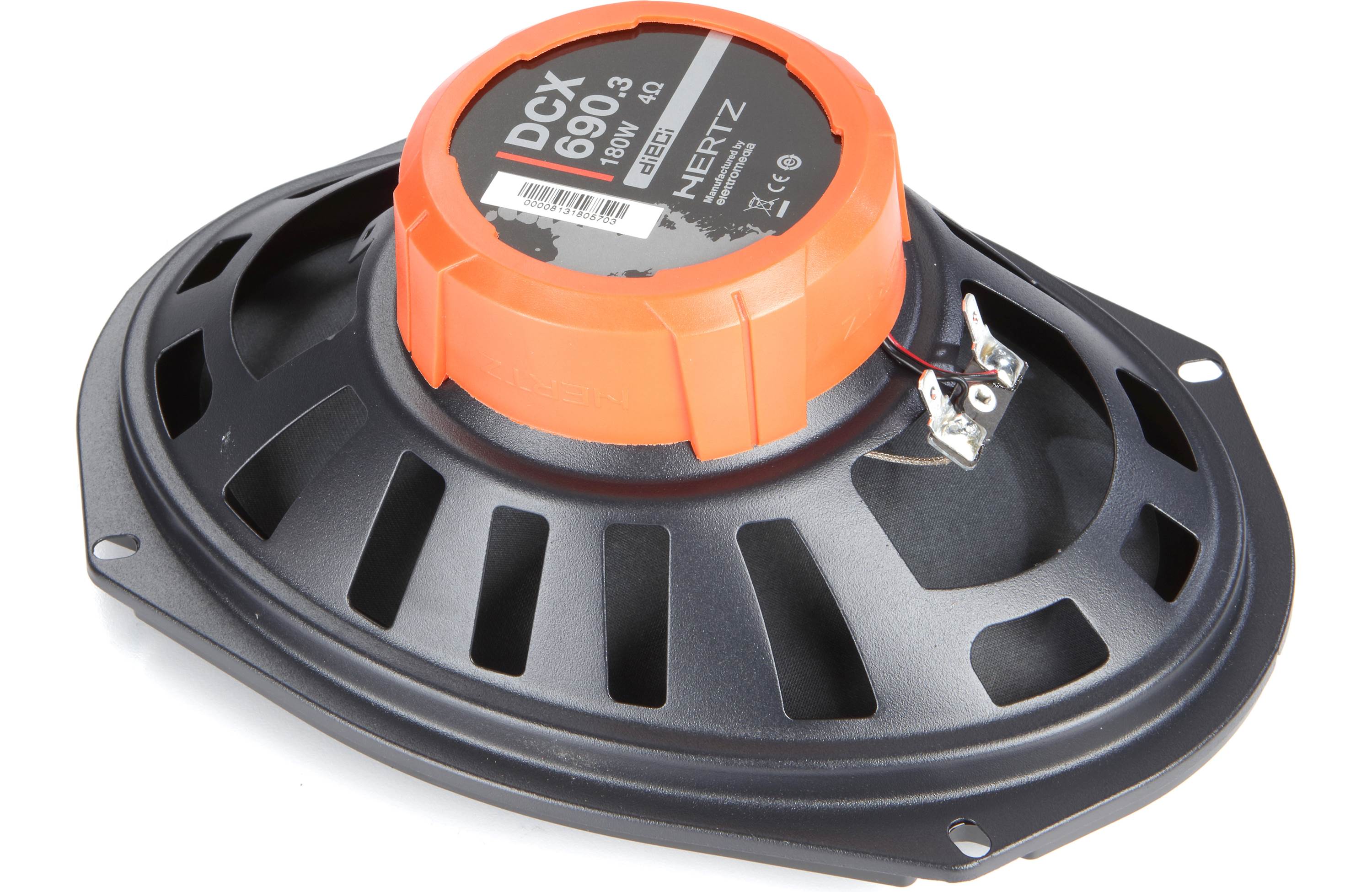

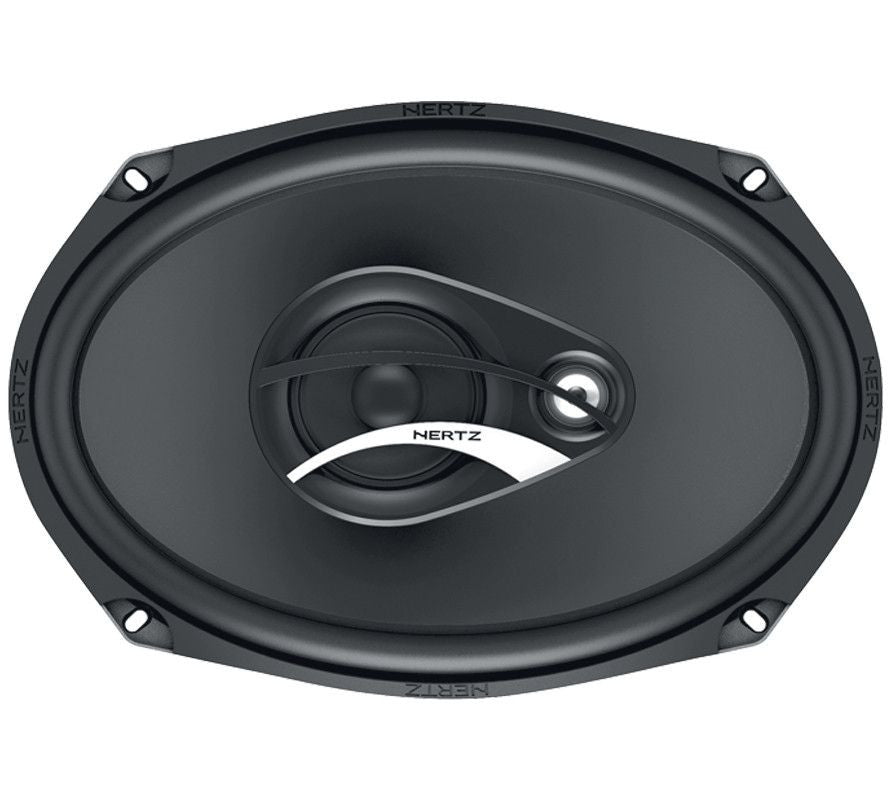

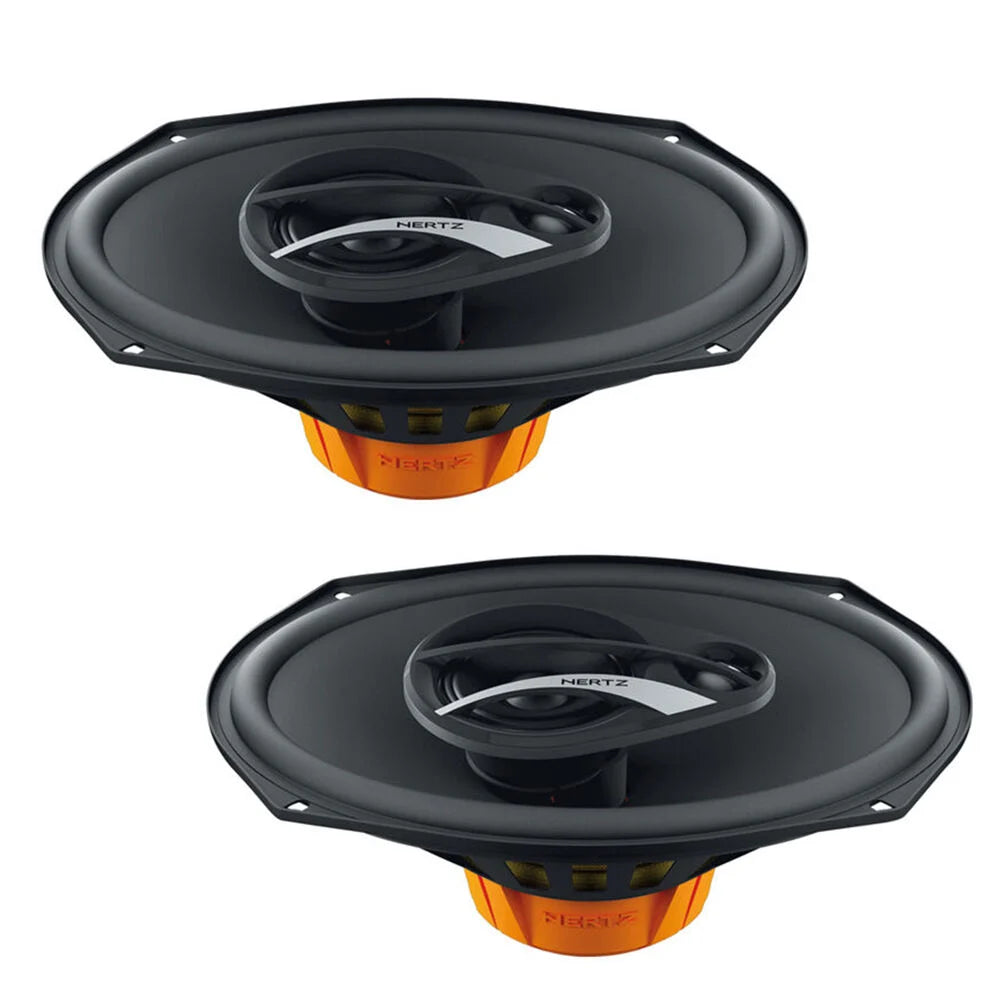

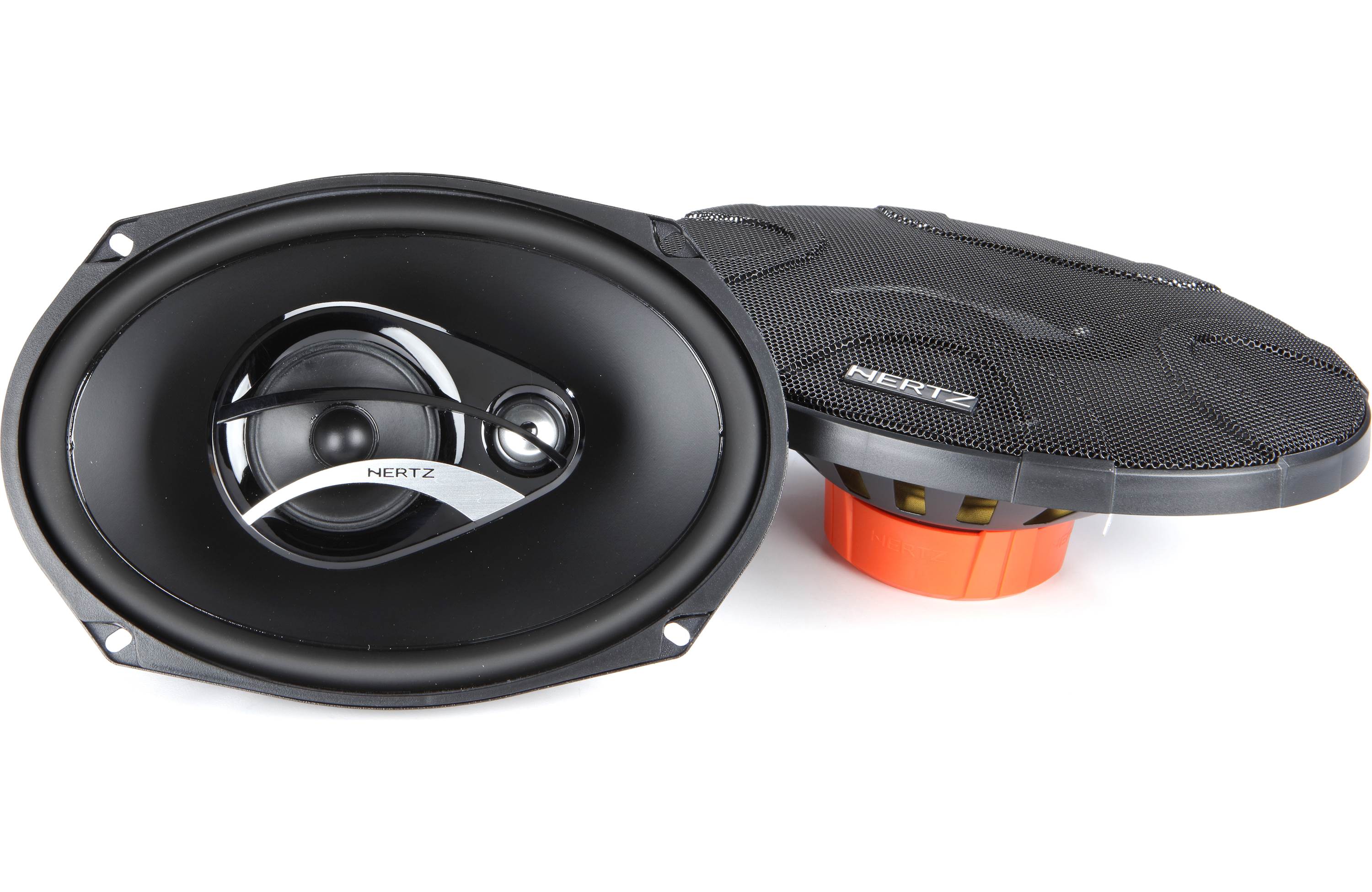

Hertz Dieci DCX 690.3 - 3-Way Coaxial Speaker
An authentic 3-way coax capable of reproducing a wide frequency spectrum. The DCX 690.3 car audio coaxials uses an oversized magnetic group, TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange and a PEI dome tweeter. The result is linearity, wide dispersion and extra-ordinary efficiency not found in traditional coax components. An involving, emotional sound, even at high SPL levels.
- Large motor assembly for mobile voice coil control.
- Pure copper voice coil, wound on conex former, for maximum lightness.
- Water-repellent treated paper cone.
- TPU surround, for wide excursion and resonance damping.
- 60 mm paper tweeter with ferrite magnet.
- Supertweeter with PEI dome, for compactness and energy at high frequencies.
- DIN size basket protected by abrasion-proof dust paint.
- Tin-plated, high current terminals.
- Silver-plated lead wires for maximum reliability and conductivity.
- Butyl rubber protective cover, against crashes and abrasions.
- Epoxy glue for basket and motor system provides perfect coupling.
- Low carbon content plates for maximum magnetic permeability and high heat dissipation
|Power Handling - Peak W||180|
|Power Handling - Continuous W||90|
|Frequency response Hz||45 ÷ 21k|
|Sensitivity dB SPL||93|
|Voice coil Ø mm (in.)||25 (1.0|
|Woofer size mm (in.)||(6.0 x 9.0)|
|Tweeter size mm (in.)||60 (2.5)|
|Woofer magnet||High density flux ferrite|
|Tweeter magnet||High density flux ferrite|
|Woofer cone||Water-repellent pressed paper|
|Tweeter dome||Water-repellent pressed paper|
