Availability: Back-ordered - Reserve yours today! By clicking add to cart you understand that this product will ship when available.
  • Peak Power : 240W
  • RMS Power : 80W
  • Sensitivity : 88dB/ W at 1 m
  • Frequency Response : 69Hz - 21,000Hz

- Woofer Size: 6-1/2 in (165mm)
- Woofer Diaphragm: Injection PP cone
- Tweeter Size: 1 in (25mm)
- Tweeter Diaphragm: Soft Dome
Dimensions (without grill)
- Width: 6-1/14 in (158mm)
- Height: 6-1/4 in (158mm)
- Depth: 2-15/16 in (75mm)
- Mounting Depth: 2-3/16 in (56mm)

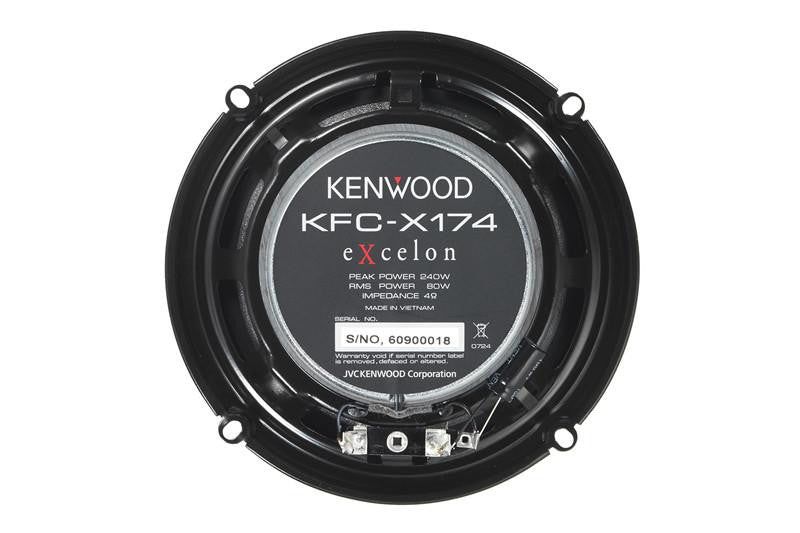

Model Name KFC-X174
System 2way-2speaker
Power Handling KITS Spec
Peak Input Power 240W
Maximum Input Power 100W
Rated Power 50W
CTA Spec (CTA-2031 Compliant)
RMS Power 80Watts RMS
Sensitivity 88dB/ W at 1 m
Frequency Response 69 Hz~21,000 Hz
Woofer Diaphragm P.P. Cone Gray
Size Oversized 165 mm 6-1/2 inch
Surround Rubber
Basket Steel
Magnet Ferrite φ90 x t15
Tweeter Diaphragm Soft Dome
Size 25 mm 1 inch
Magnet Nd Up to Engineer
Dimension Woofer
with Grille
Width 180.0 mm 7-1/16 inch
Height 180.0 mm 7-1/16 inch
Depth 84.2 mm 3-5/16 inch
without Grille
Width 158.0 mm 6-1/4 inch
Height 158.0 mm 6-1/4 inch
Depth 75 mm 2-15/16 inch
Cut-out Diameter 127.5 mm 5 inch
Tweeter Height 19 mm 3/4 inch
Mounting Depth 56.0 mm 2-3/16 inch

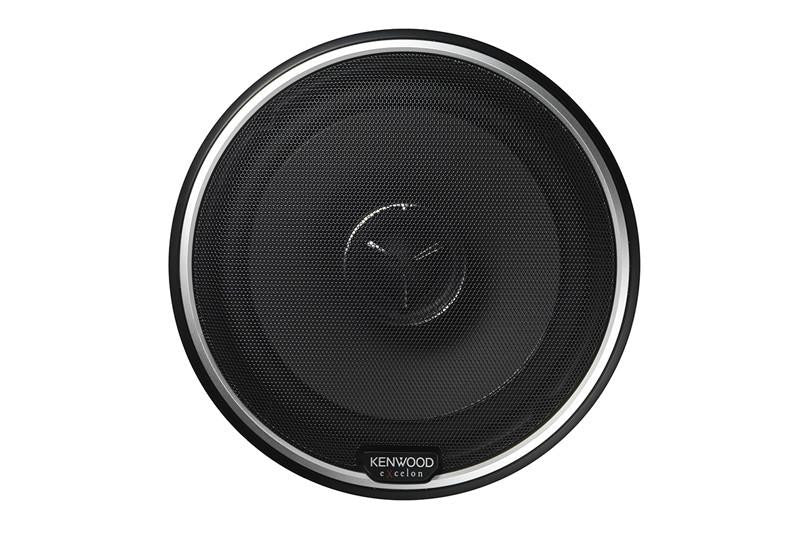

Accessory Grille 2 pcs
Grille Holder
Punching Net
Tweeter with Woofer Frame -6dB/oct
GM Bracket 2 pcs
Screw sets
Binding Head Tapping Screw φ4 x 25 mm 8 pcs
Binding Head Tapping Screw φ4 x 8 mm(TP Head) 8 pcs
Speed Nut φ4 8 pcs
Speaker Cord 0.3 m 1 set
Adhesive Tape 1 set
