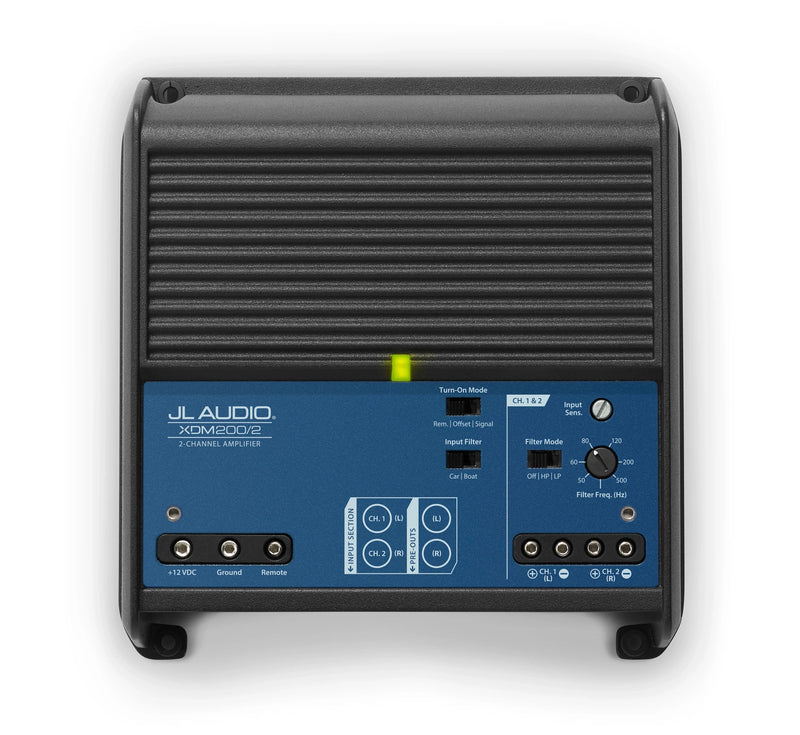

2-Channel Class D Full-Range Car/Marine Amplifier, 100 W x 2 @ 2 Ω / 75 W x 2 @ 4 Ω - 14.4V
The tiny XDM200/2 packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM200/2 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM200/2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or cockpit.

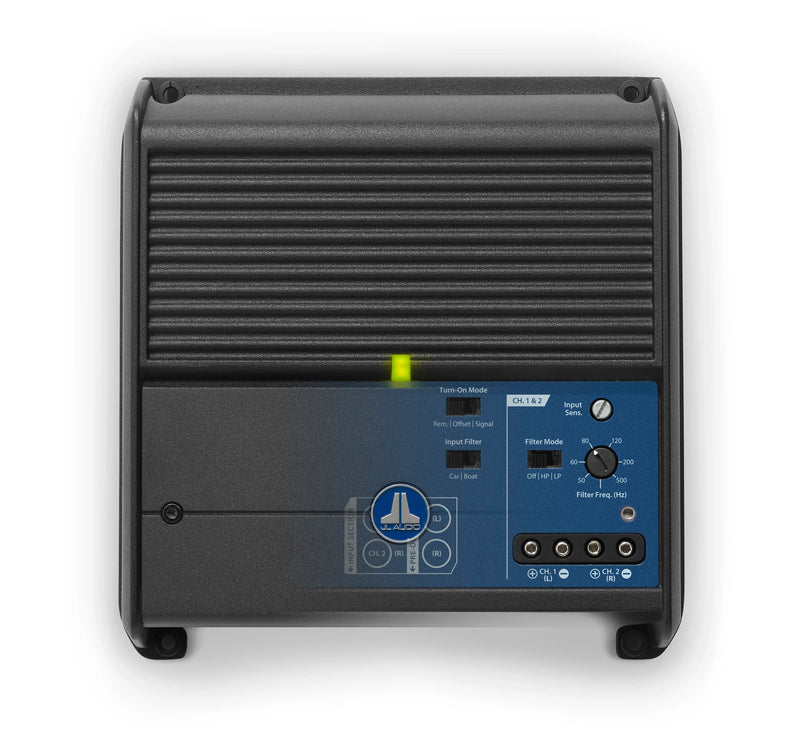

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
| @ 4 Ω | 75 W RMS x 2 |
| @ 2 Ω | 100 W RMS x 2 |
| Bridged @ 4Ω | 200 W RMS x 1 |
| @ 4 Ω | 60 W RMS x 2 |
| @ 2 Ω | 90 W RMS x 2 |
| Bridged @ 4Ω | 180 W RMS x 1 |
| Frequency Response | 12 Hz - 22 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >150 / 50 Hz |
| Damping Factor @ 2 Ω | >75 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 8 AWG wire |
| Fuse Rating | 20 A (AFS, AGU or MaxiFuse™) |
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
| Security Cover for Controls | Yes |
| Pass-Through Preamp Output | Buffered |
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 6.85 in / 174 mm |
| Depth (D) | 7.09 in / 180 mm |
| Net Weight | 3.75 lb / 1.70 kg |
