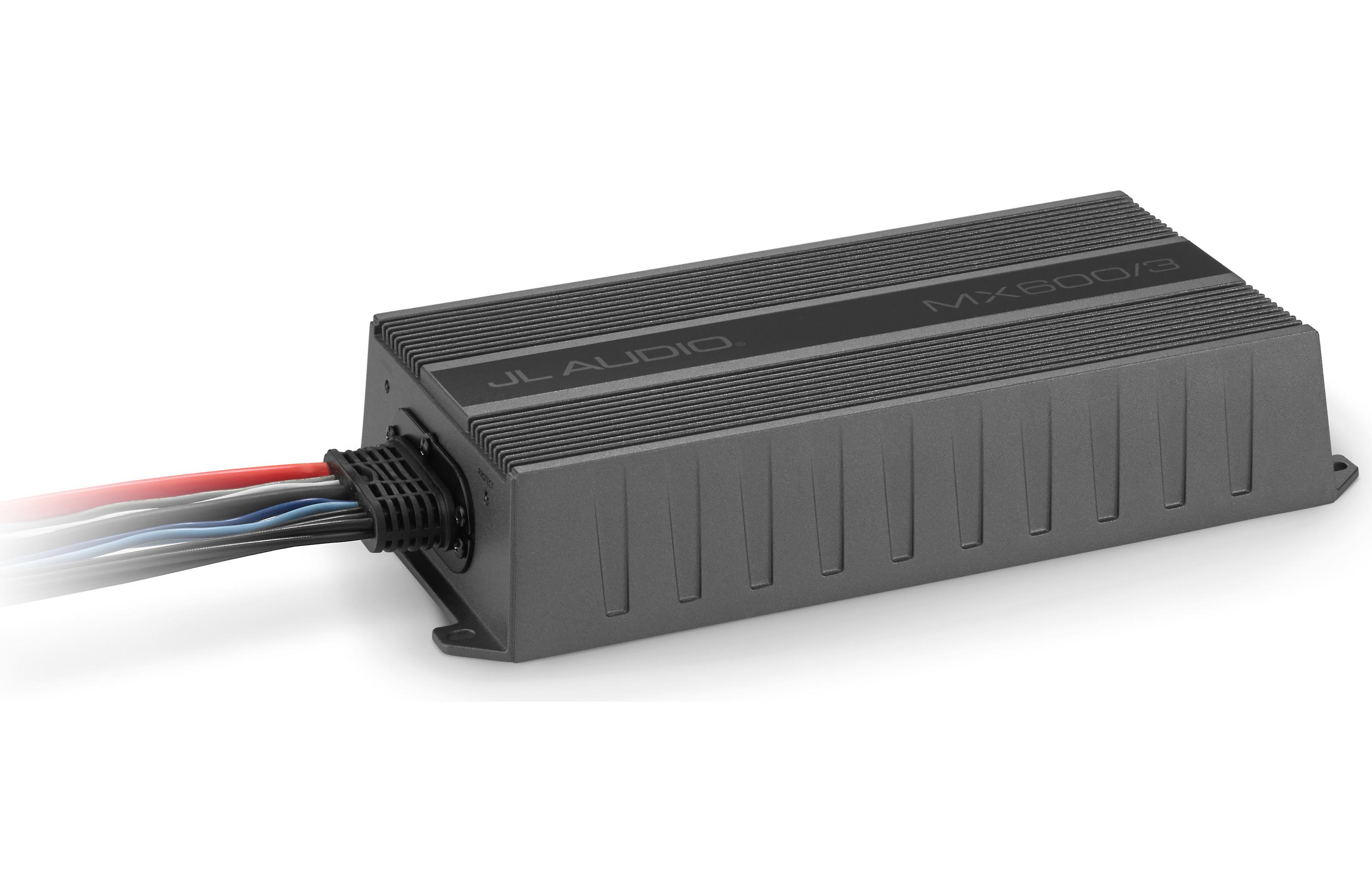

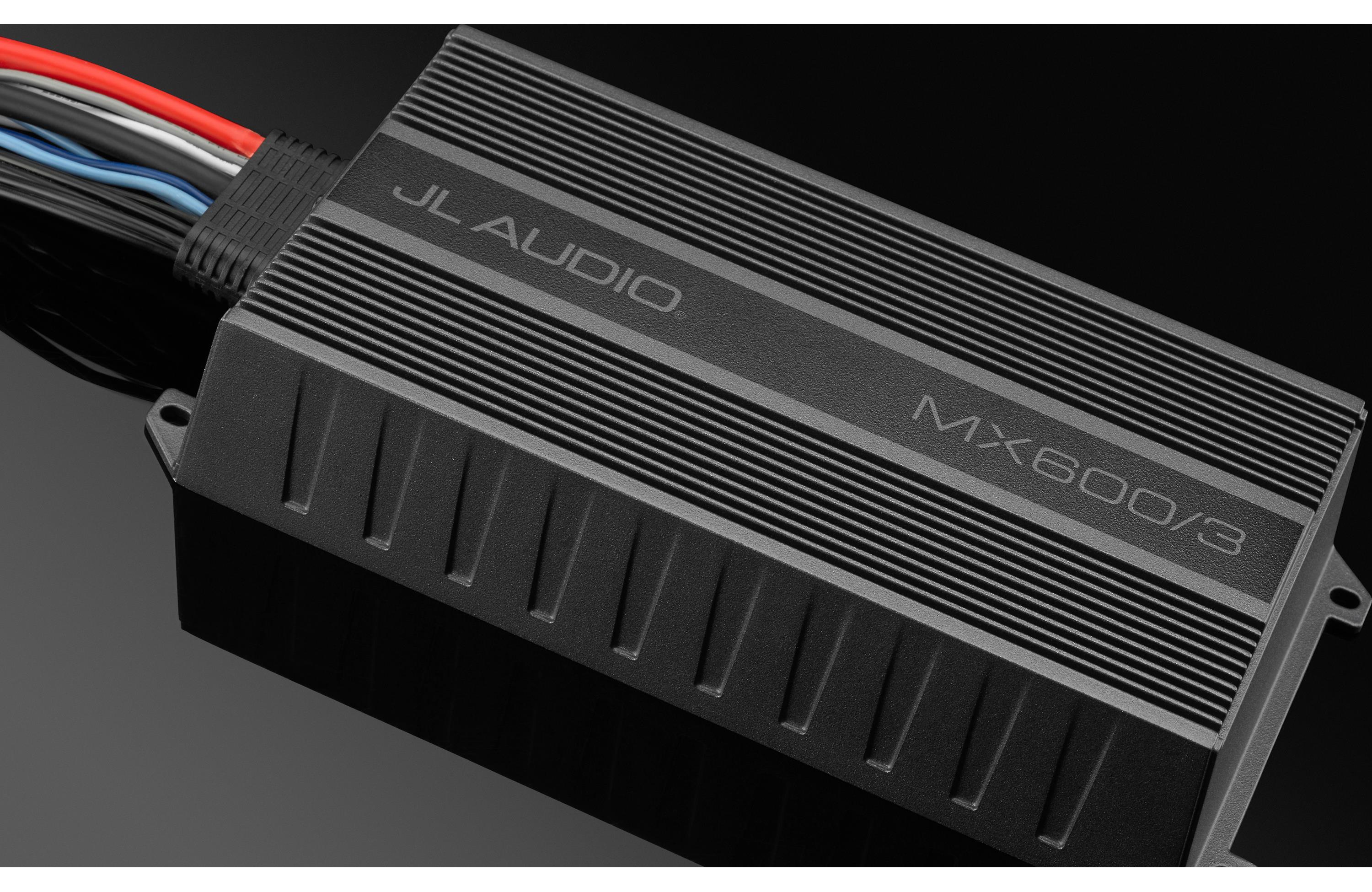

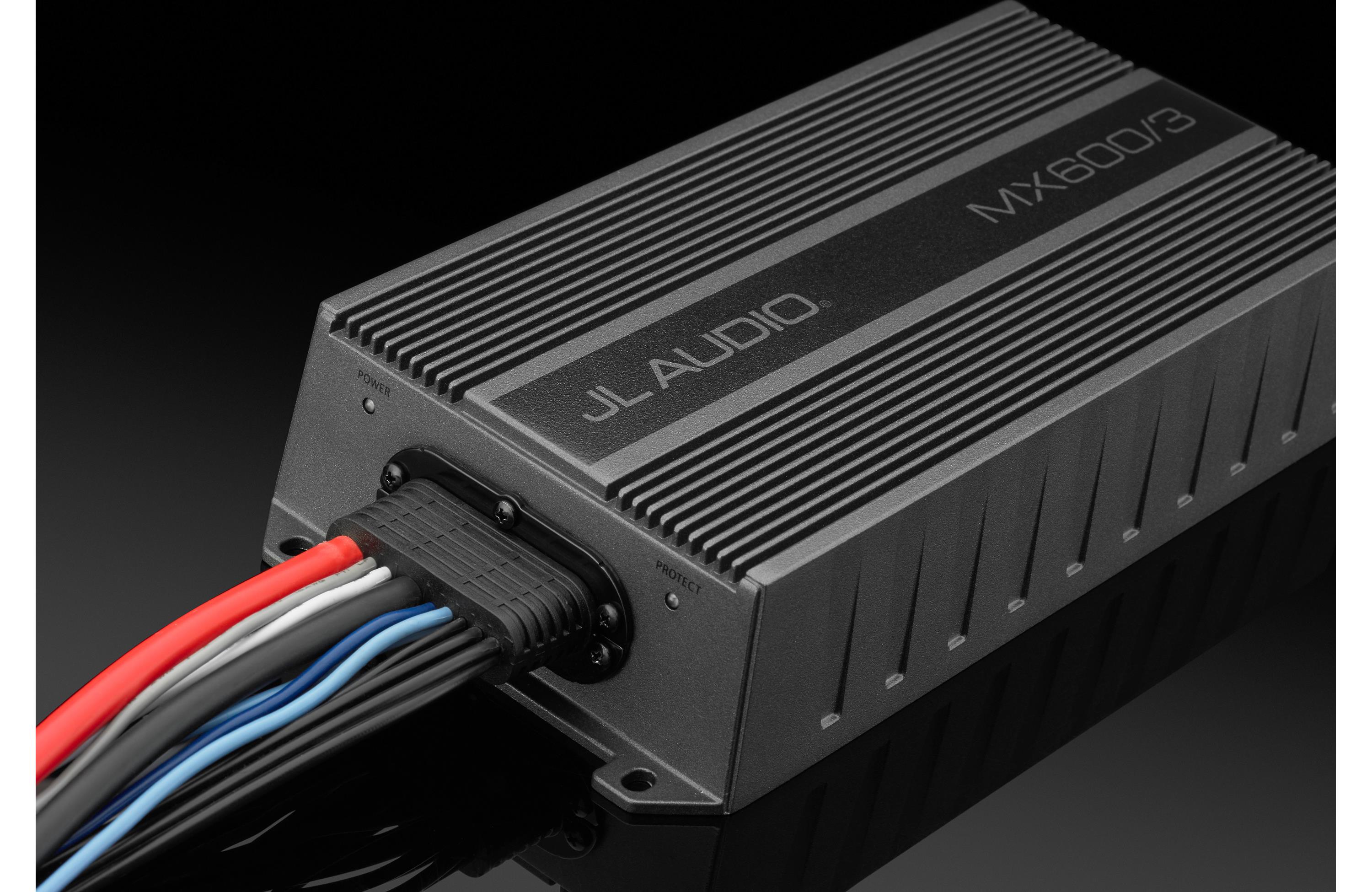

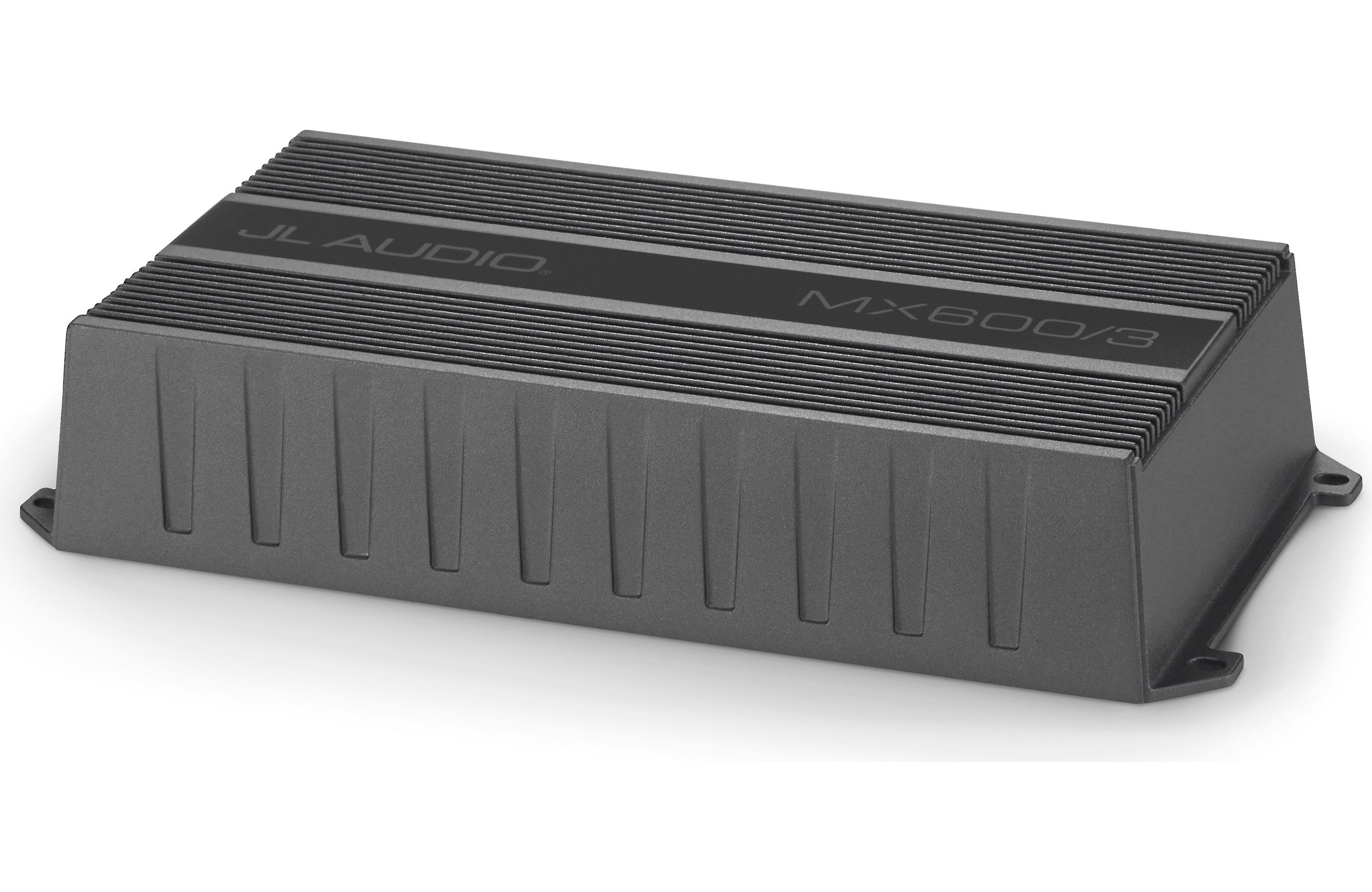

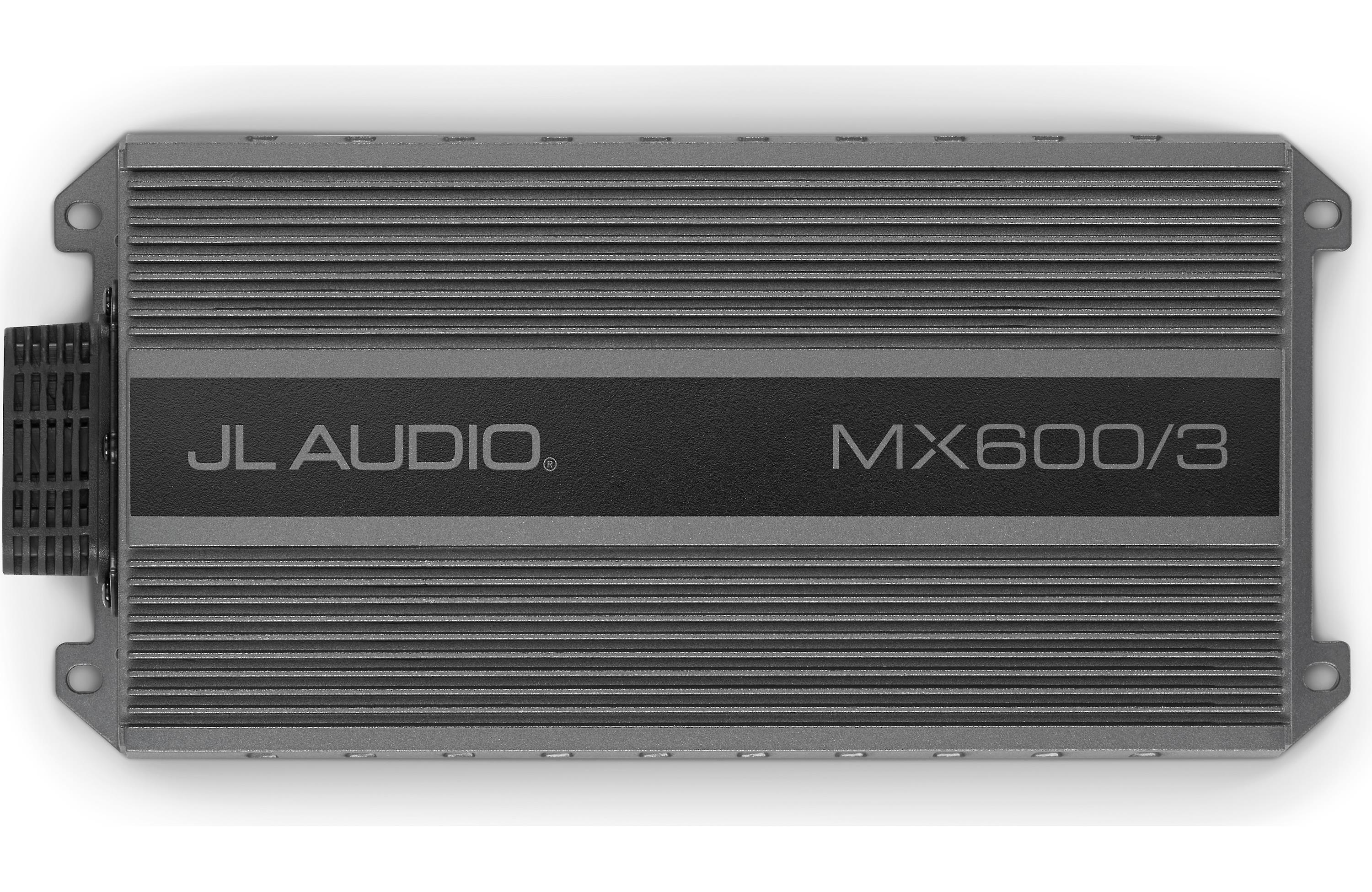

3-Channel Class D System Amplifier, 100 W x 2 + 400 W x 1 @ 2 Ω / 75 W x 2 + 250 W x 1 @ 4 Ω - 14.4V

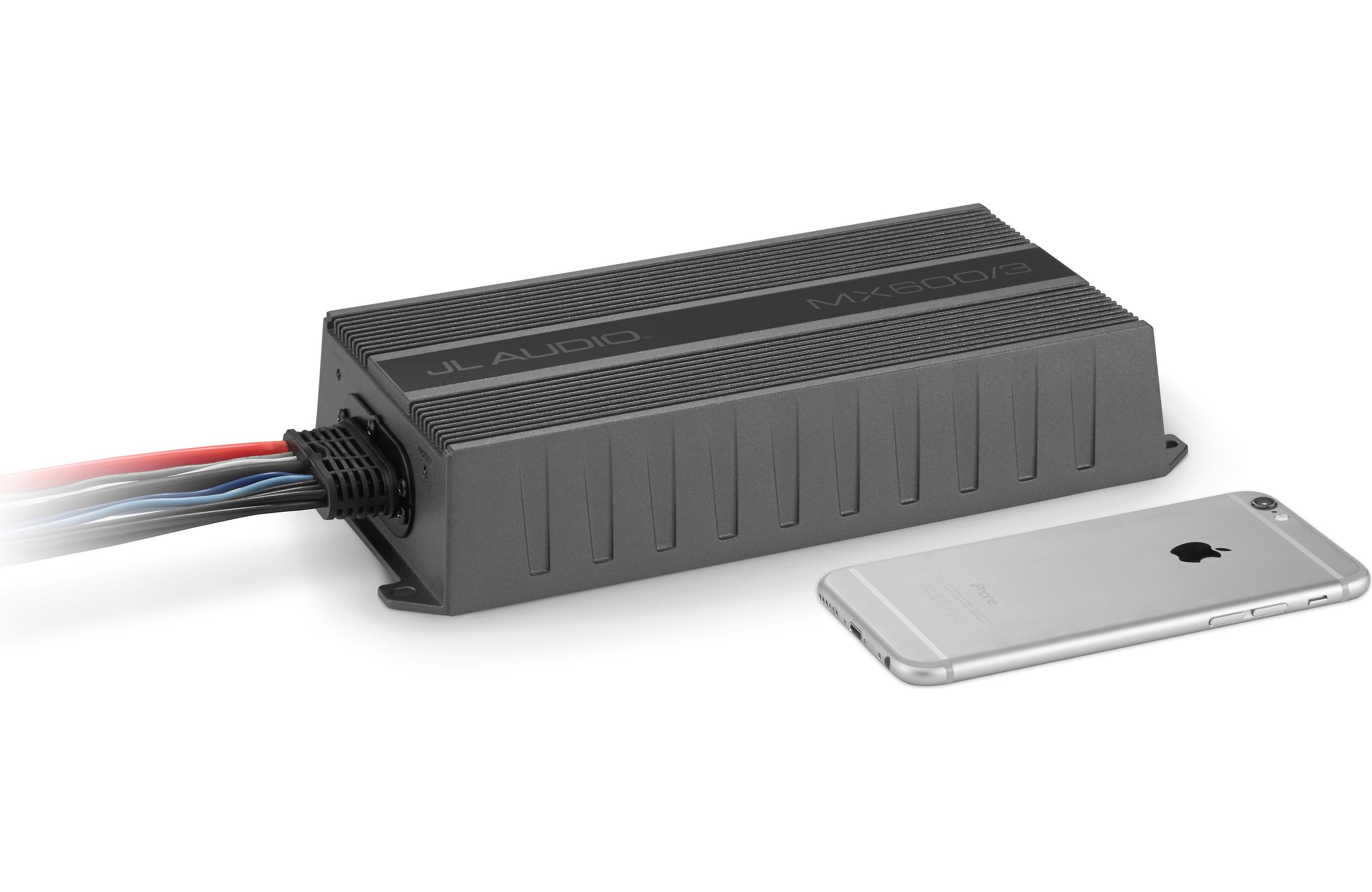

Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum housing is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a potent 75W x 2 into 4 ohms, plus a solid 400 watts for a subwoofer system, the MX600/3 makes a great all-in-one solution for driving a complete audio system from a single, ultra-compact chassis.

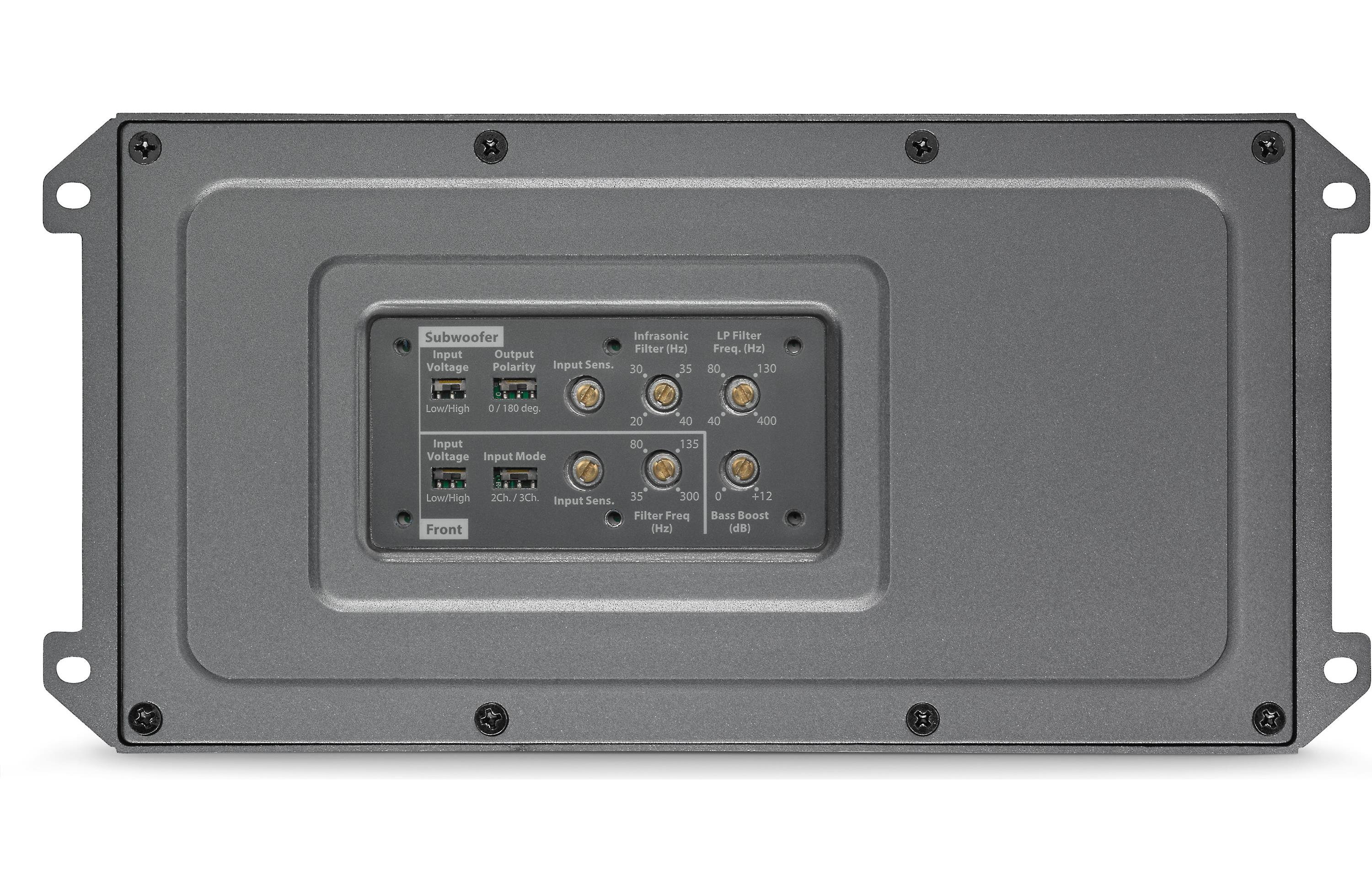

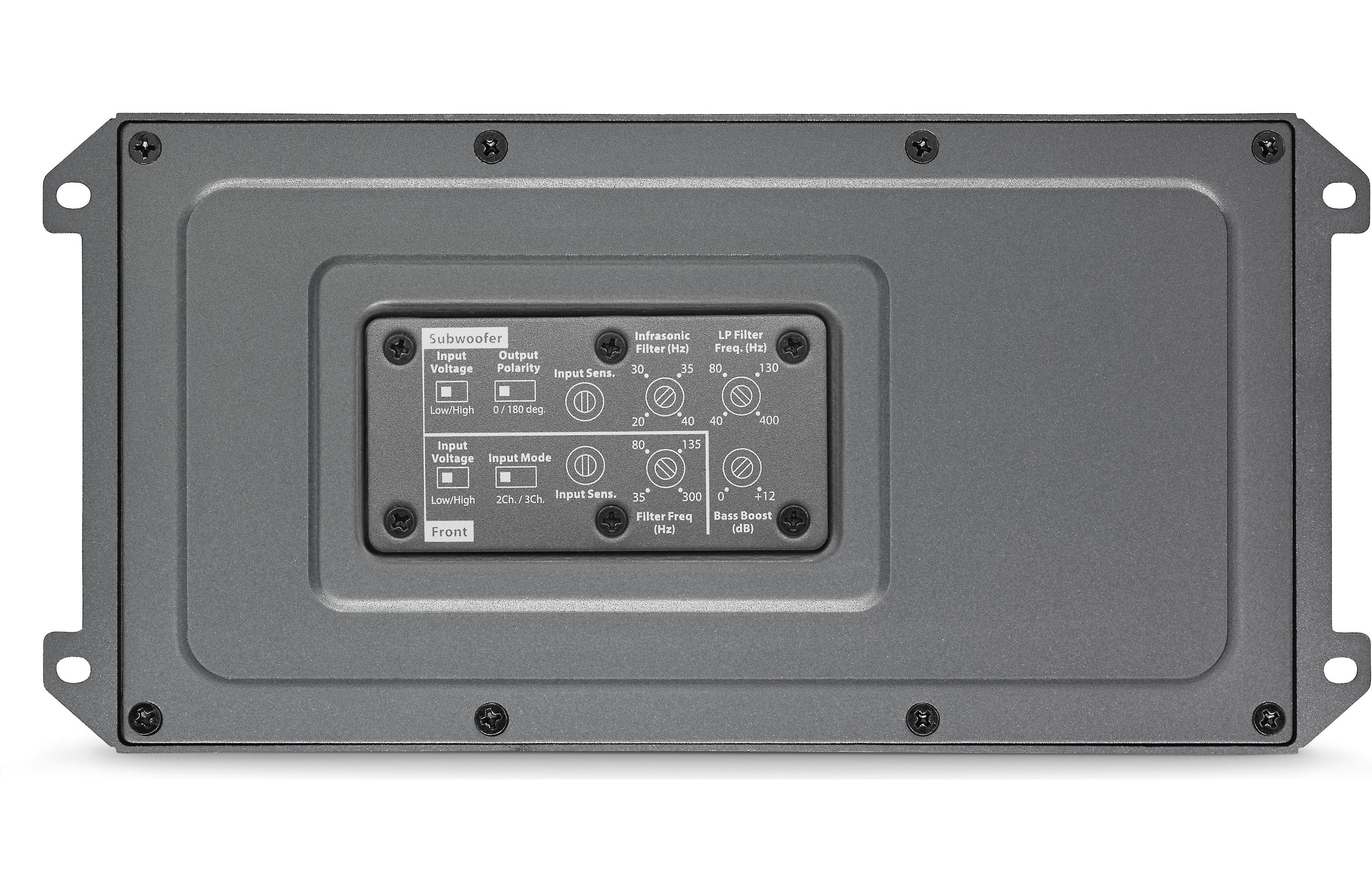

Onboard filters include a 12 dB / octave high-pass crossover on the main channels and a dedicated 24 dB / octave low-pass crossover for the subwoofer channel. Other features include a bass boost EQ, variable infrasonic filter and subwoofer output polarity switch. A dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Rated Continuous (RMS) Power @ 14.4 V
|Main Channels @ 4 Ω||75 W RMS x 2|
|Main Channels @ 2 Ω||100 W RMS x 2|
|Main Channels - Bridged @ 4Ω||200 W RMS x 1|
|Subwoofer Channel @ 4 Ω||250 W RMS x 1|
|Subwoofer Channel @ 3 Ω||300 W RMS x 1|
|Subwoofer Channel @ 2 Ω||400 W RMS x 1|
|Subwoofer Channel @ 1.5 Ω||N/A|
Rated Continuous (RMS) Power @ 12.5 V
|Main Channels @ 4 Ω||50 W RMS x 2|
|Main Channels @ 2 Ω||80 W RMS x 2|
|Main Channels - Bridged @ 4Ω||100 W RMS x 1|
|Subwoofer Channel @ 4 Ω||200 W RMS x 1|
|Subwoofer Channel @ 3 Ω||250 W RMS x 1|
|Subwoofer Channel @ 2 Ω||300 W RMS x 1|
|Subwoofer Channel @ 1.5 Ω||
|Frequency Response||20 Hz - 20 kHz (+0, -1dB)|
|S/N Ratio, referred to highest rated power||>88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|S/N Ratio, referred to 1 W||>68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|Damping Factor @ 4 Ω||>92 / 50 Hz|
|Damping Factor @ 2 Ω||>43 / 50 Hz|
|THD+N @ Rated Power (Main Channels)||<1% @ 2 Ω per Ch.|
|THD+N @ Rated Power (Subwoofer Channels)||<1% @ 2 Ω per Ch.|
|Input Voltage Range @ RCA Inputs||Switchable from 250 mV - 4 V RMS (Low) to 580 mV - 14 V RMS (High)|
|Min.Copper Power / Ground Wire Gauge||4 AWG wire|
|Fuse Rating||60 A (AFS, AGU or MaxiFuse™)|
|Filter Slope(s)||12 dB/octave|
|Filter Frequency Range: Channels 1 & 2 (front)||35 Hz - 300 Hz|
|Filter Frequency Range: Subwoofer Channel||40 Hz - 400 Hz|
|Filter Mode(s): Channels 1 & 2 (front)||High-Pass only|
|Filter Mode(s): Subwoofer Channel||Low-Pass only|
|Detented, Calibrated Filter Freq. Potentiometers||Yes|
|Filter Defeat Function||Yes|
|Remote Subwoofer Level Control||Optional (RBC-1)|
|Remote Level Modes||N/A|
|Channel Input Mode Switch||Yes (2/4 ch.)|
|Pass-Through Preamp Output||None|
|Source Channel Selection for PreOuts||N/A|
|Height (H)||1.77 in / 45 mm|
|Width (W)||9.33 in / 237 mm|
|Depth (D)||4.50 in / 115 mm|
