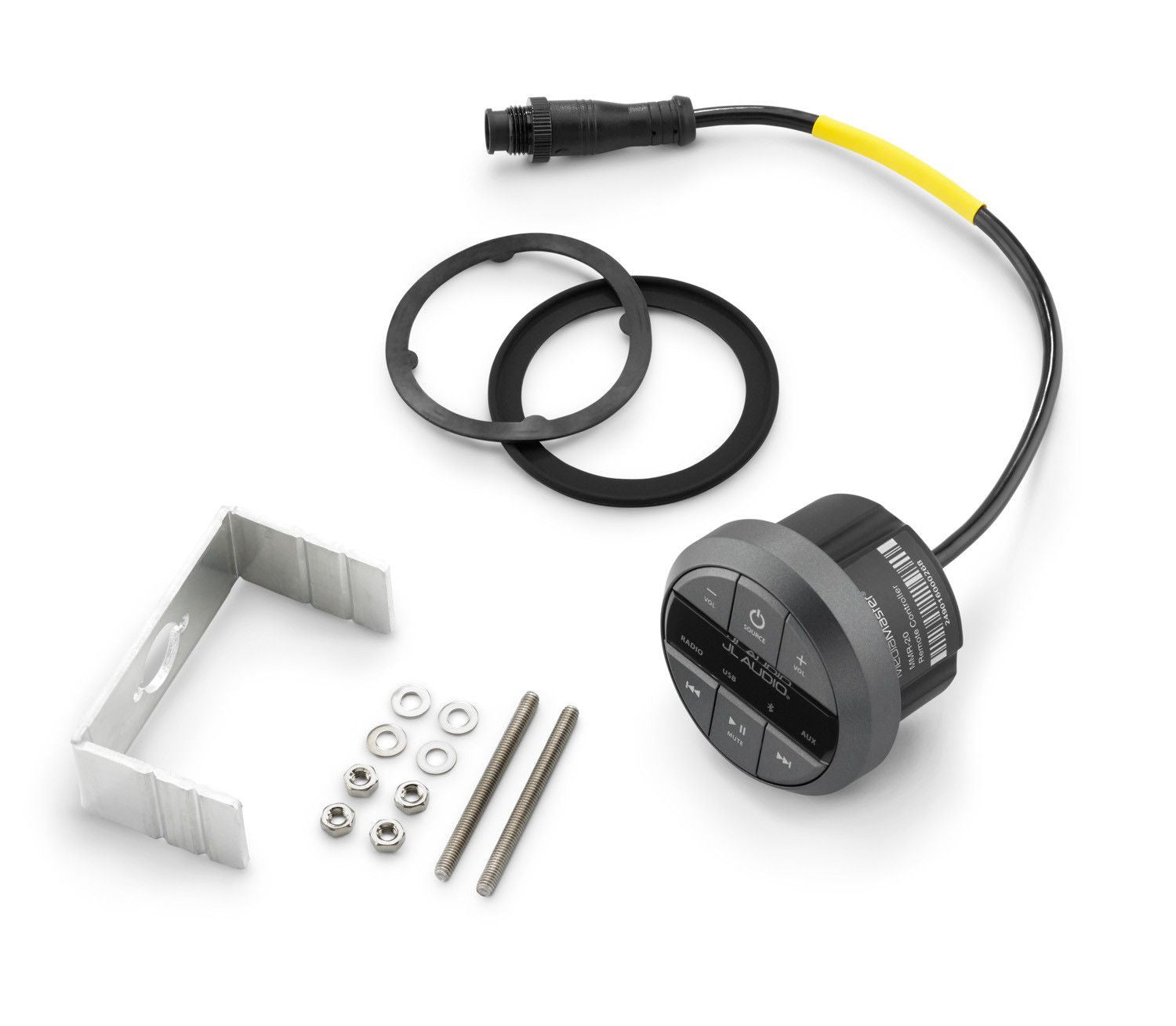

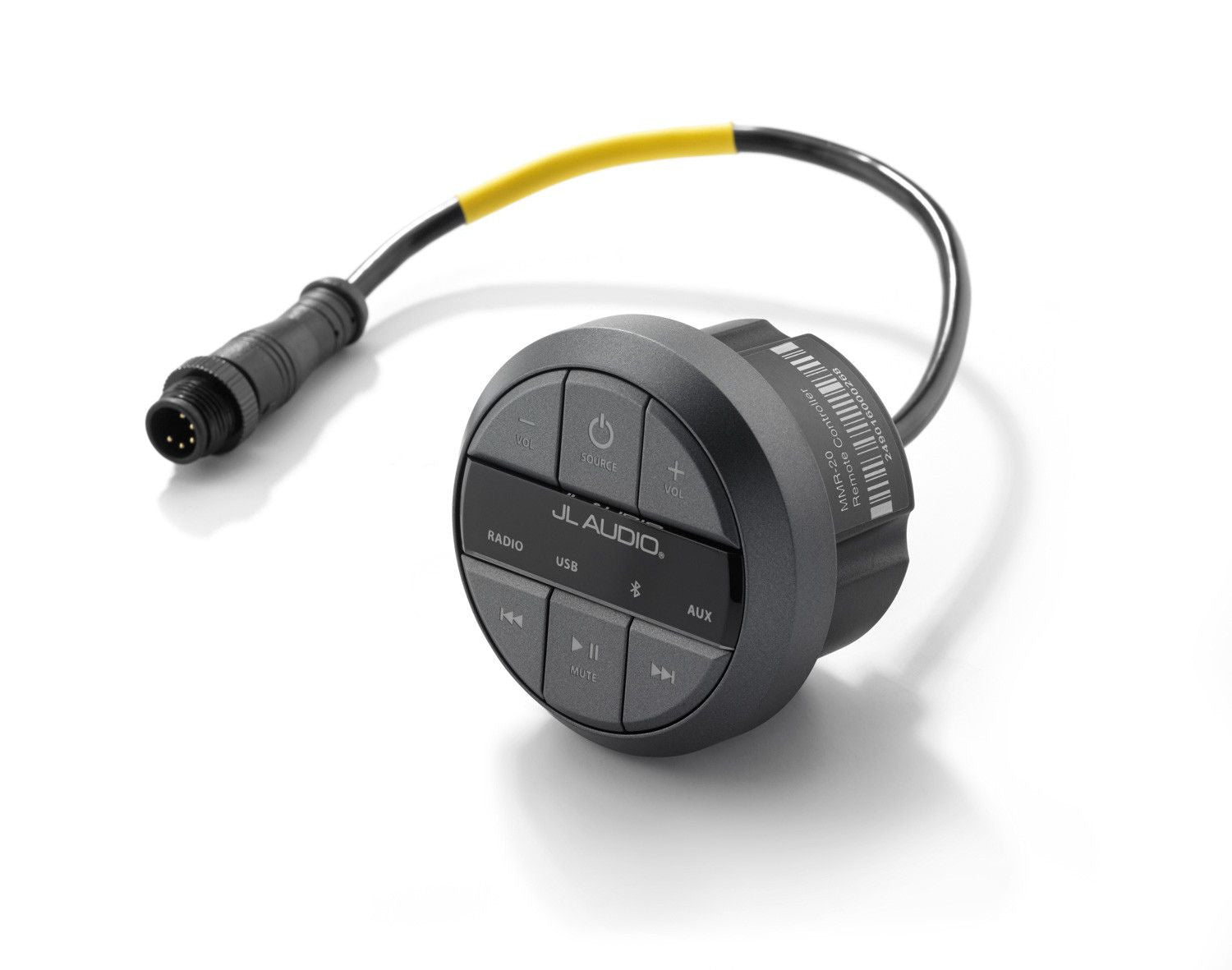

JL AUDIO MMR-20 - Round, wired, non-display remote controller for use with MediaMaster®
Round, wired, non-display remote controller for use with MediaMaster®
The MMR-20 is a wired remote controller engineered to add auxiliary control functionality to MediaMaster® source units.

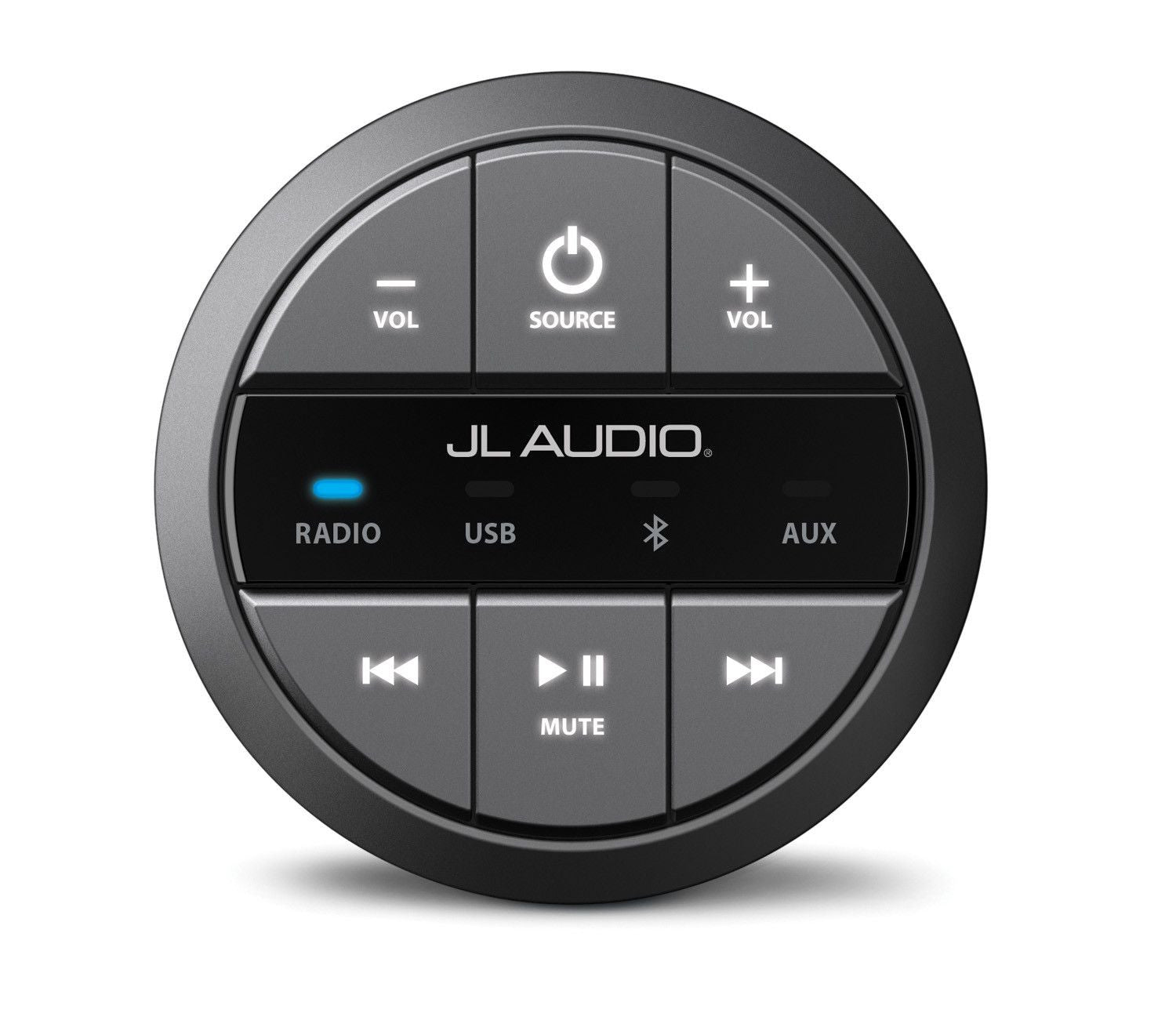

Built for marine and off-road applications, its weatherproof (IP67 rated) design places frequently used functions of your MediaMaster® source unit in a simple, intuitive design that’s easy-to-use. Its large, backlit controls and LED source indicators are easily identifiable, day or night, with brightness settings that can be adjusted using your MediaMaster® source unit.

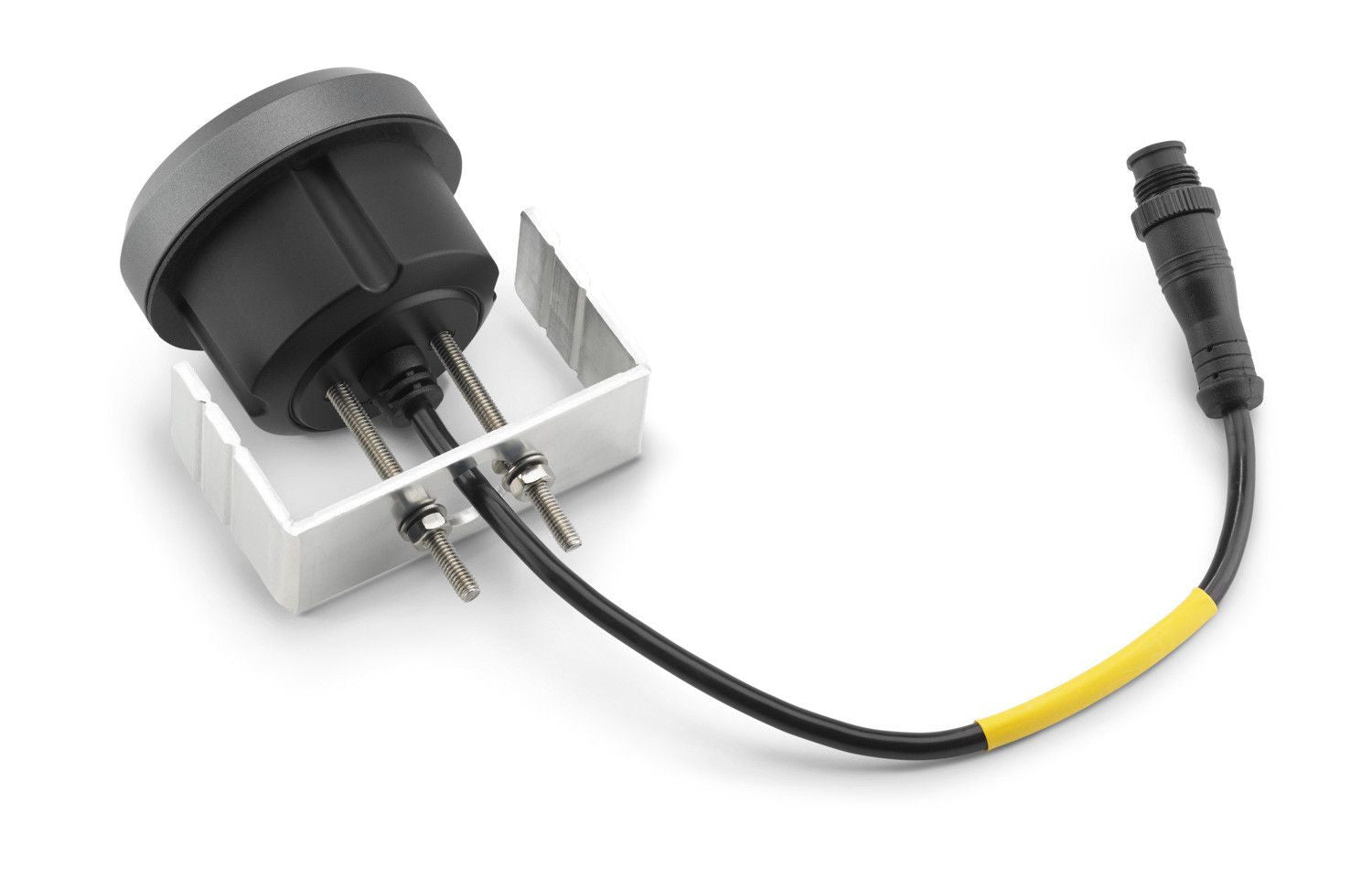

A small footprint and simple, one-hole design means the MMR-20 can be installed in even the tightest of spaces. Depending on your system layout, you may add up to three MMR-20 remote controllers to a single MediaMaster® source unit. Each MMR-20 can be connected up to 75 ft. (22.8 m) away from its source unit.
MediaMaster® remote control capabilities include:
- Power On/Off
- Source Select
- Volume Up/Down
- Track Up/Down (USB & BT)
- Track Fast-Forward/Fast-Rewind (USB)
- Favorite Up/Down (Radio)
- Play/Pause (USB & BT)
- Mute/Unmute (Radio & Aux)
Note: Requires MMC Connection Cables (sold separately). Connection cables are available in several lengths to fit your specific application. Y-splitters are also available to connect up to three remotes to a MediaMaster® source unit.
|Maximum Mounting Panel Thickness||1.5 in / 38 mm|
|Mounting Hole Diameter||2 in / 50 mm|
|Rear Depth (A)*||1.16 in / 29 mm|
|Width (W)||2.36 in / 60 mm|
|Height (H)||2.36 in / 60 mm|
|Depth (D)||0.59 in / 15 mm|
*Total mounting depth is greater (and varies by installation) with mounting bracket.
