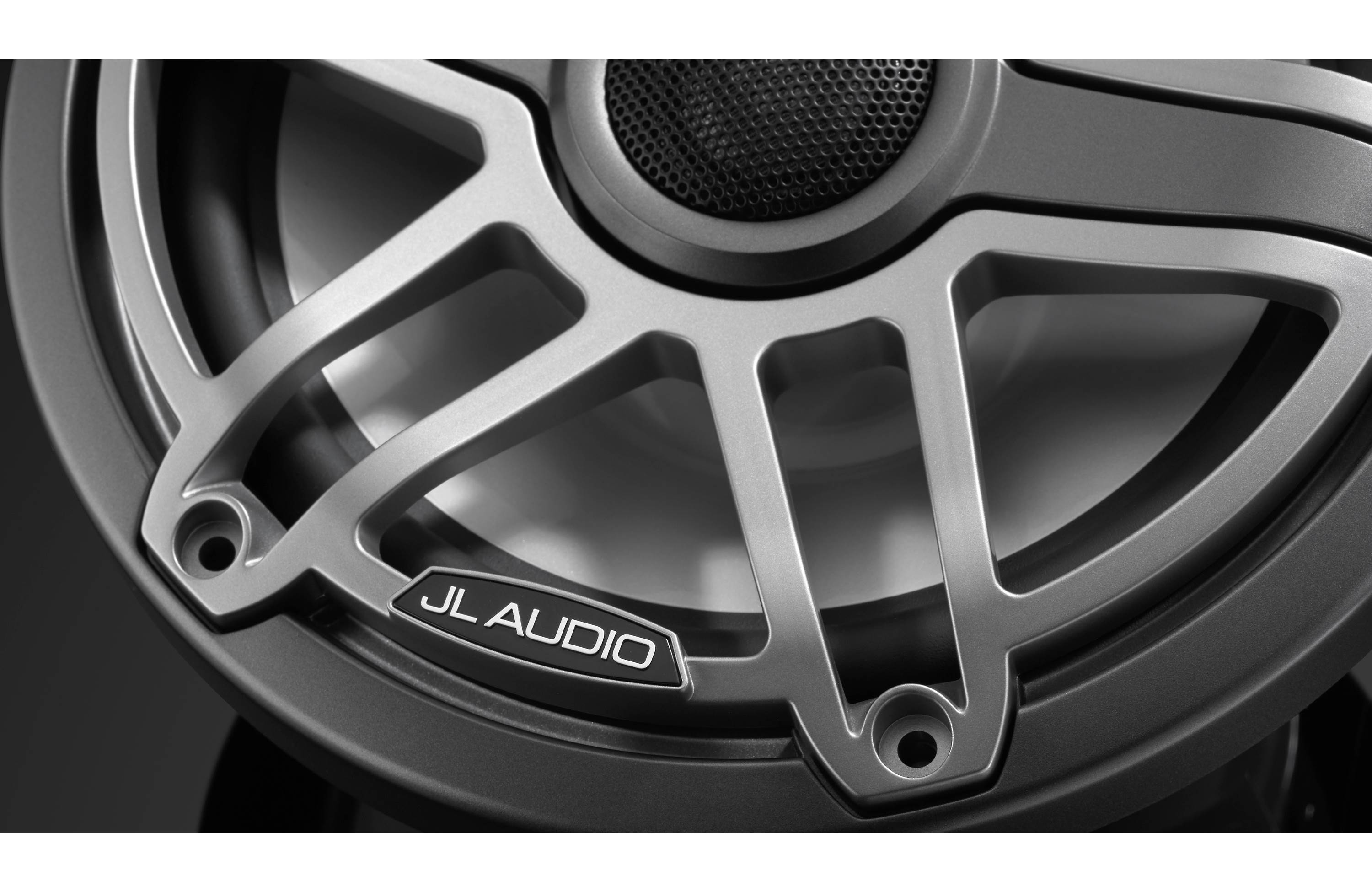

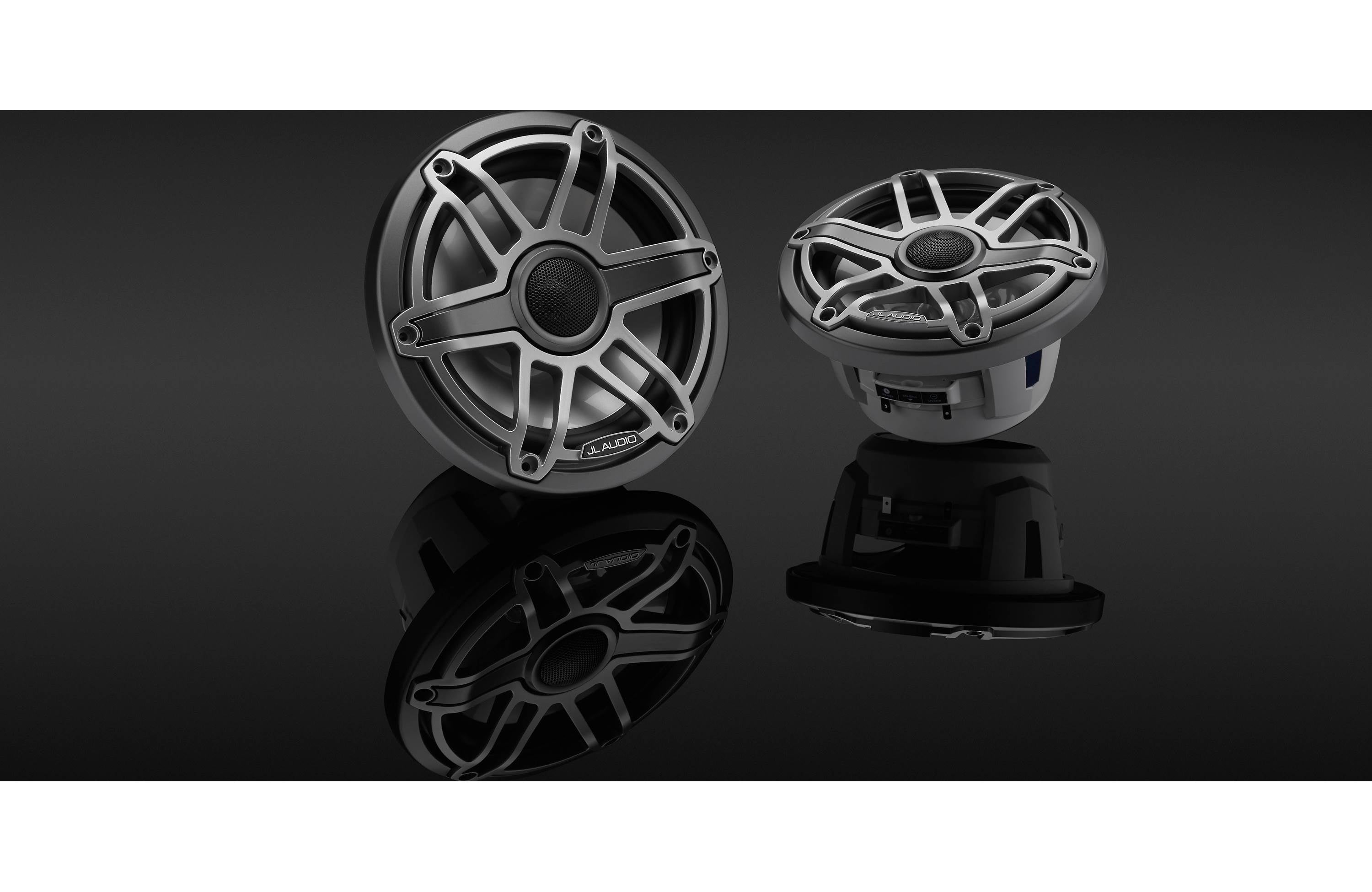

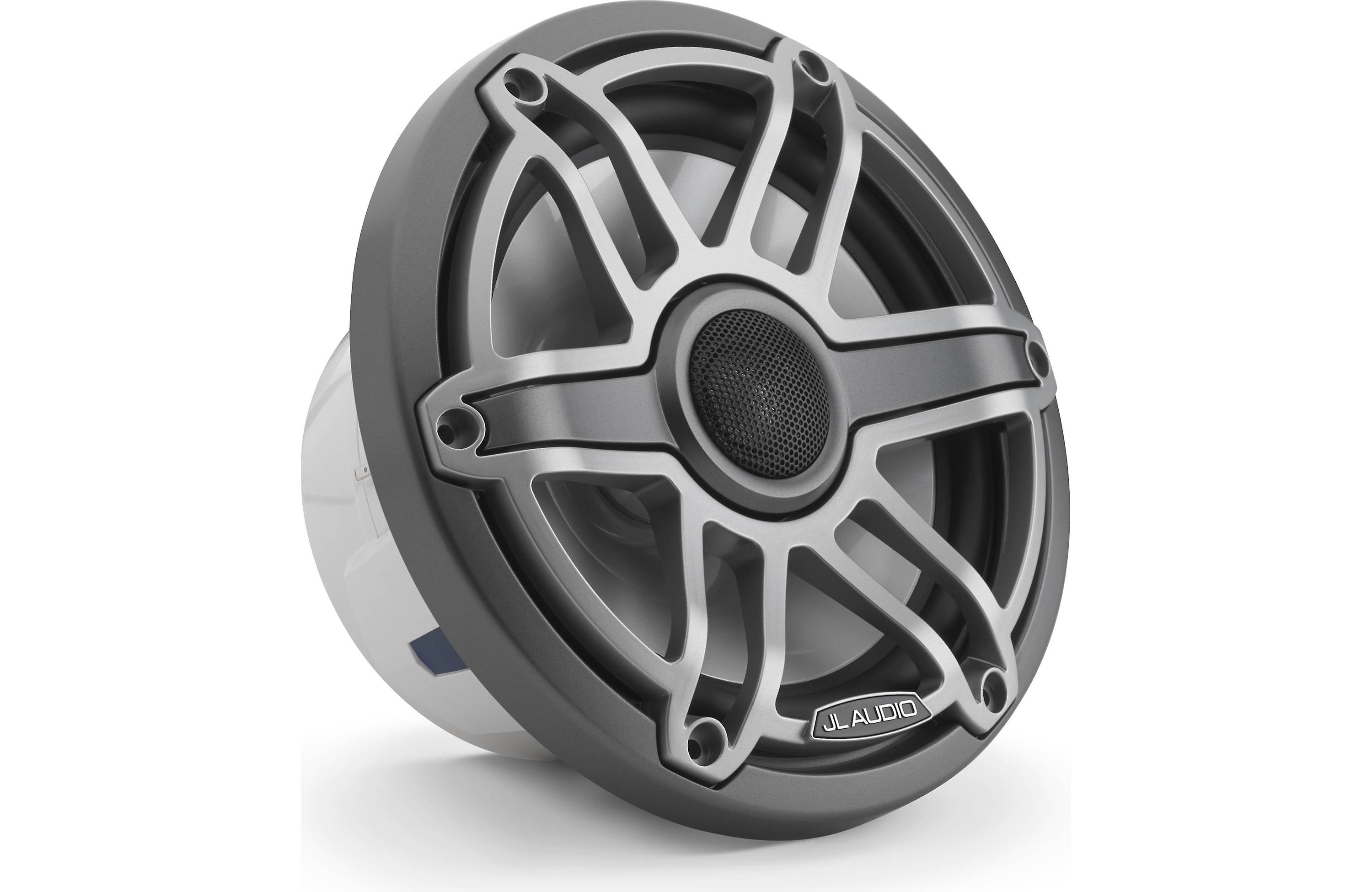

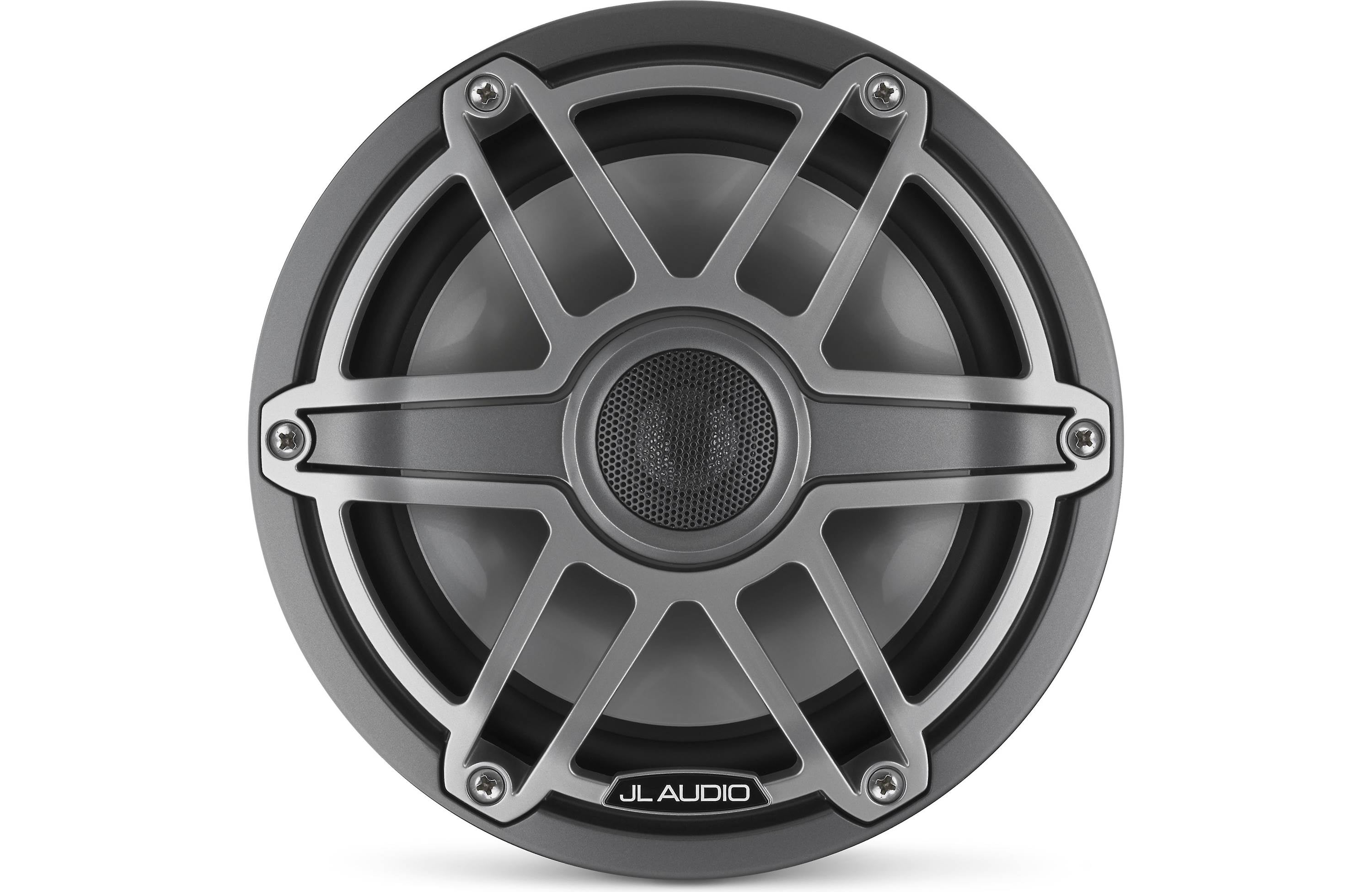

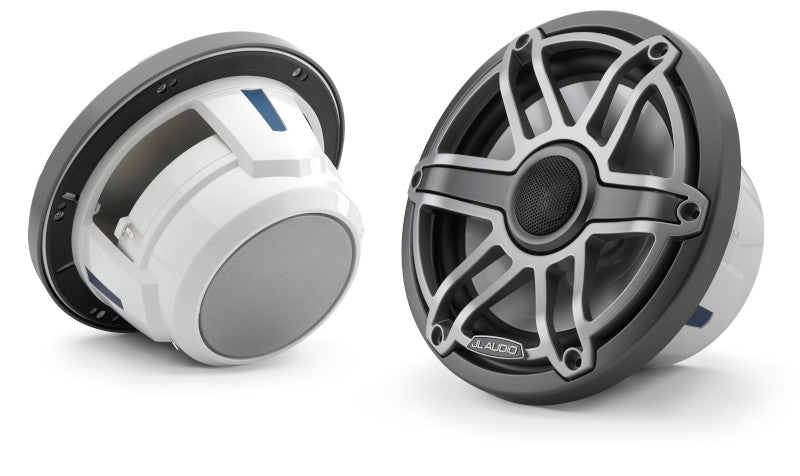

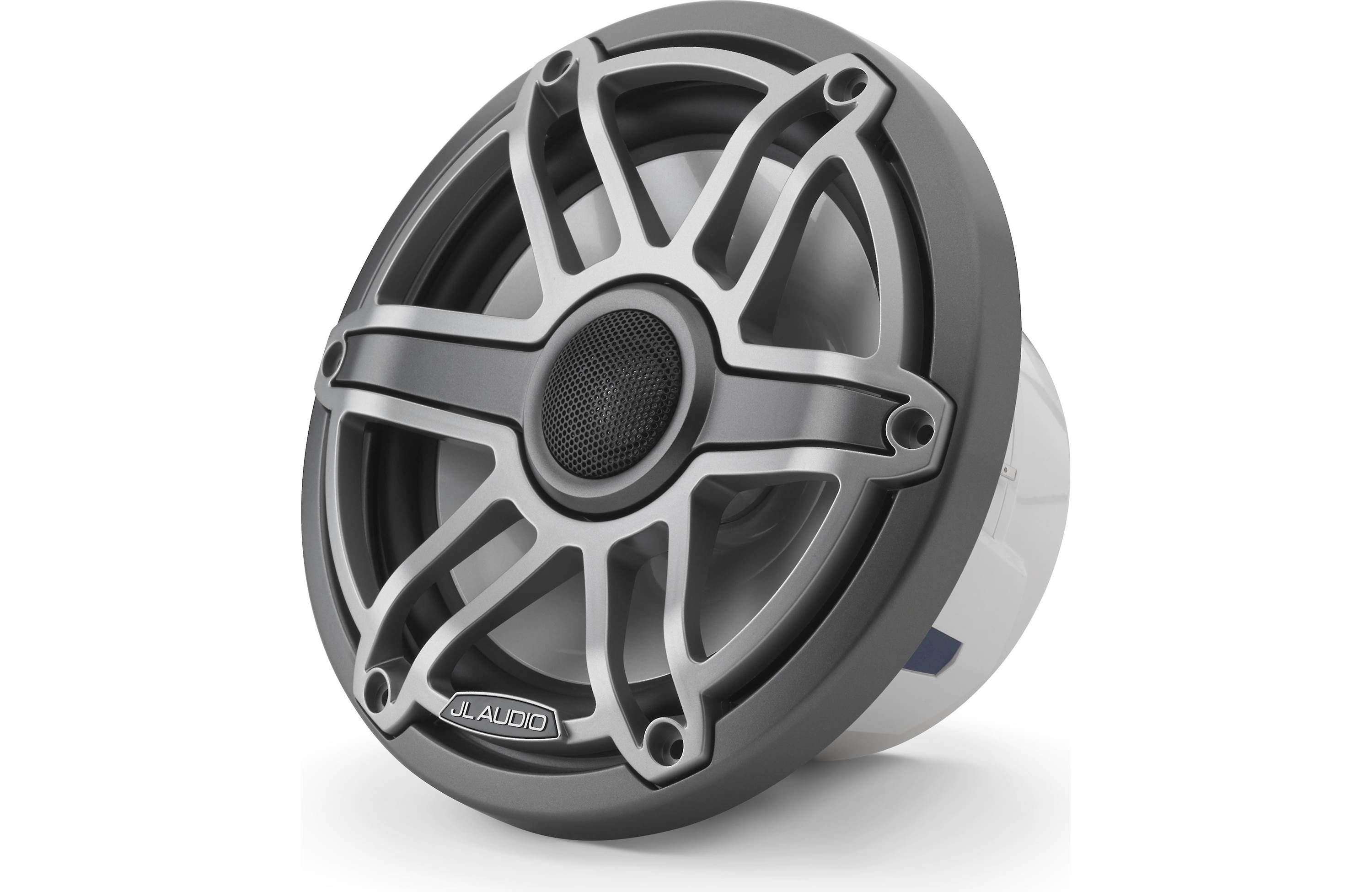

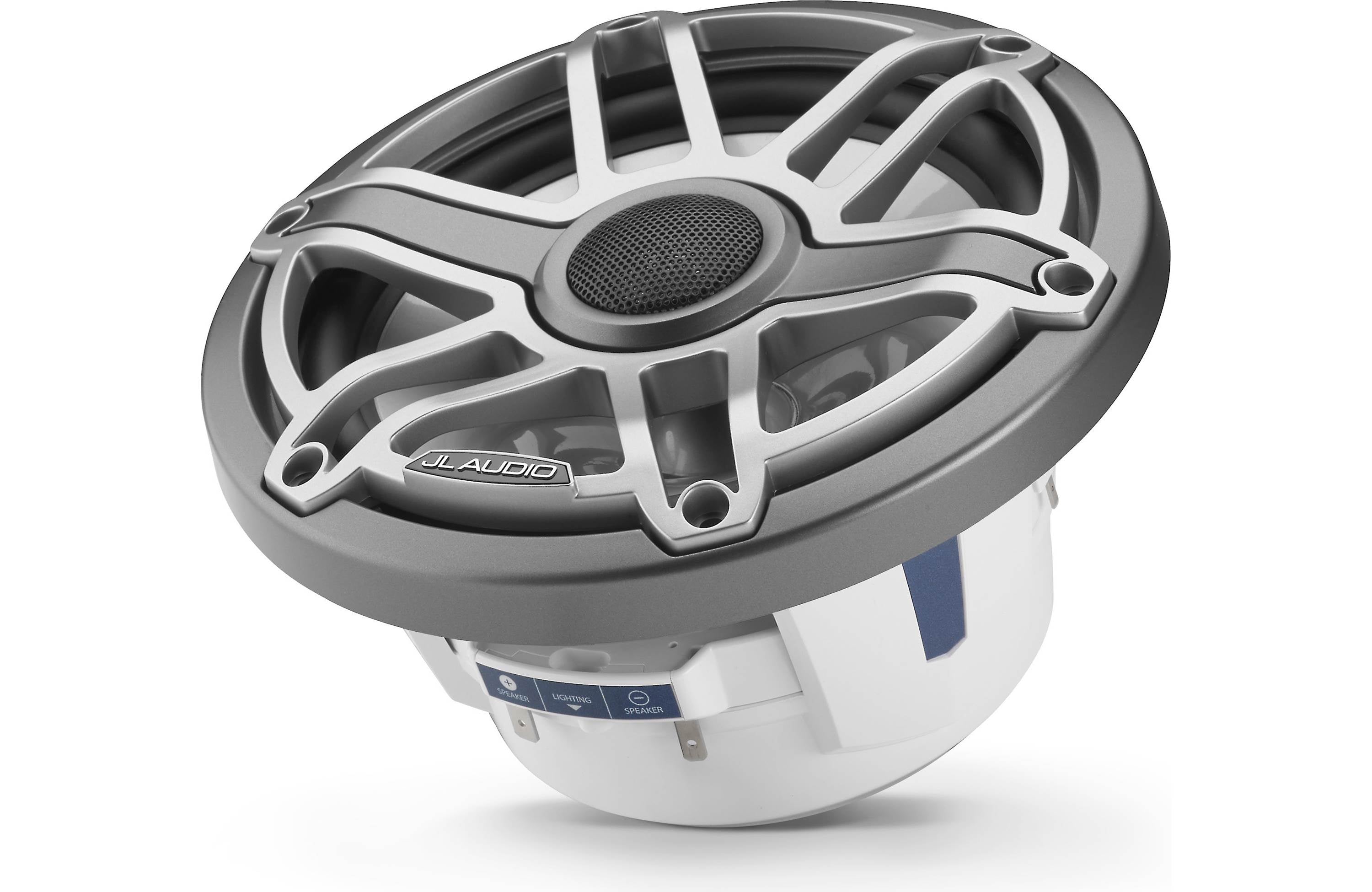

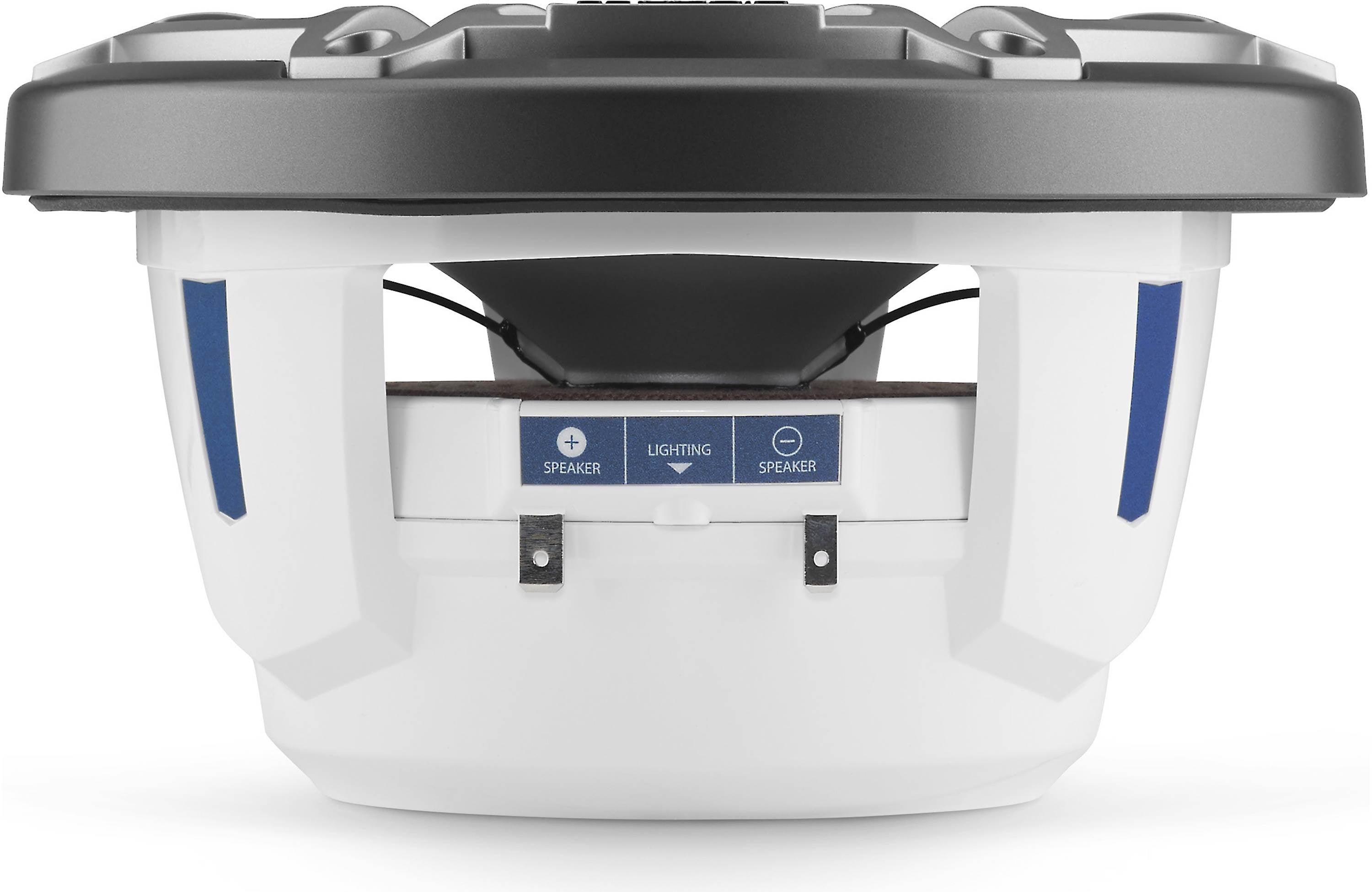

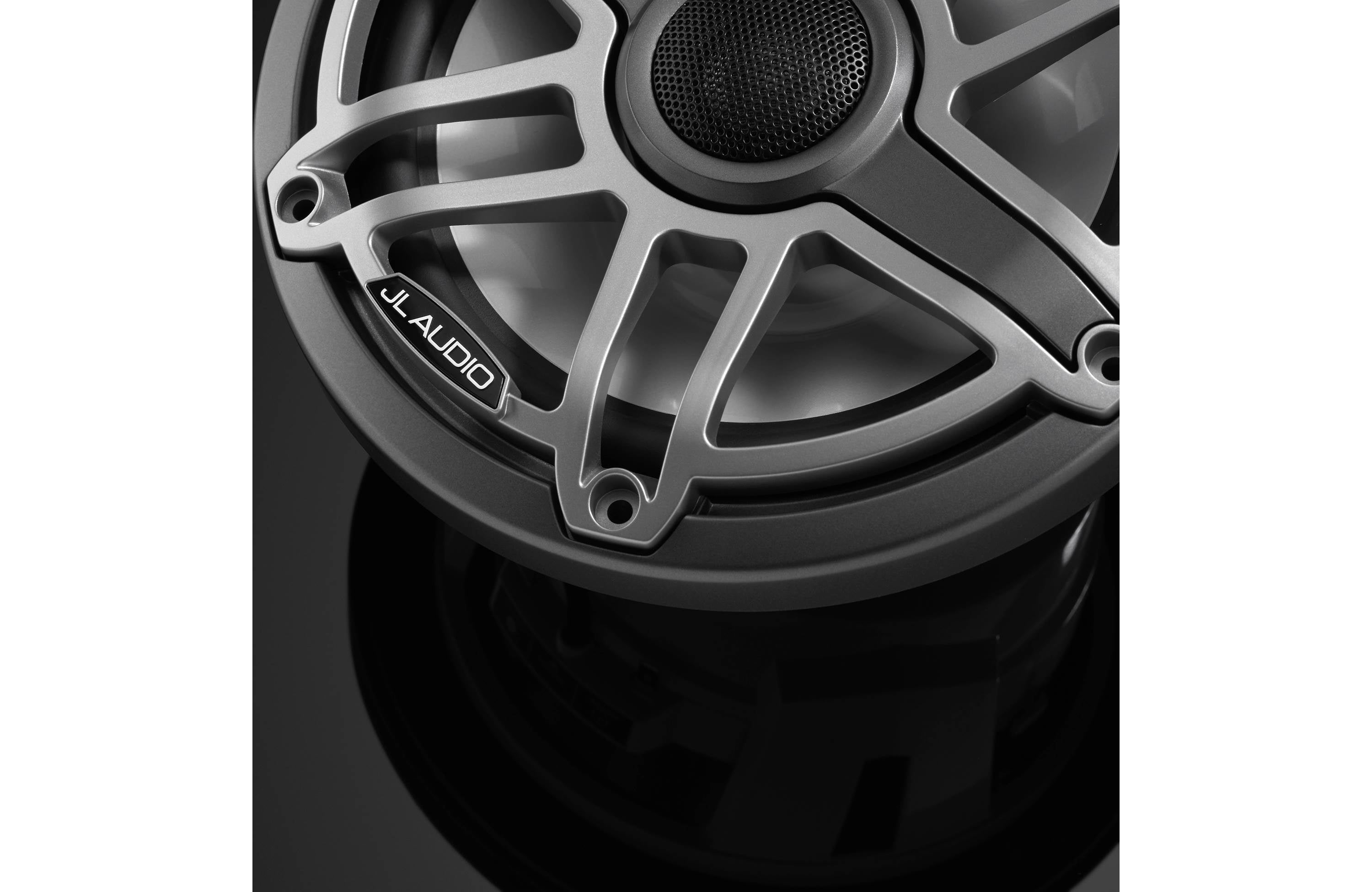

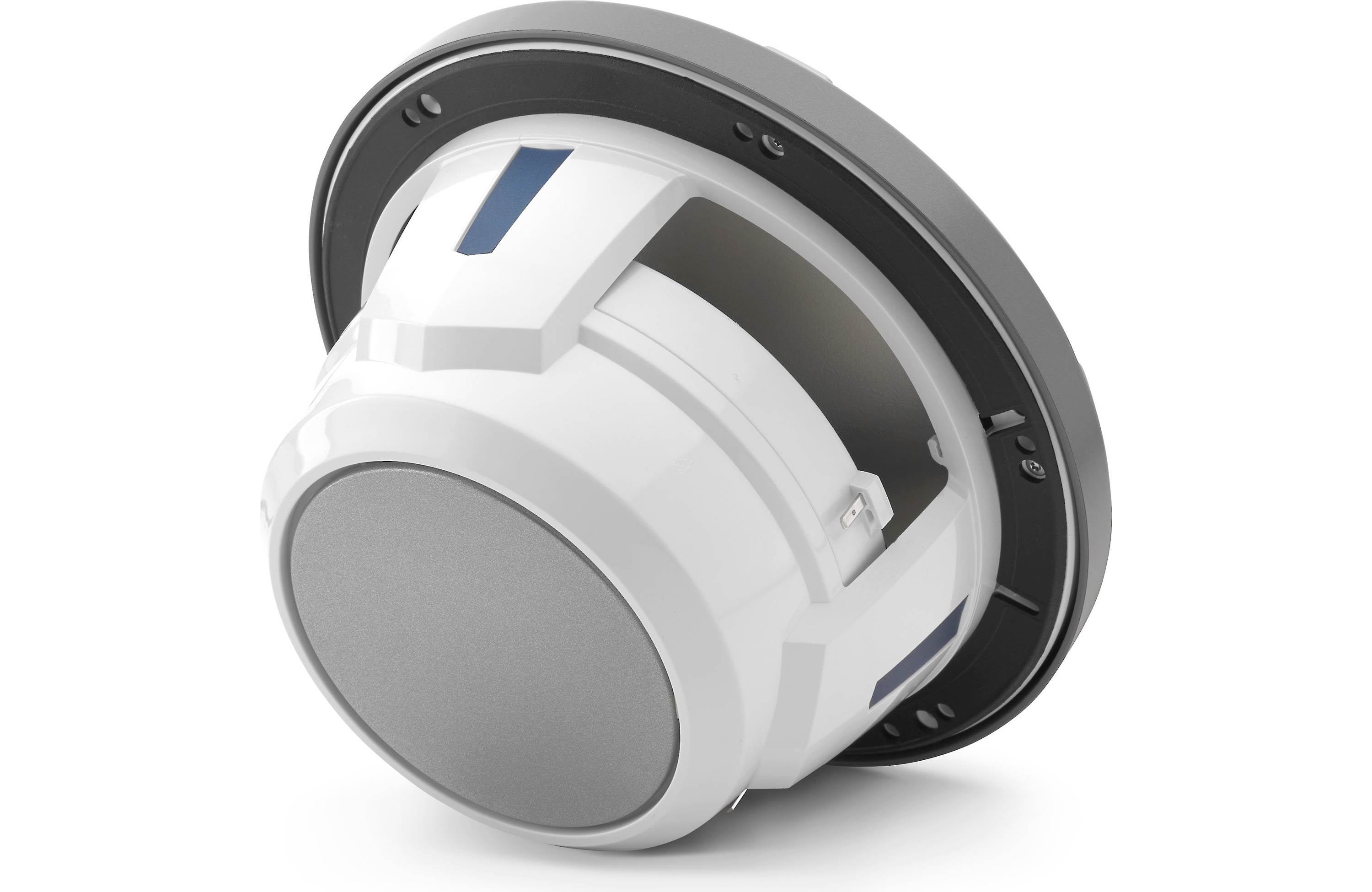

M6 7.7-inch Marine Coaxial Speakers for Infinite-Baffle Use (100 W, 4 Ω) - Gunmetal Trim Ring, Titanium Sport Grille
Purpose-engineered and built for real marine duty, M6 coaxial systems deliver maximum audio performance in any open-air boating environment.
The oversized 7.7-inch design of the M6-770X coaxial results in increased efficiency (more output for a given amount of power). Combine that advantage with long excursion and excellent power handling and you have a speaker system truly capable of playing loud and clear in a powerboat at speed.
A 1-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels.
A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.
Although M6-770X Coaxial Systems can be used with as little as 40 W per channel, for best audio performance we recommend amplifiers capable of between 40-200 W of continuous power per channel.
Sold as a pair.
|Continuous Power Handling (RMS)||100 W|
|Recommended Amplifier Power (RMS)||40 - 200 W / Ch.|
|System Efficiency||91.0 dB @ 1 W / 1 m|
|System Nominal Impedance||4 Ω|
|System Frequency Response||45 Hz - 25 KHz ± 3 dB|
|Frame Outer Diameter (A)||7.70 in / 196 mm|
|Bolt Hole Circle Diameter (B)||6.92 in / 176 mm|
|Frontal Grille Protrusion* (C)||1.08 in. / 27 mm|
|Mounting Hole Diameter (D)||6.25 in / 159 mm|
|Mounting Depth (E)||3.32 in. / 84 mm|
|*Frontal grille protrusion measured from mounting surface|
