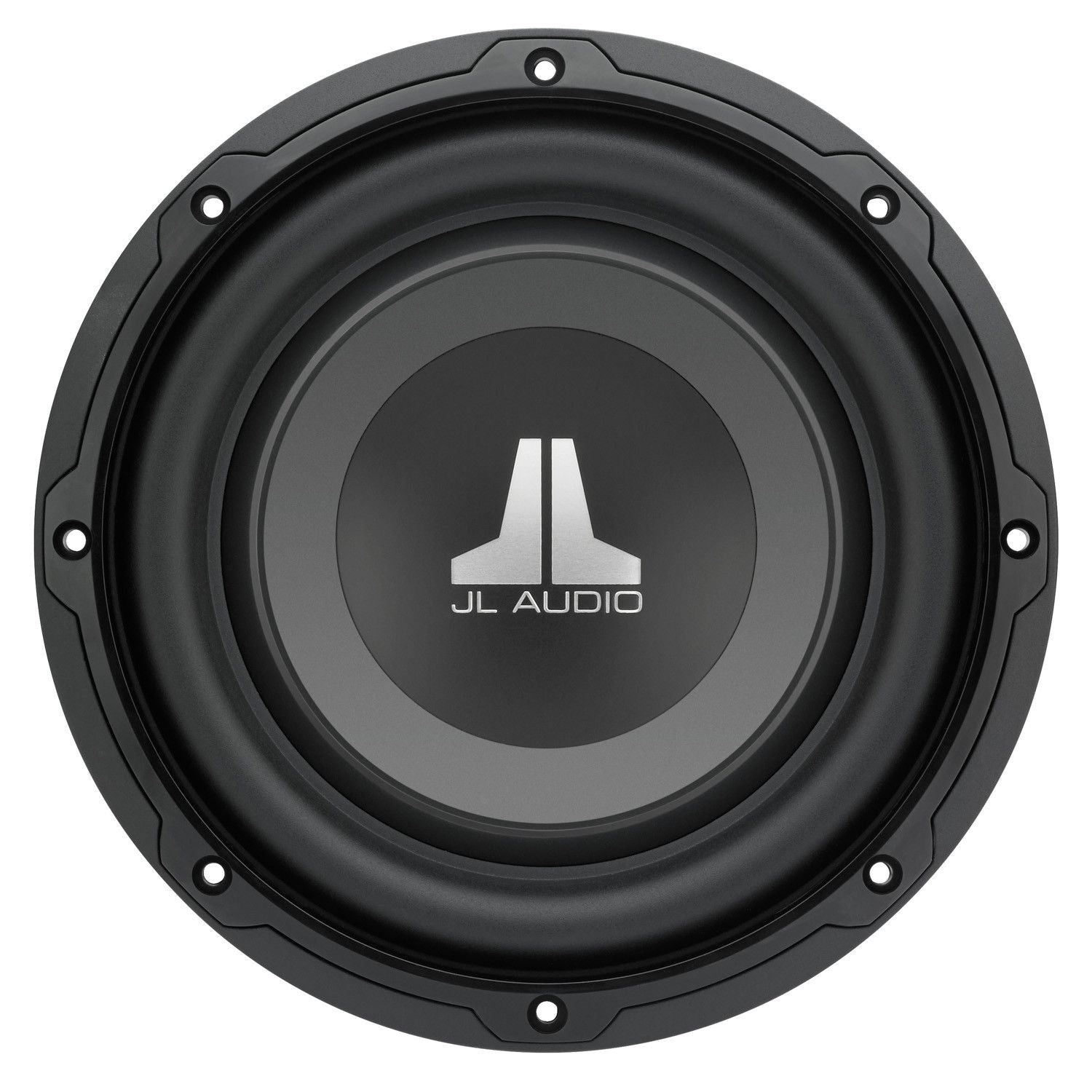

  • JL AUDIO 8W1v3-4 - 8-inch (200 mm) Subwoofer Driver, 4 Ω - Freeman's Car Stereo

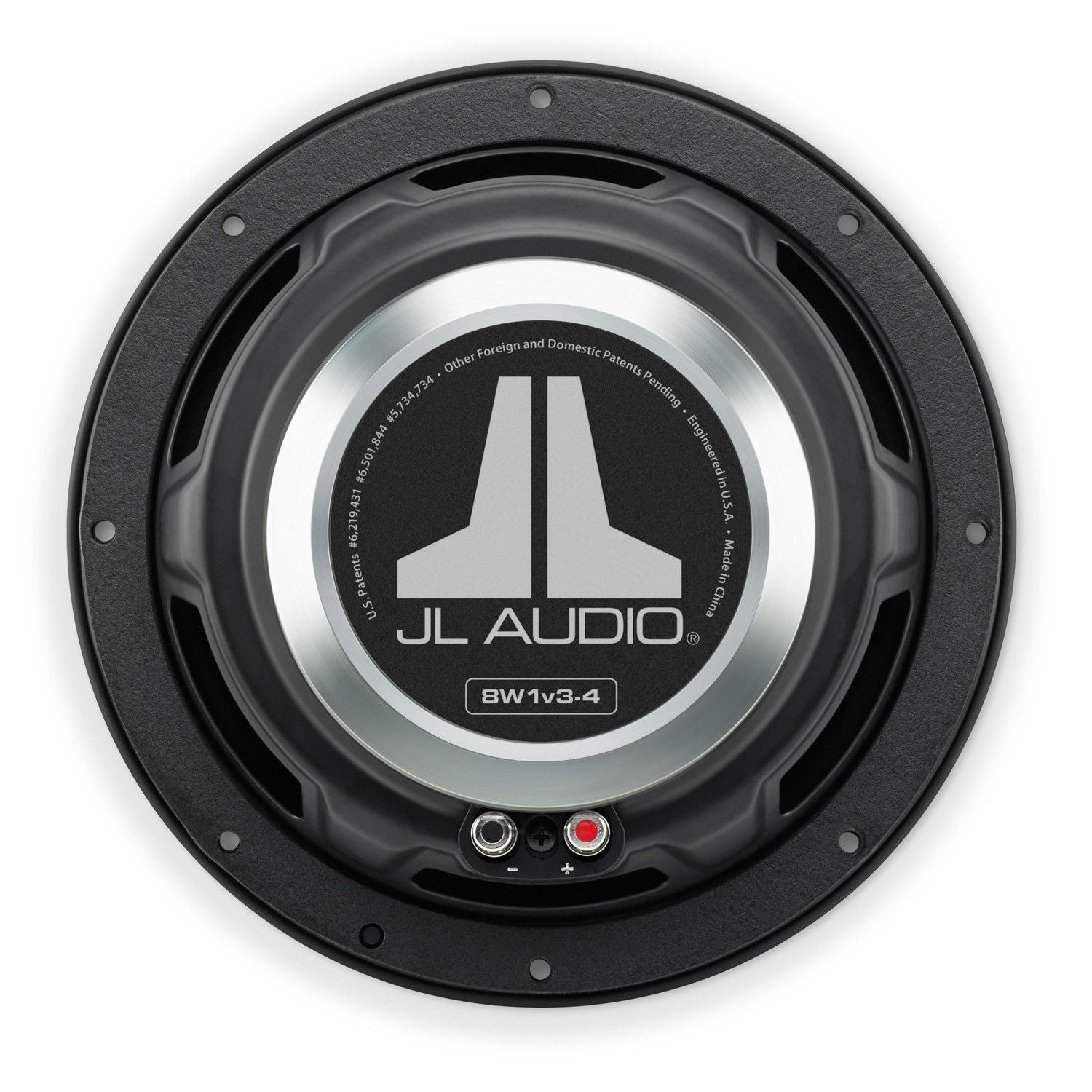

  • JL AUDIO 8W1v3-4 - 8-inch (200 mm) Subwoofer Driver, 4 Ω - Freeman's Car Stereo

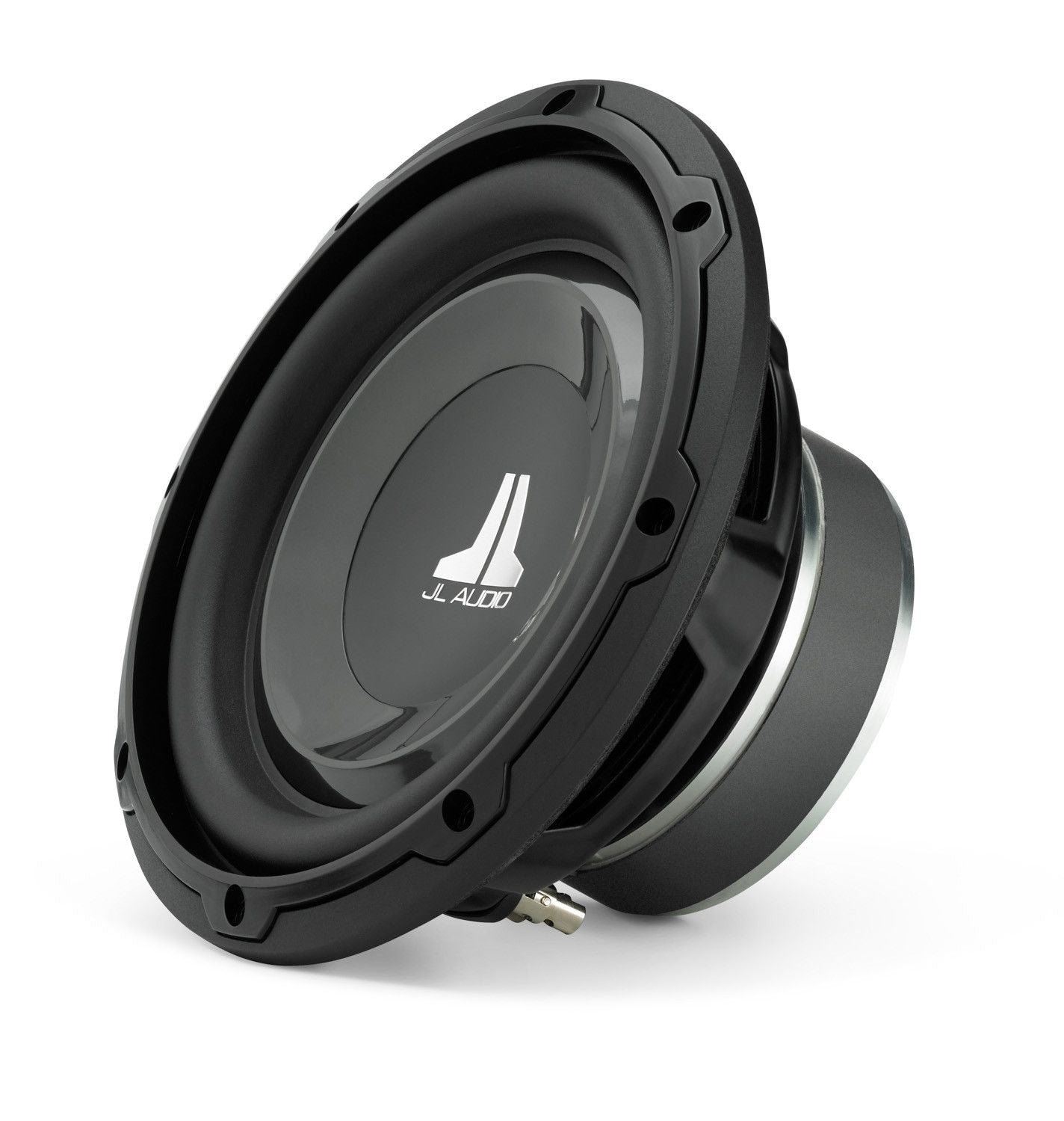

  • JL AUDIO 8W1v3-4 - 8-inch (200 mm) Subwoofer Driver, 4 Ω - Freeman's Car Stereo

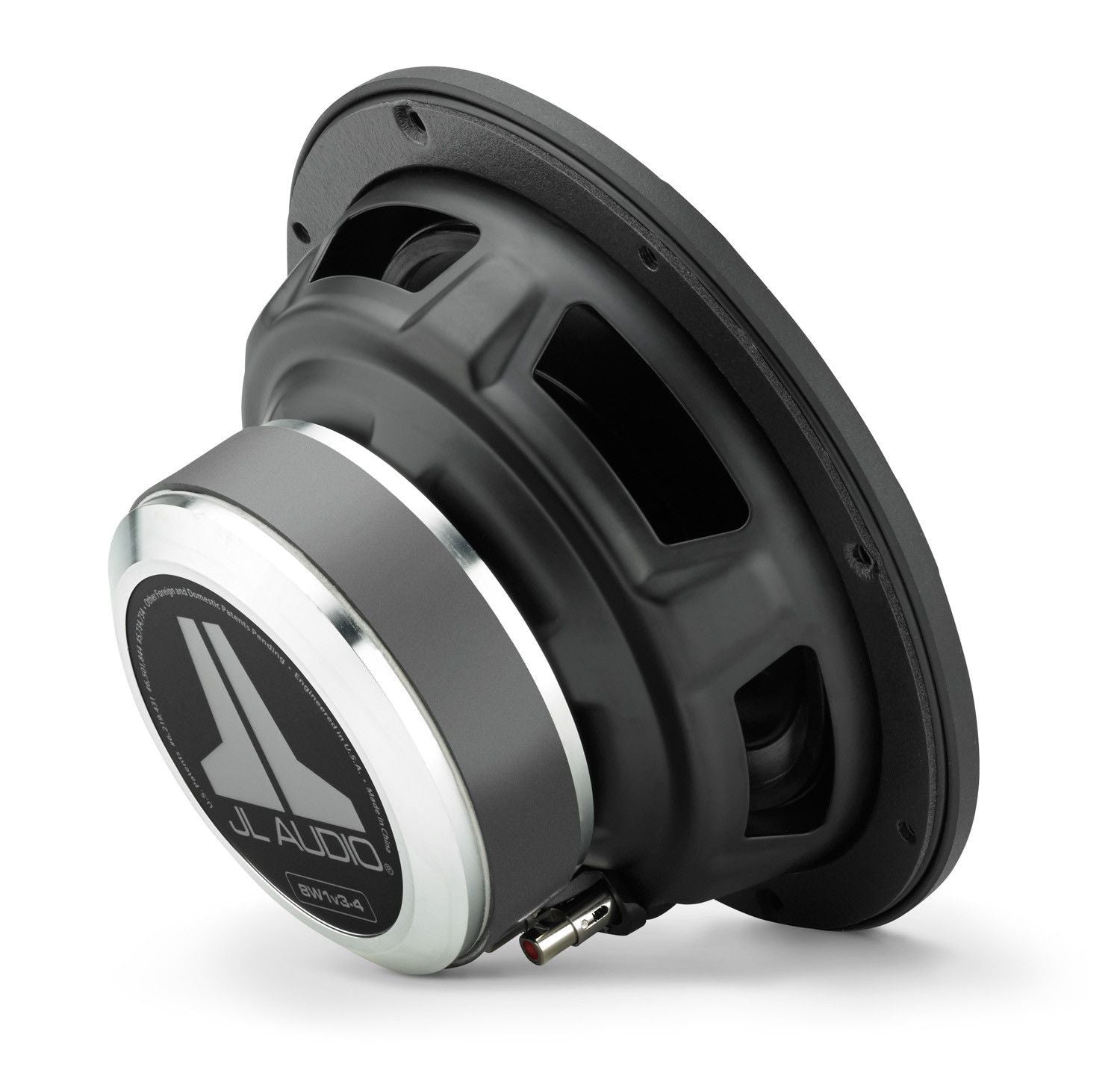

  • JL AUDIO 8W1v3-4 - 8-inch (200 mm) Subwoofer Driver, 4 Ω - Freeman's Car Stereo

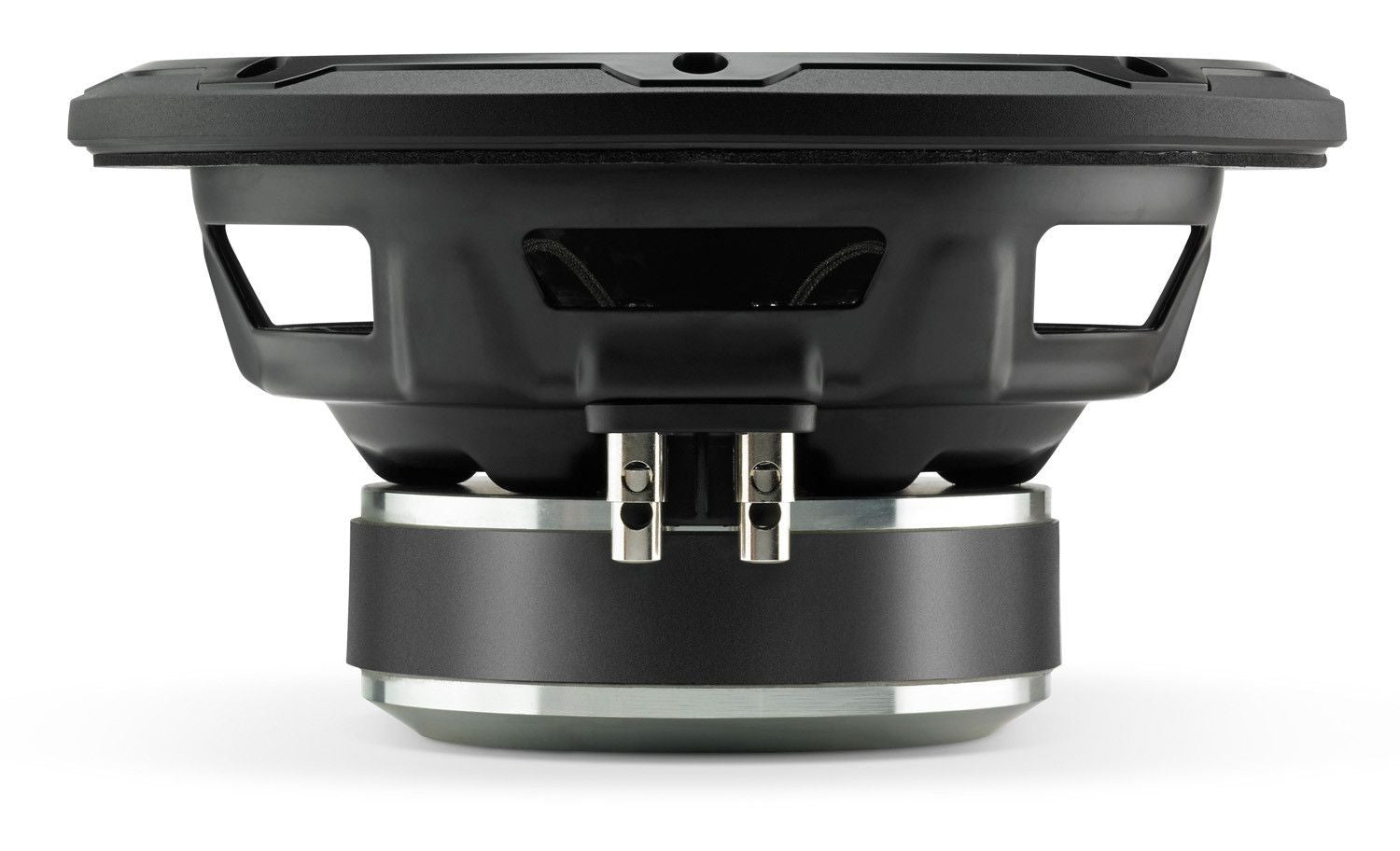

  • JL AUDIO 8W1v3-4 - 8-inch (200 mm) Subwoofer Driver, 4 Ω - Freeman's Car Stereo

JL AUDIO

JL AUDIO 8W1v3-4 - 8-inch (200 mm) Subwoofer Driver, 4 Ω

$129.99

Details

8-inch (200 mm) Subwoofer Driver, 4 Ω

The 8W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (3.86 in. / 98 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 8-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.

The 8W1v3-2 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a compact 0.350 cu. ft. (9.90 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

General Specifications

Table_Image
Continuous Power Handling (RMS) 150 W
Recommended Amplifier Power (RMS) 50 - 150 W
Nominal Impedance (Znom) 4 Ω

Physical Specifications

Table_Image
Nominal Diameter 8.0 in / 200 mm
Overall Diameter (A) 8.5 in / 216 mm
Mounting Hole Diameter (B) 7.09 in / 180 mm
Bolt Hole Circle Diameter (C) 7.85 in / 199 mm
Motor Outer Diameter (D) 4.72 in / 120 mm
Mounting Depth (E) 3.86 in / 98 mm
Driver Displacement 0.018 cu ft / 0.51 L
Net Weight 7.4 lb / 3.4 kg

Parameters

Free Air Resonance (Fs) 35.40 Hz
Electrical “Q” (Qes) 0.451
Mechanical “Q” (Qms) 5.791
Total Speaker “Q” (Qts) 0.418
Equivalent Compliance (Vas) 0.68 cu ft / 19.26 L
One-Way Linear Excursion (Xmax)* 0.3 in / 8 mm
Reference Efficiency (no) 0.18%
Efficiency (1 W / 1 m)** 84.8 dB SPL
Effective Piston Area (Sd) 32.67 sq in / 0.0211 sq m
DC Resistance (Re) 4.06 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Sealed Enclosure Specifications

Table_Image
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 0.350 cu ft / 9.90 L
External Width (W) 12 in / 305 mm
External Height (H) 10 in / 254 mm
External Depth (D) 8.625 in / 219 mm
F3 59.9 Hz
Fc 60.7 Hz
Qtc 0.717



Ported Enclosure Specifications

Table_Image
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 0.50 cu ft / 14.2 L
External Width (W) 13.0 in / 330 mm
External Height (H) 10 in / 254 mm
External Depth (D) 11.125 in / 283 mm
Internal Port Diameter (ID) 2 in / 51 mm
Port Length (L) 10 in / 254 mm
Tuning Frequency (Fb) 38 Hz
F3 39.10 Hz
