JL AUDIO

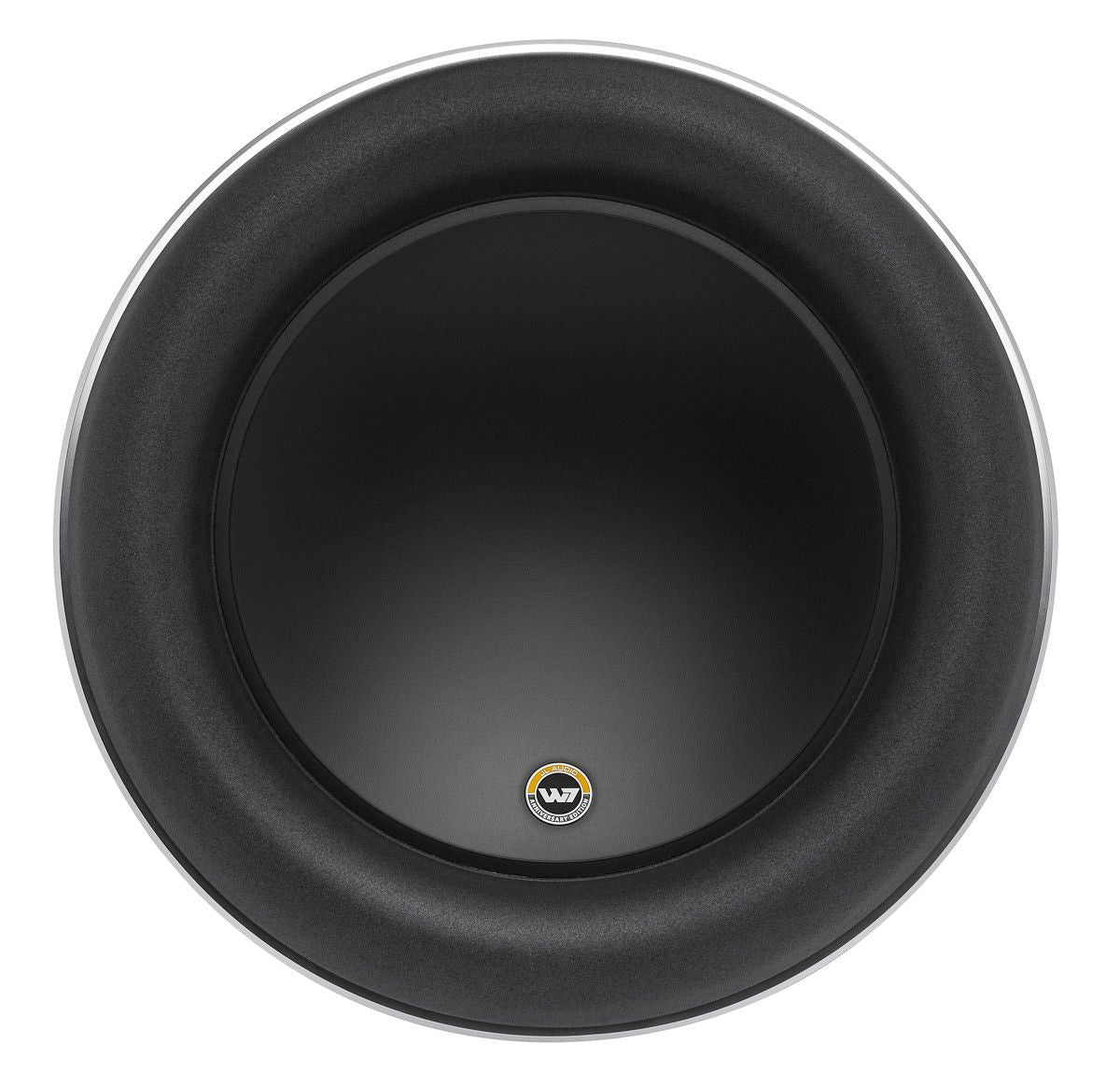

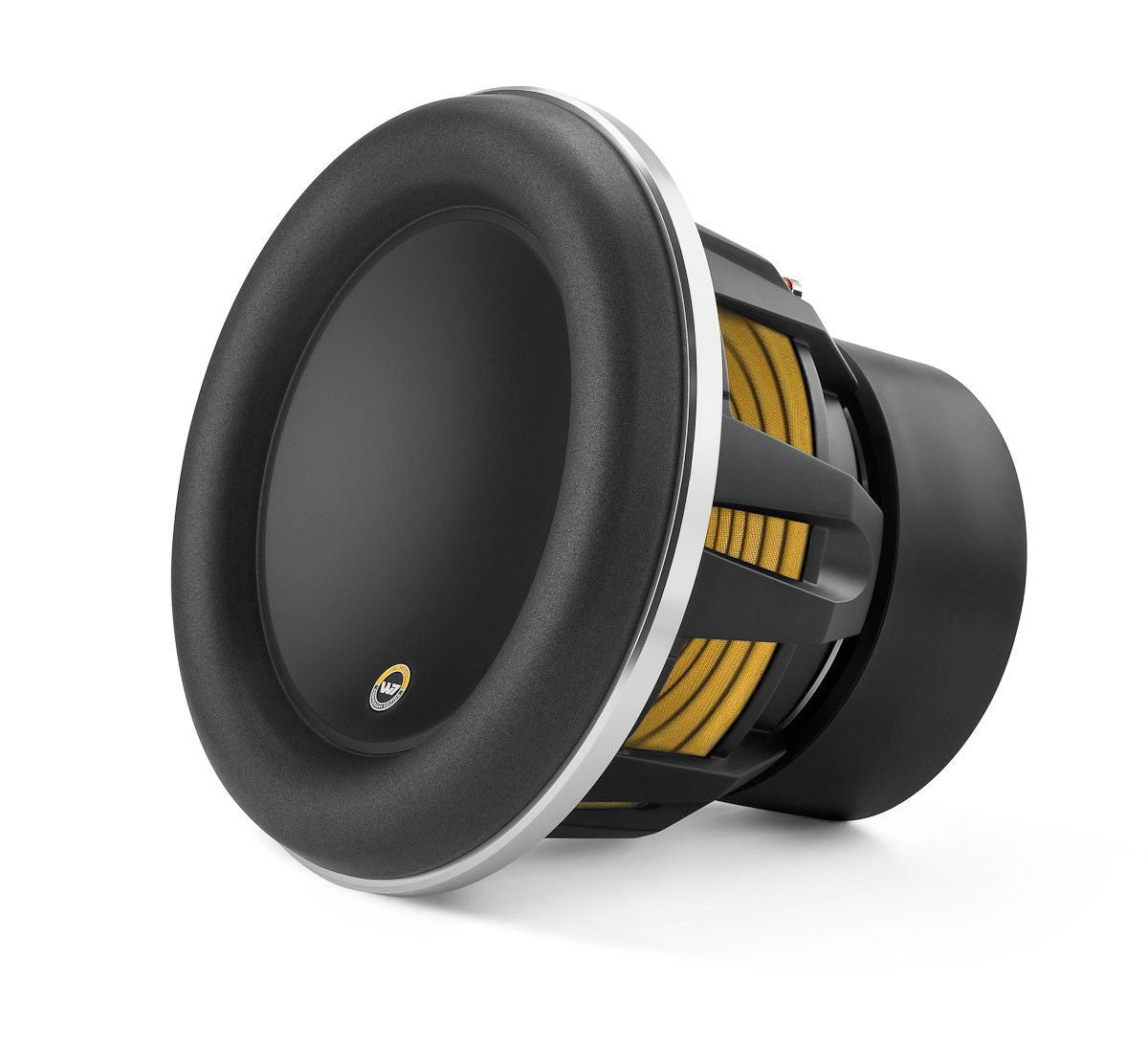

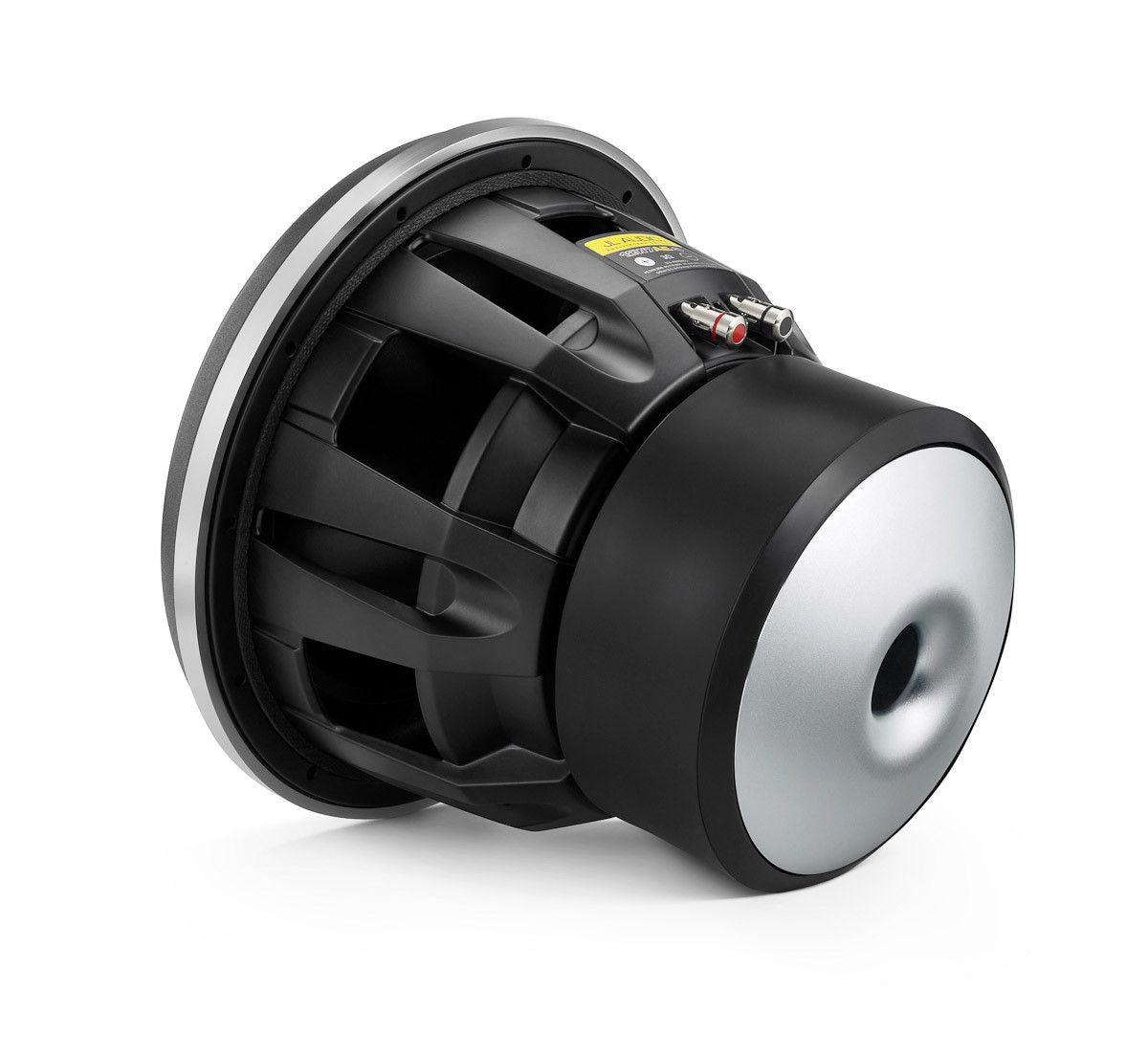

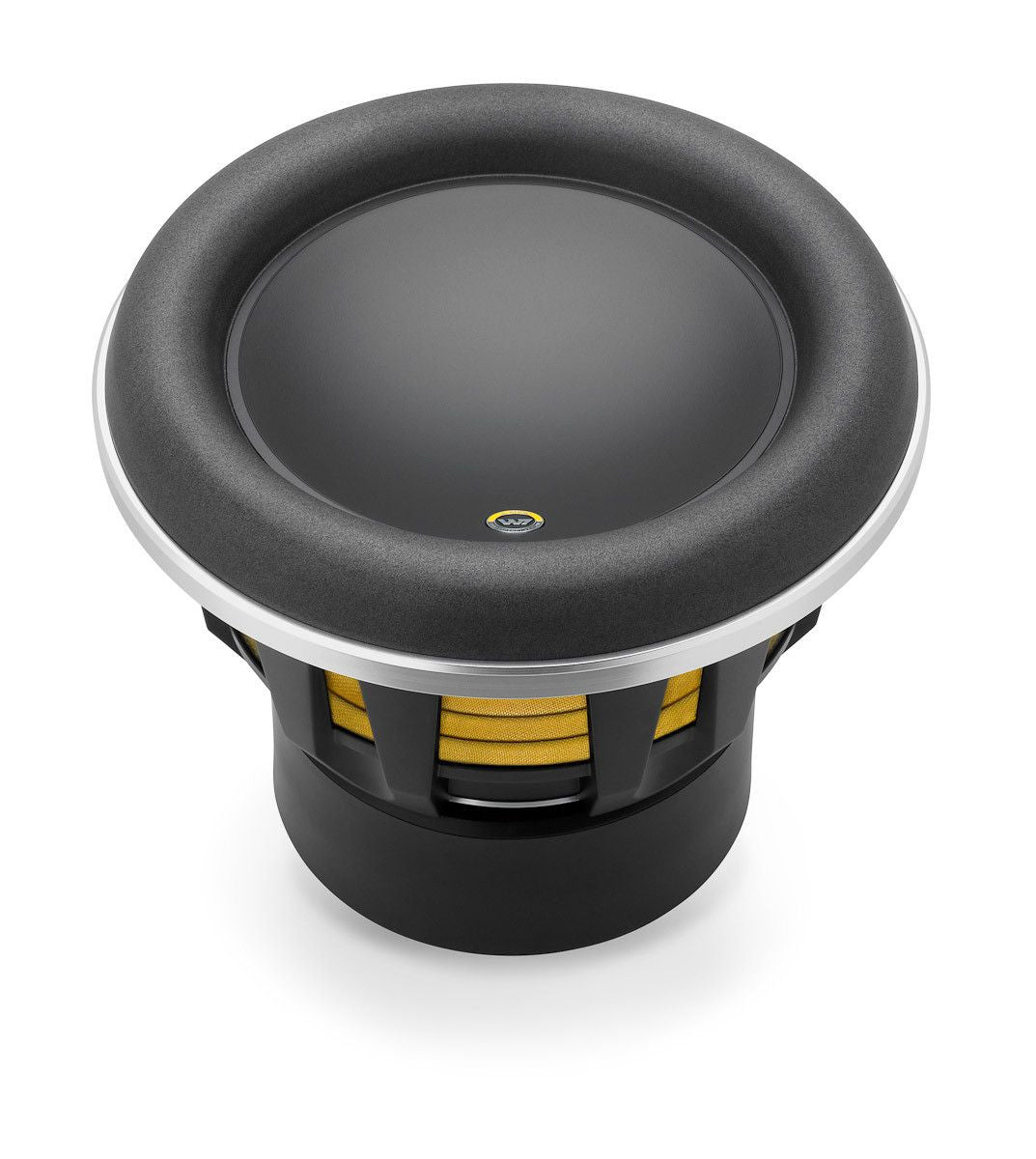

JL AUDIO 12W7AE-3 - 12-inch (300 mm) Subwoofer Driver, 3 Ω

$899.99

Details

10th Anniversary Edition - W7 12-inch Subwoofer Driver (1000 W, 3 Ω)

The 12W7AE brings serious performance to the table by combining the breakthrough of the long-excursion W7 design with a large 12-inch bore. It has been called "addictive," "seductive" and "the new subwoofer reference", by some of the world's toughest reviewers, and has earned these accolades by delivering nearly limitless dynamics, exceptional balance and world-class sound quality.

This potent driver is best used with amplifier power in the 400W - 1000W range and is optimized to operate in a 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:

  • Satin-Black Powdercoated Baskets
  • Bright Anodized Surround Clamp Ring
  • Anniversary Edition Cone Badge

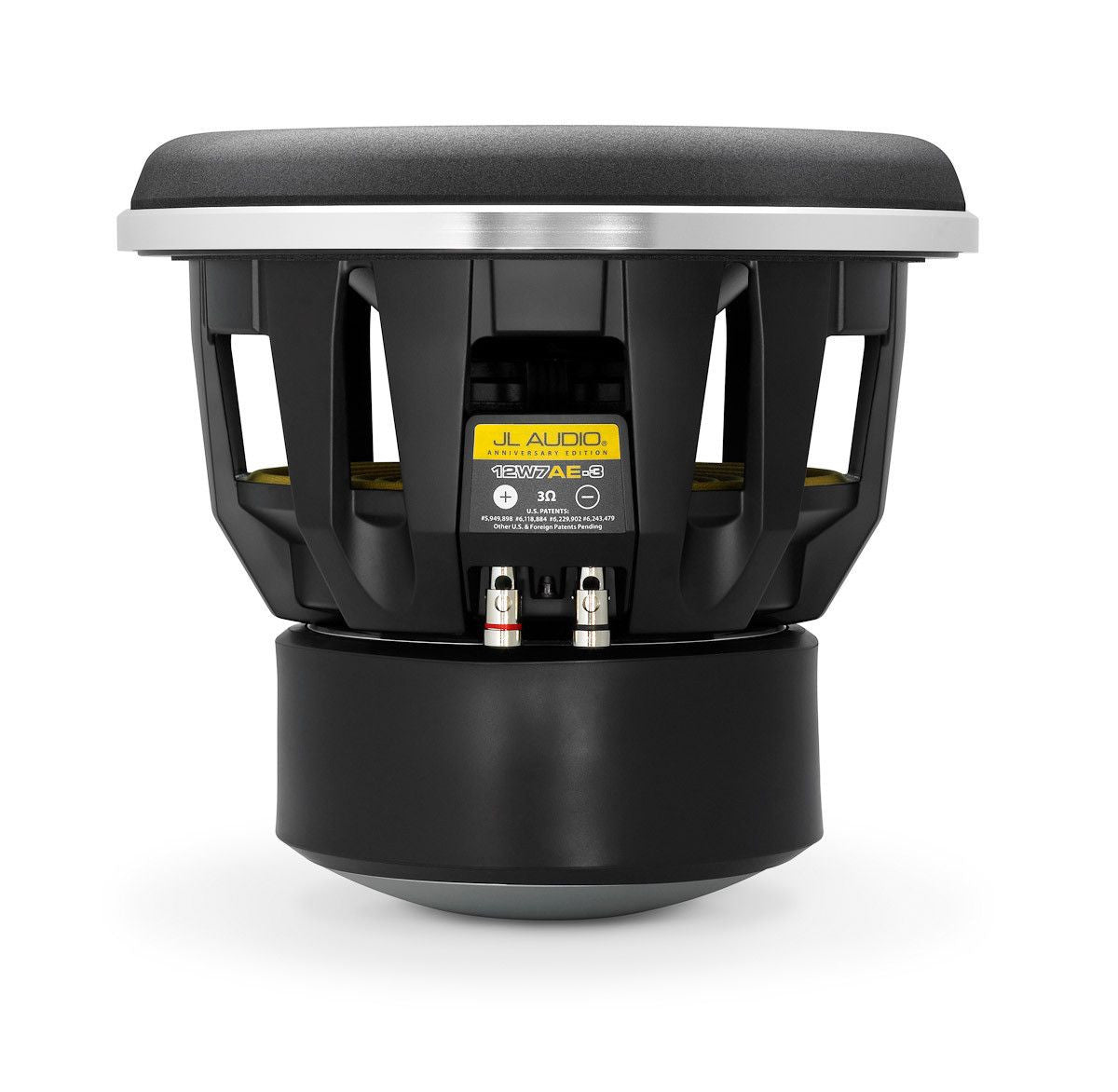

  • Anniversary Edition Terminal Label

General Specifications

Table_Image
Continuous Power Handling (RMS) 1000 W
Recommended Amplifier Power (RMS) 400 - 1000 W
Nominal Impedance (Znom) 3 Ω

Physical Specifications

Table_Image
Nominal Diameter 12.0 in / 300 mm
Overall Diameter (A) 12.5 in / 318 mm
Mounting Hole Diameter (B) 10.5 in / 267 mm
Bolt Hole Circle Diameter (C) 11.27 in / 286 mm
Motor Outer Diameter (D) 7.5 in / 191 mm
Mounting Depth (E) 9.5 in / 241 mm
Driver Displacement 0.14 cu ft / 4.0 L
Net Weight 45 lb / 20.4 kg

Parameters

Free Air Resonance (Fs) 27.2 Hz
Electrical “Q” (Qes) 0.514
Mechanical “Q” (Qms) 7.807
Total Speaker “Q” (Qts) 0.482
Equivalent Compliance (Vas) 2.33 cu ft / 66.0 L
One-Way Linear Excursion (Xmax)* 1.15 in / 29 mm
Reference Efficiency (no) 0.25%
Efficiency (1 W / 1 m)** 86.2 dB SPL
Effective Piston Area (Sd) 84 sq in / 0.0542 sq m
DC Resistance (Re) 2.47 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Sealed Enclosure Specifications

Table_Image
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 1.0 in / 25 mm
Volume (net int.) 1.375 cu ft / 38.94 L
External Width (W) 15 in / 381 mm
External Height (H) 15 in / 381 mm
External Depth (D) 16.125 in / 410 mm
F3 40.4 Hz
Fc 44.7 Hz
Qtc 0.791



Ported Enclosure Specifications

Table_Image
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 1.0 in / 25 mm
Volume (net int.) 1.75 cu ft / 49.6 L
External Width (W) 22.75 in / 578 mm
External Height (H) 15 in / 381 mm
External Depth (D) 15.875 in / 403 mm
Internal Slot Port Width (SW) 1.875 in / 48 mm
Internal Slot Port Height (SH) 13.5 in / 343 mm
Internal Slot Port Length (SL) 24.75 in / 629 mm
Port Extension Length (EL) 7.9375 in / 202 mm
Tuning Frequency (Fb) 36.7 Hz
F3 32.8 Hz
