$329.99
Availability: Out Of Stock

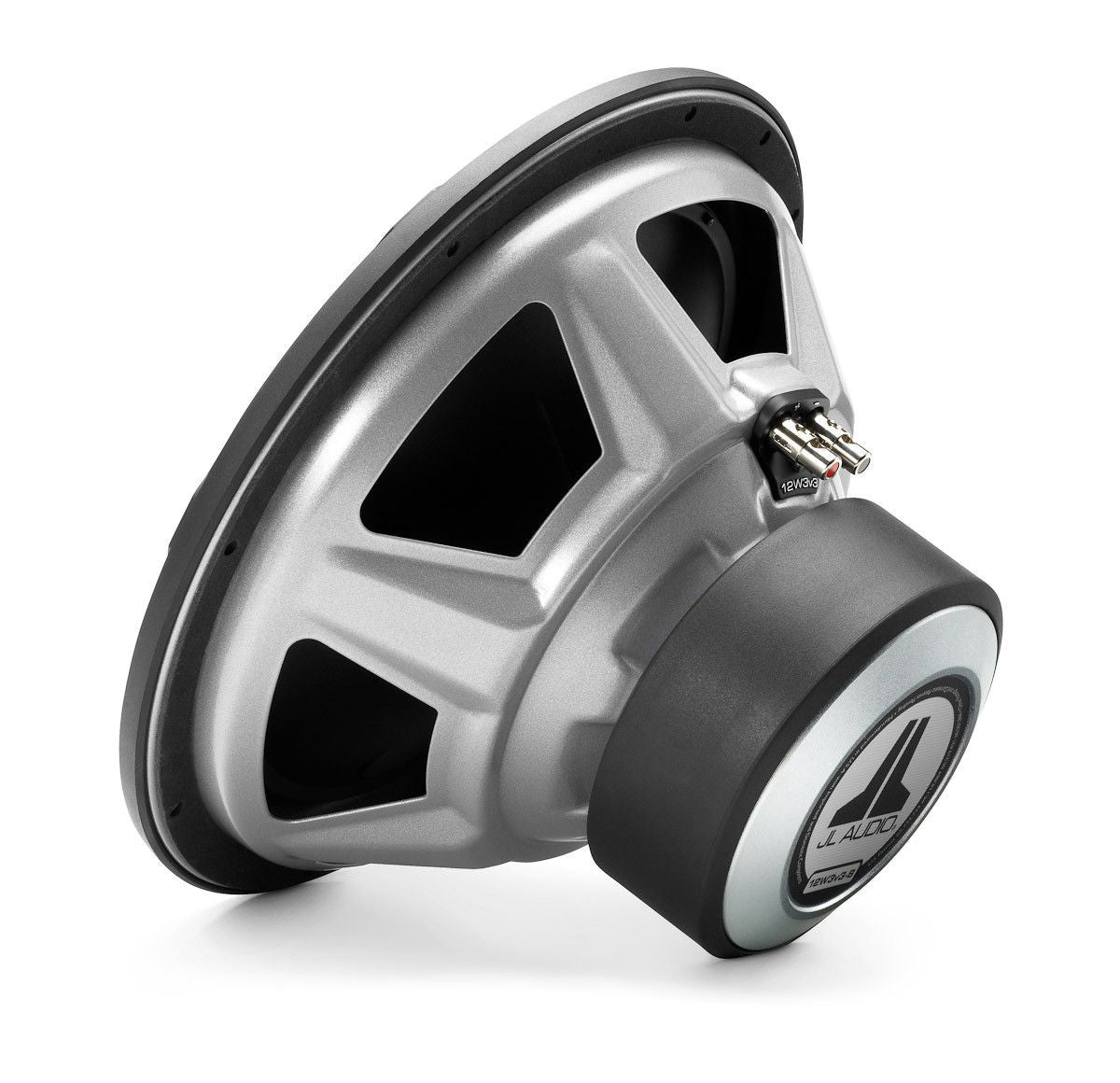

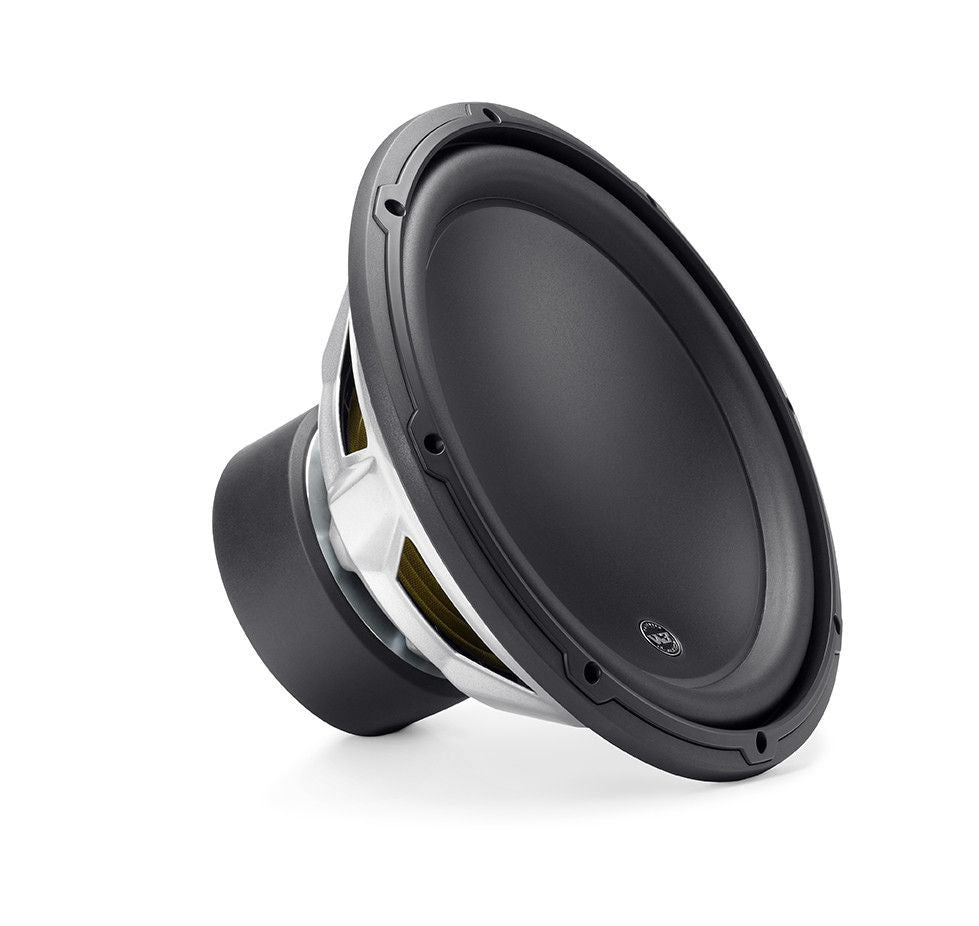

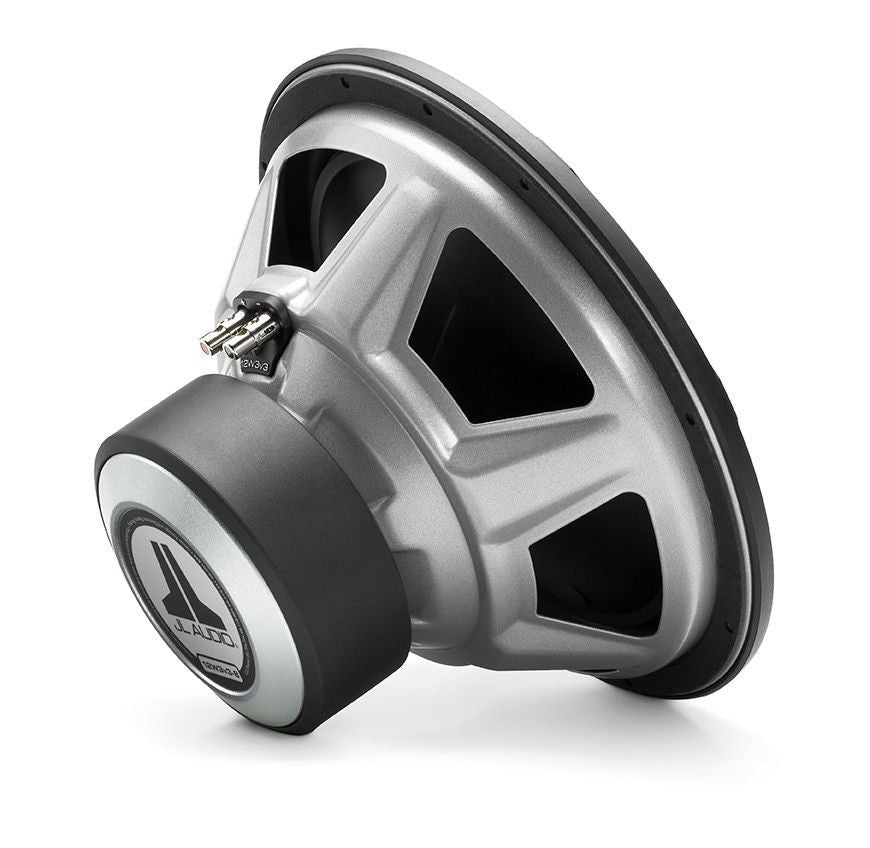

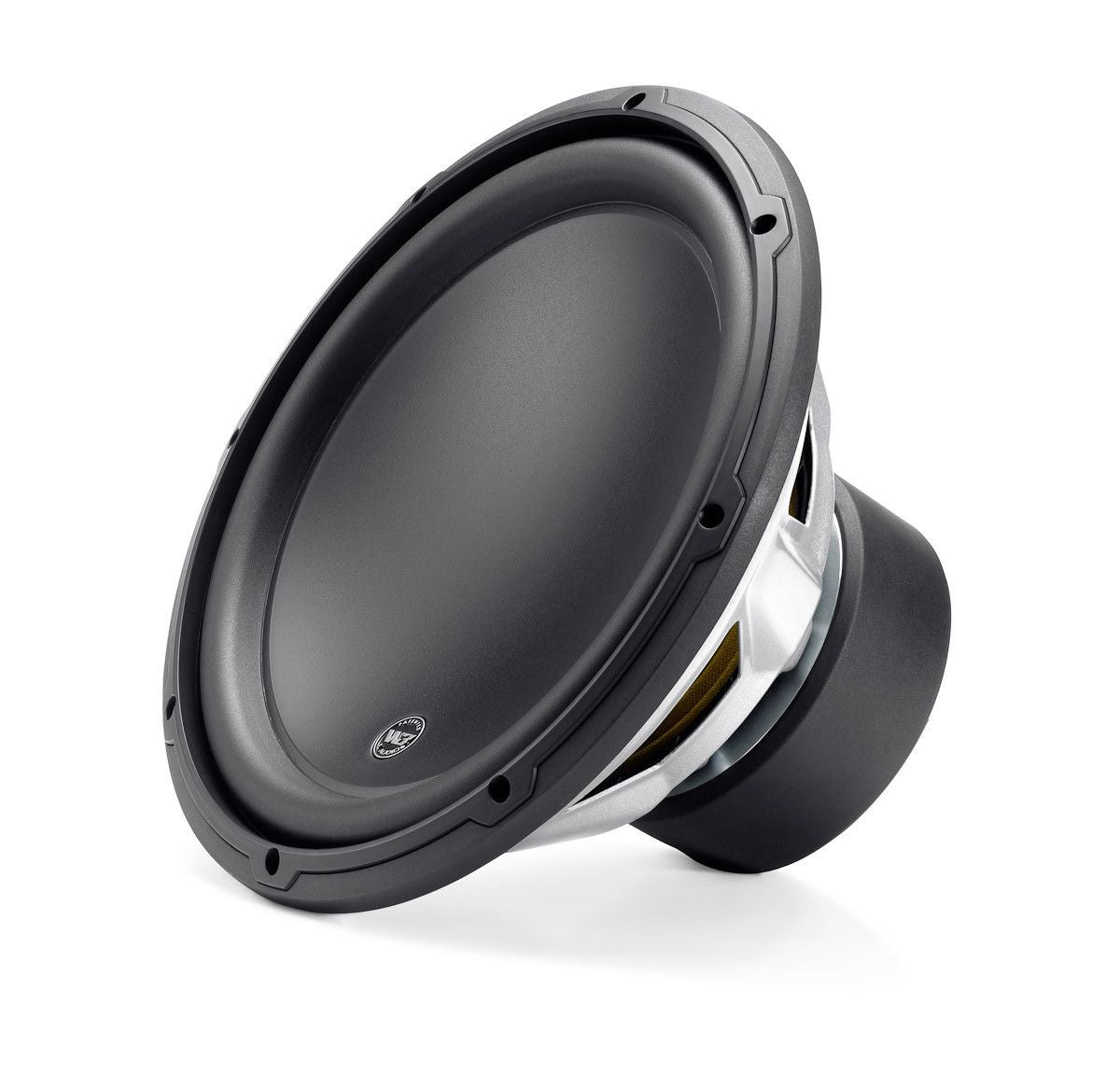

W3v3 12-inch Subwoofer Driver (500 W, 2 Ω)

This powerhouse 12-inch driver delivers potent performance and world-class sound quality in medium power applications. Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 12W3v3 to enhance linearity and reliability.

The 12W3v3-2 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a compact 1.25 cu. ft. (35.4 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

Continuous Power Handling (RMS) 500 W
Recommended Amplifier Power (RMS) 150 - 500 W
Nominal Impedance (Znom) 2 Ω
Nominal Diameter 12.0 in / 300 mm
Overall Diameter (A) 12.5 in / 318 mm
Mounting Hole Diameter (B) 11.0625 in / 281 mm
Bolt Hole Circle Diameter (C) 11.7 in / 297 mm
Motor Outer Diameter (D) 5.5 in / 140 mm
Mounting Depth (E) 6.65 in / 169 mm
Driver Displacement 0.071 cu ft / 2.01 L
Net Weight 14.50 lb / 6.58 kg
Free Air Resonance (Fs) 27.97 Hz
Electrical “Q” (Qes) 0.534
Mechanical “Q” (Qms) 7.678
Total Speaker “Q” (Qts) 0.5
Equivalent Compliance (Vas) 2.806 cu ft / 79.47 L
One-Way Linear Excursion (Xmax)* 0.510 in / 13.0 mm
Reference Efficiency (no) 0.31%
Efficiency (1 W / 1 m)** 87.15 dB SPL
Effective Piston Area (Sd) 80.600 sq in / 0.0520 sq m
DC Resistance (Re) 1.658 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 1.250 cu ft / 35.4 L
External Width (W) 23 in / 584 mm
External Height (H) 14 in / 356 mm
External Depth (D) 10 in / 254 mm
F3 41.8 Hz
Fc 50.4 Hz
Qtc 0.96
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 1.75 cu ft / 49.6 L
External Width (W) 29 in / 737 mm
External Height (H) 14 in / 356 mm
External Depth (D) 12.625 in / 321 mm
Internal Slot Port Width (SW) 1.375 in / 35 mm
Internal Slot Port Height (SH) 12.5 in / 318 mm
Internal Slot Port Length (SL) 26.8125 in / 681 mm
Port Extension Length (EL) 13.5 in / 343 mm
Tuning Frequency (Fb) 30 Hz
F3 36 Hz
