Description
Highlights
Enjoy up to 5.1.2-channel object-based surround sound with your favorite speaker system and the Denon AVR-X2700H 7.2-Channel Network A/V Receiver. It supports the Dolby Atmos and DTS:X object-based audio formats and has Bluetooth, Wi-Fi, HEOS, and Apple AirPlay 2 built-in for wirelessly connecting with your compatible smart devices. Additionally, the onboard network connectivity allows the receiver to be voice-controlled through your Amazon Alexa, Google Assistant, Siri, or Josh.ai ecosystem, or via the HEOS app.
The AVR-X2700H outputs up to 95W per channel at 8 ohms and features Audyssey MultEQ XT sound optimization to tailor the sound to your specific room. Six HDMI inputs and two outputs are onboard; one input and both outputs support 8K UHD video, and they all support 8K upscaling, HDR, and 4:4:4 color, with the main output supporting eARC. A USB port on the front provides direct device connectivity and audio playback.
Features
8K UHD Pass-Through
The AVR-X2700H supports 8K / 60 Hz pass-through and upscaling, 4K / 120 Hz pass-through, and HDCP 2.3, allowing you to enjoy 4K and 8K content with compatible displays.
7-Channel Discrete Amplifier
Featuring discrete high-current amplifiers on all channels, the AVR-X2700H is rated up to 95 watts per channel at 8 ohms for a dynamic, precise sound experience.
3D Audio Support
Enjoy immersive 3D audio from formats like Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X, and DTS Virtual:X for a 3D soundstage. Dolby Atmos uses dedicated up-firing or overhead speakers to provide height sound effects at up to 5.1.2 channels, while DTS:X and DTS Neural:X use your existing speaker setup to create virtual height channels from more traditional 7.1-, 5.1-, or 2.1-channel arrangements.
8K HDMI with eARC
The main HDMI output supports eARC (enhanced Audio Return Channel) to enable uncompressed and object-based audio transmission directly from your TV to the receiver. A dedicated 8K input supports 8K UHD/60 Hz and 4K UHD/120 Hz video pass-through and upscaling. All HDMI inputs support 4:4:4 Pure Color sub-sampling, Dolby Vision, HDR10, HDR10+, HLG, various dynamic HDR formats, and BT.2020 pass-through for augmented color, clarity, and contrast. 8K upscaling and HDCP 2.3 compatibility are available on all HDMI inputs. HDCP 2.3 processing lets you enjoy copy-protected content uninhibited. QMS (Quick Media Switching) is also supported.
Modern Gaming Support
In addition to 4K/120 Hz pass-through, the AVR-X2700H supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM) for reduced lag and frame tearing to provide a smooth gaming experience.
Works with Various Voice Assistants
Control the receiver hands-free with your Amazon Alexa, Google Assistant, Apple Siri, or Josh.ai ecosystem. Adjust the volume, skip to the next track, switch inputs between your different connected media players, and more. Availability varies by region and country.
Built-In Bluetooth, Wi-Fi, AirPlay 2 HEOS Compatibility
With a dual-antenna transceiver system, you can enjoy robust Bluetooth and dual-band Wi-Fi streaming, even in congested urban environments. Listen to your favorite audio content wirelessly from your compatible smart devices. With HEOS Built-in technology, you can play the same song in every room or a different song in each connected room. AirPlay 2 lets you enjoy all your favorite songs from Apple Music.
All-Zone TV Audio
Play the audio from your TV to both your zones. Enjoy full discrete audio like Dolby Atmos in the main zone for an immersive experience while playing the same source in the second zone. HDMI and other digital sources are supported for the second zone.
High-Resolution Audio Support
The onboard AKM 32-bit D/A converters feature high-resolution audio decoding for multiple lossless file types, including ALAD, FLAC, and WAV at up to 192 kHz/24-bit. It also supports 2.8/5.6 MHz DSD files, the audio coding format of SACD. Play them from memory devices via the front panel USB or over network sources. Other file types like MP3 and WMA are also supported.
Bluetooth Audio Transmission
Transmit the receiver's audio to your Bluetooth headphones to enjoy your media without disturbing anyone else in the house. You can also play the audio on both your Bluetooth headphones and connected speakers simultaneously if you or a family member or guest are hearing impaired.
Customized Sound by Audyssey MultEQ XT
Every room has its own characteristics and acoustical anomalies, so the AVR-X2700H is equipped with Audyssey MultEQ XT to compensate for them. With the included microphone, it analyzes the output of each speaker to optimize every channel. The optional Audyssey MultEQ Editor app, available for purchase on iOS and Android, allows advanced users to further adjust and customize their audio environment.
Custom Install Ready with Remote Monitoring Capability
The AVR-X2700H features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions, including Control4 SDDP (Simple Device Detection Protocol) certification for seamless integration with compatible equipment. To allow custom integrators to monitor the status of connected products and remotely troubleshoot issues, Domotz Pro and OvrC remote system monitoring and management technology is onboard, reducing the time for installers to correct a problem.
Specifications
Channels | 7.2 |
Power Output per Channel | 2-Channel Driven: 95 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD 125 W at 6 Ohms / 1 kHz / 0.07% THD 1-Channel Driven: 150 W at 6 Ohms / 1 kHz / 1% THD 185 W at 6 Ohms / 1 kHz / 10% THD |
Frequency Response | 10 Hz to 100 kHz +1/-3 dB (Direct Mode) |
Speaker Impedance | 4 to 16 Ohms |
DTS Compatibility | DTS:X |
Dolby Compatibility | Dolby Atmos |
Auro 3D Support | No |
Upmixing Technology | DTS Virtual:X, Dolby Atmos Height Virtualization Technology |
Supported File Formats | 2.8 MHz DSD, 5.6 MHz DSD, ALAC, FLAC, MP3, WAV, WMA via USB/Network |
HDR Compatibility | HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
Pass-Through Support | 8K60p |
Upscaling | 8K |

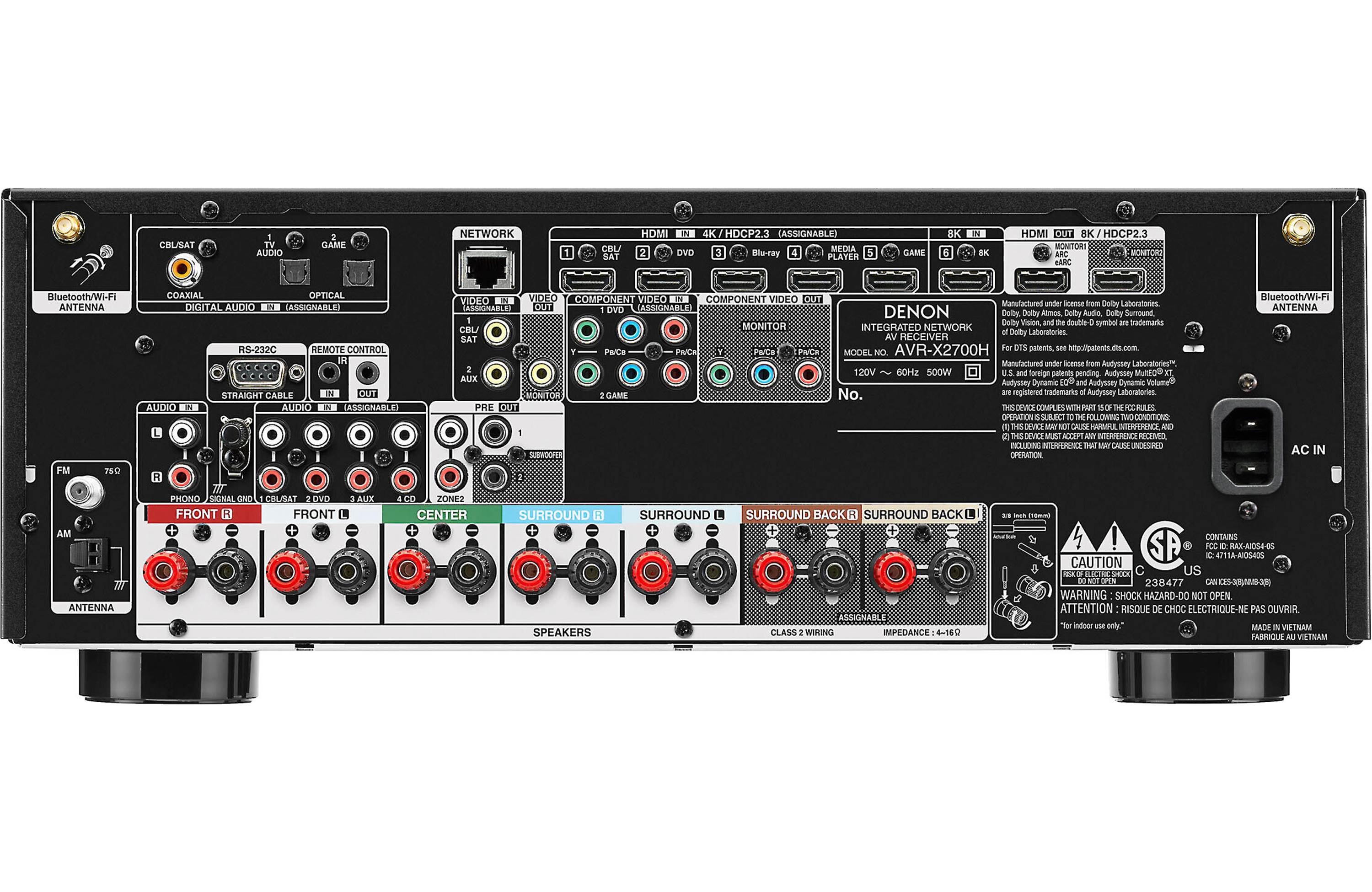

Rear A/V Inputs | 6 x HDMI 2 x 3RCA Component 2 x RCA Composite 2 x Optical TOSLINK 1 x Digital Coaxial 4 x Stereo RCA 1 x Stereo RCA (Phono) with Ground Screw |
Rear A/V Outputs | 2 x HDMI 1 x 3RCA Component 1 x RCA Composite 1 x Stereo RCA Zone 2 Pre-Out 2 x RCA Subwoofer Pre-Out |
Front I/O | 1 x 1/4" / 6.35 mm Headphone Output 1 x 1/8" / 3.5 mm Setup Mic Input 1 x USB Type-A |
Other Rear I/O | 2 x Bluetooth/Wi-Fi Antenna Terminal 1 x RJ45 (Ethernet) 1 x AM Antenna Terminal Input 1 x FM Antenna Terminal Input 1 x DE-9 (RS-232C) 1 x 1/8" / 3.5 mm (IR) Input 1 x 1/8" / 3.5 mm (IR) Output |
Speaker Connectors | 7 x Binding Post Pairs |
HDCP Support | Version 2.3 |
Audio Return Channel (ARC) | Yes, eARC |
HDMI CEC | Yes |
Input Impedance | 47 Kilohms |
Input Sensitivity | 200 mV |
Signal to Noise Ratio | 100 dB (Direct Mode / IHF-A) |
Wireless Audio Protocols | AirPlay 2, HEOS |
External Control Support | Control4, Domotz Pro, OvrC |
Virtual Assistant Support | Amazon Alexa, Apple Siri, Google Assistant, Josh.ai |
Tuner Type | AM, FM |
Radio Frequencies | AM: 520 to 1710 kHz FM: 87.5 to 107.9 MHz |
AC Input Power | 120 VAC, 60 Hz |
Power Consumption | Active: 500 W Standby: 0.1 W CEC Standby: 0.5 W No Sound (ECO On): 35 W No Sound (ECO Off): 75 W |
Dimensions (W x H x D) | 17.1 x 6.6 x 13.4" / 43.4 x 16.8 x 34.0 cm (Antenna Down) 17.1 x 9.3 x 13.4" / 43.4 x 23.6 x 34.0 cm (Antenna Up) 17.1 x 6.6 x 13.0" / 43.4 x 16.8 x 33.0 cm (Antenna Removed) |
Weight | 21 lb / 9.5 kg |
Warranty Length | Limited 3-Year Warranty |
Package Weight | 25.63 lb |
Box Dimensions (LxWxH) | 20.25 x 16.75 x 9.5" |
