$949.97
Availability: Out Of Stock
  • Digital AM/FM Tuner with RDS (Radio Data System) – Displays extended FM program info, where available
  • 18 Favorites – Store up to 18 of your favorite AM/FM stations for quick access
  • Bluetooth® v2.1 – Receive top-quality wireless audio from compatible devices with playback control, from up to 35 ft. (11 m) away
  • USB 2.0 direct digital connection for an iPhone® or USB storage device, with album cover art support and folder browsing capabilities
  • Auxiliary inputs accept audio signals from any source with line-level outputs
  • Conveniently charge your phone or media player with a 2.1 amp USB output

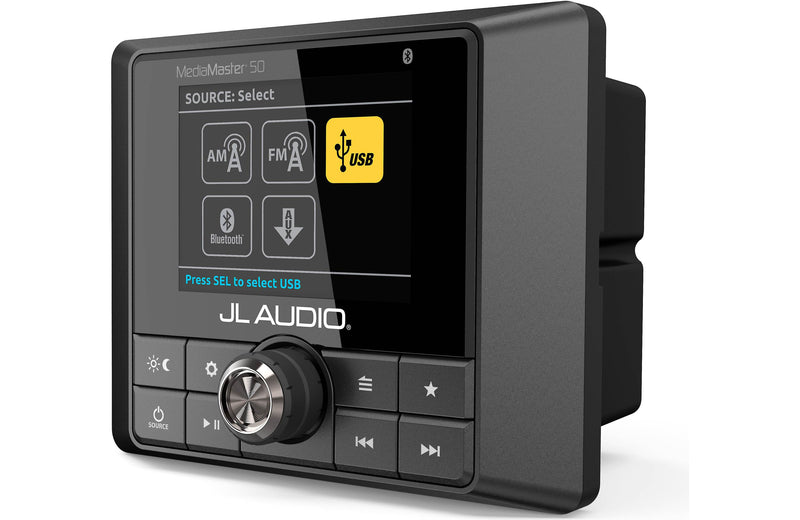

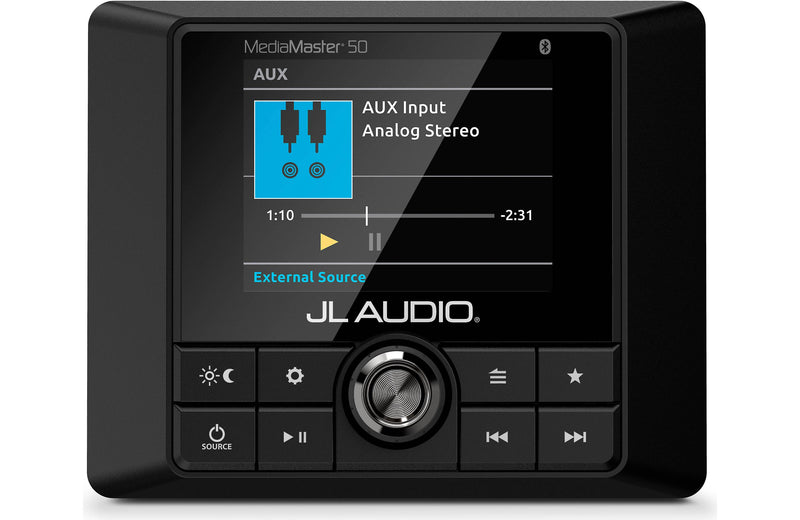

  • NMEA 2000® Certified – Equipped with a NMEA 2000® connector (Micro-C), the MM50 interfaces directly with existing vessel networks and offers control functionality via a compatible MFD (Multi-Function Display) from Garmin, Lowrance and Simrad (refer to MFD manufacturer for device compatibility info) or MMR-40 NMEA 2000® Network Controller (sold separately).
  • Remote controller connection delivers auxiliary control functionality from extended locations
  • IP66 rated for real marine duty
  • Protective Sun Cover included

Customizable Controls over three separate audio zones:

Level Control Mode delivers on-the-fly volume adjustments of all zones, together or individually. Each zone includes independent feature/control options, including:

  • Variable: The volume knob adjusts all zones simultaneously, with independent control of each zone’s relative offset level.
  • Fixed: Sets the output level of selected zones at a specific output voltage (4V, 2V or 1V RMS) that is not affected by the volume control.
  • Off: Disables the output level of selected zones.
  • Volume Limit: Allows you to set a custom, maximum, allowable volume level for each zone.
  • Rename Zone: Permits the creation of custom names for each zone, or choose from a list or preset vessel location names.
  • Name this Device: Give your MediaMaster® a custom-name to easily recognize it on paired Bluetooth® devices and connected MFDs.
  • Independently adjustable offset volume level for each zone
  • Subwoofer zone’s level and tone controls can be linked or set to proportionally track (follow) Zone 1 or 2 or disabled.

Tone Control Mode options allow customization of treble, midrange bass and balance settings as:

  • Same as Zone 1: Links the controls with Zone 1.
  • Independent Tone Control: Permits distinct tone control adjustments for the selected zone.

Versatile audio output options with onboard signal processing:

  • 6-channels of audiophile quality, 4V RMS preamp level outputs from two independent main zones, plus a dedicated subwoofer zone; all zones feature a zero-clipping audio circuit, with self-limiting tone controls to prevent speaker system damage
  • Built-in amplifier generates 100 watts of high-fidelity output (25W RMS x 4) to power two main zones
  • Both main zone output types (speaker and preamp level) include a high-pass crossover feature with selectable frequency selection (off/60/80/100/150 Hz)
  • Subwoofer zone outputs equipped with a 500 Hz low-pass crossover

Three remote controller options (each sold separately):

  • MMR-20-BE Wired Remote Controller: Connect up to three remotes for control functionality from distant vessel locations, up to 75 ft. away.
  • MMR-10W Wireless Remote Controller: Waterproof, 2.4 GHz, key-fob style remote delivers handheld control from up to 150 ft. away.
  • MMR-40 NMEA 2000® Network Controller: Full-function controller with LCD display delivers full MM50 display and control functionality via NMEA 2000® networks.

Input Operating Voltage 10 - 16 VDC
Standby Current Draw 100 mA
Operating Current Draw 15 A
Recommended Fuse Value 15 A
Remote Turn-on Capacity 500 mA (max)
Operating Temperature Range -4 F to +158 F (-20 C to +70 C)
Display Size / Type 2.8-inch / TFT LCD backlighted
Display Resolution 320 x 240
Output Channels Zones 1&2: Two stereo pairs of RCA plugs (4V RMS) Sub: One mono pair of RCA plugs (4V RMS)
Output Zones Zones 1&2: Variable, Fixed or Off Sub: 500 Hz Low-Pass only
Maximum Output Voltage 4V RMS (Variable), Selectable 4V/2V/1V RMS (Fixed)



Connectivity

 Tuner
FM Tuner with RDS 87.5 MHz to 107.9 MHz (0.2 MHz step)
AM Tuner 530 kHz to 1710 kHz (10 kHz step)
NOAA Weather Band Tuner 162.400 MHz to 162.550 MHz (0.025 MHz step)
Favorites 18 presets across all tuners
 Bluetooth®
Profile A2DP v1.2, AVRCP v1.4
Core Specification Version 2.1 + EDR
Codec SBC
Connection Range Up to 35 ft / 11 m
 USB
Interface USB 2.0 host
Maximum Current Output 2.1 A
Supported Audio Formats MP3, WAV, WMA
Apple Compatibility iPhone 5 or beyond (functionality contingent upon compatible iOS release)

Dimensions Table_Image
Height (H) 3.74 in / 95 mm
Width (W) 4.65 in / 118 mm
Depth (D1) 2.36 in / 60 mm
Depth (D2) 3.67 in / 93 mm
Mounting Hole Height (A) 3.12 in / 80 mm
Mounting Hole Width (B) 3.74 in / 95 mm

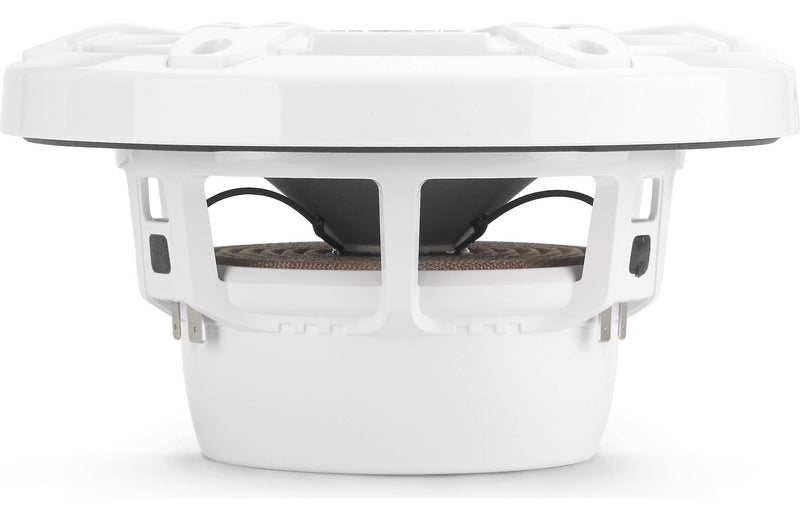

  • 6½" 2-way marine speakers (pair)
  • Injection-molded, mica-filled polypropylene woofer with synthetic rubber surround
  • ¾" silk dome tweeter
  • UV- and corrosion-resistant polymer baskets and grilles
  • Designed for free-air applications (no enclosures needed)
    • for best performance, speaker needs at least 2 cubic feet of airspace
  • Handles up to 60 watts RMS (225 watts peak power)
  • Frequency response: 55-25,000 Hz
  • Sensitivity: 89.5 dB
  • Cutout diameter: 4.972
  • Frame diameter: 6.9
  • Mounting depth: 2.825
  • Warranty: 2 years
Speaker Size 6½"
Design 2-way
Tweeter Design ¾" Dome
Tweeter Composition Silk
Woofer Composition Mica-Filled IMPP
Woofer Surround Rubber
Sensitivity 89.5 dB at 1 watt
Frequency Response 55 - 25k Hz
Max RMS Power Handling 60
Peak Power Handling (Watts) 225
Impedance (Ohms) 4
Top-mount Depth (Inches) 2    ⅞"
Bottom-mount Depth (Inches) N/A
Cutout Diameter or Length (inches) 5"
